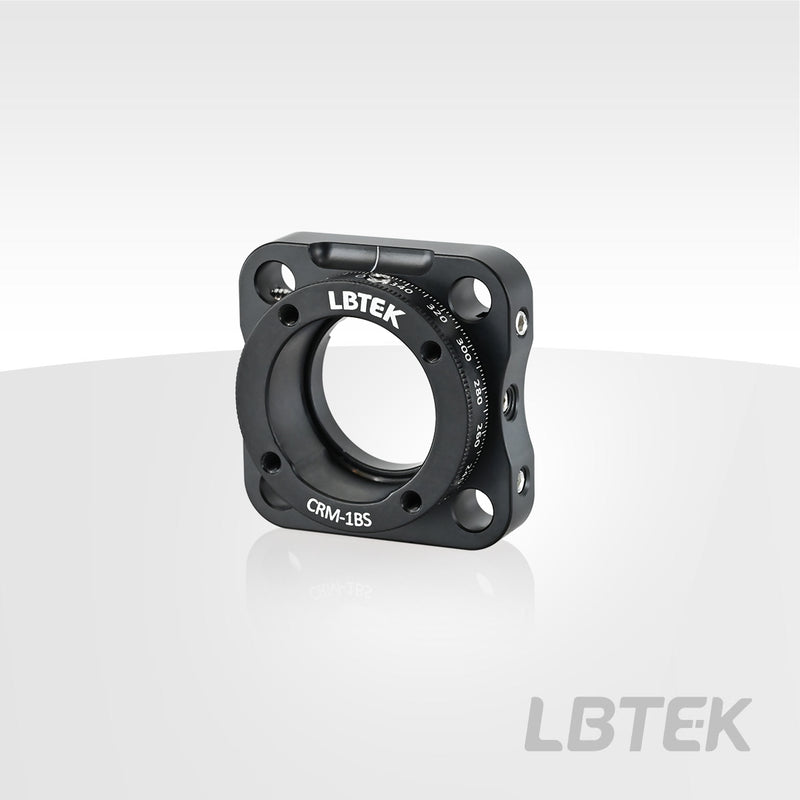

30mm Coaxial System Rotary Adjustment Mount — Model CRM-1BS
✔ In Stock — Ships Today
The CRM-1BS features a smooth inner wall and uses an M4 rubber-tipped set screw to secure optical components with a Ø25.4 mm minimum thickness of 7.9 mm. The mount allows continuous 360° rotation with 2° scale precision, featuring angle markings every 20°. It includes a side M4 locking screw (compatible with 2 mm hex wrench) for rotation locking, and a bottom M4 threaded hole for connecting to posts.
Key Features
- Comes with 2° scale precision, with angle numbers marked every 20°
- Fixed with set screws
- Mounted with Ø25.4 mm optical components
Application
Fastening screw fixation
| Clear Aperture | 23.5 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30mm Coaxial System Rotary Adjustment Mount (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30mm Coaxial System Rotary Adjustment Mount CPRM-1A |
CPRM-1A
| — | — | — | View |
| 30mm Coaxial System Rotary Adjustment Mount CRM-1ADS |
CRM-1ADS
| — | — | — | View |
| 30mm Coaxial System Rotary Adjustment Mount CRM-1BS Current |
CRM-1BS
| — | — | — | |
| 30mm Coaxial System Rotary Adjustment Mount CRM-1AS |
CRM-1AS
| — | — | — | View |
