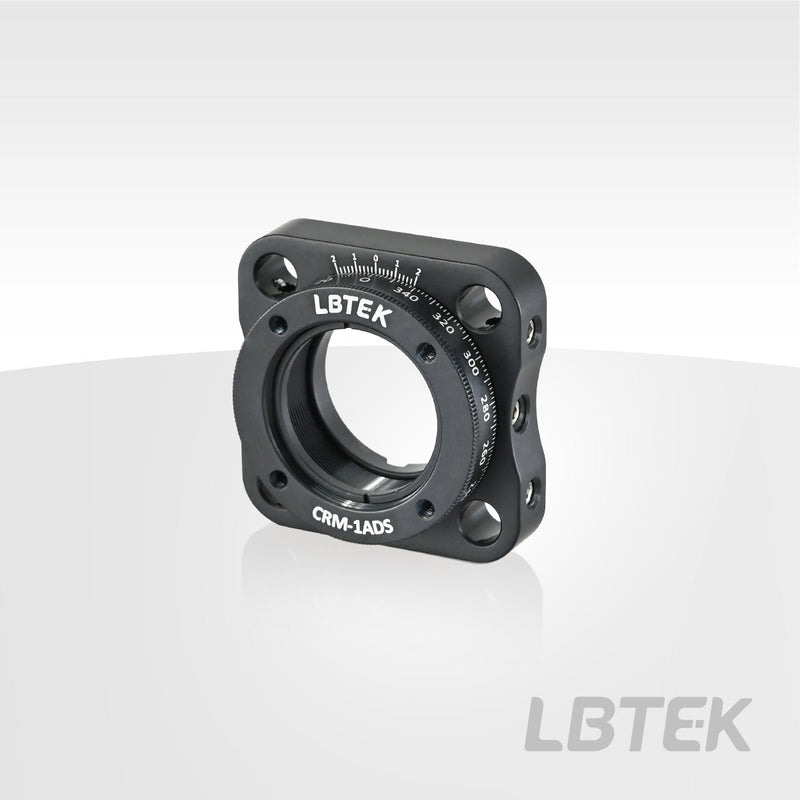

30mm Coaxial System Rotary Adjustment Mount — Model CRM-1ADS
✔ In Stock — Ships Today
The CRM-1ADS features an SM1 internal thread and comes with an SM1R retaining ring to secure optical components with a maximum thickness of 9.4mm. The mount allows continuous 360° rotation with 2° scale markings and numerical angle indicators every 20°. It also includes differential scales with 10 divisions on each side, offering a maximum differential range of 2° and a differential accuracy of 0.2°. An M4 locking screw (2 mm hex wrench) on the side is provided to secure the rotation, while the base has an M4 threaded hole for connecting to mounting posts.
Key Features
- Install Ø25.4mm optical components
- Comes with 2° graduation accuracy, with angle numbers marked every 20°
- With a precision of 0.2° differential accuracy
- Ring-mounted, includes one SM1R retaining ring
- Radial runout, axial runout: ≤30 μm
- Compatible with coaxial systems
Application
Snap-ring fixation
| Clear Aperture | 23.0 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30mm Coaxial System Rotary Adjustment Mount (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30mm Coaxial System Rotary Adjustment Mount CPRM-1A |
CPRM-1A
| — | — | — | View |
| 30mm Coaxial System Rotary Adjustment Mount CRM-1ADS Current |
CRM-1ADS
| — | — | — | |
| 30mm Coaxial System Rotary Adjustment Mount CRM-1BS |
CRM-1BS
| — | — | — | View |
| 30mm Coaxial System Rotary Adjustment Mount CRM-1AS |
CRM-1AS
| — | — | — | View |
