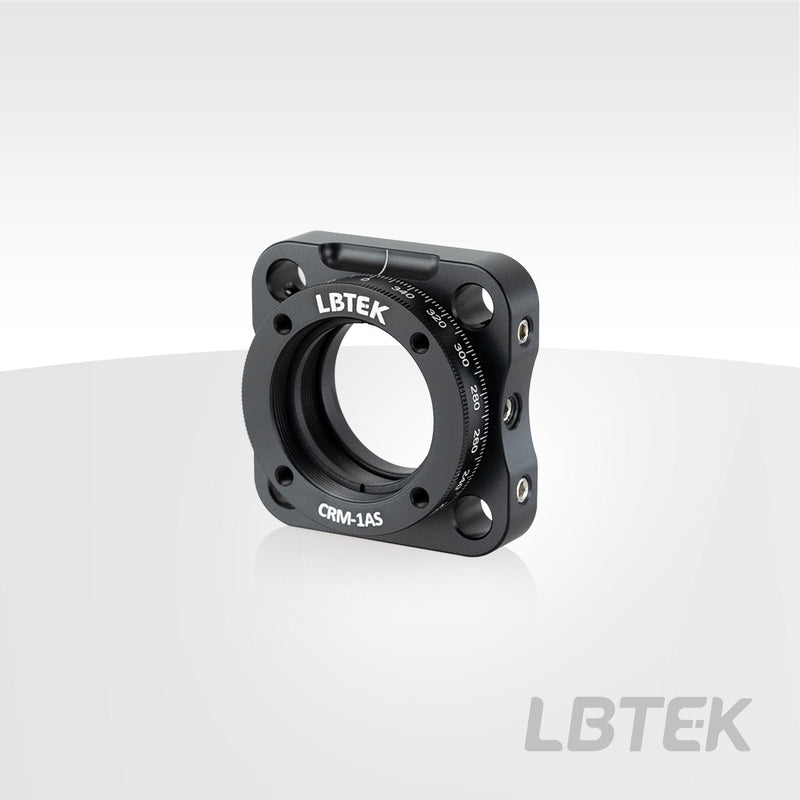

30mm Coaxial System Rotary Adjustment Mount — Model CRM-1AS
✔ In Stock — Ships Today
The CRM-1AS features an SM1 internal thread and includes one SM1R retaining ring for securing optical components up to Ø25.4 mm in diameter with a maximum thickness of 9.4 mm. The mount allows continuous 360° rotation with 2° graduation accuracy, featuring angle markings every 20°. It is equipped with a side M4 locking screw (requiring a 2 mm hex wrench) to secure the rotation, and has an M4 threaded hole at the base for connecting to mounting rods.
Key Features
- Comes with 2° graduation accuracy, with angle numbers marked every 20°
- Ring-locked, includes one SM1R retaining ring
- Compatible with coaxial systems
- Mounted with Ø25.4 mm optic component
Application
Snap ring fixation
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30mm Coaxial System Rotary Adjustment Mount (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30mm Coaxial System Rotary Adjustment Mount CPRM-1A |
CPRM-1A
| — | — | — | View |
| 30mm Coaxial System Rotary Adjustment Mount CRM-1ADS |
CRM-1ADS
| — | — | — | View |
| 30mm Coaxial System Rotary Adjustment Mount CRM-1BS |
CRM-1BS
| — | — | — | View |
| 30mm Coaxial System Rotary Adjustment Mount CRM-1AS Current |
CRM-1AS
| — | — | — |
