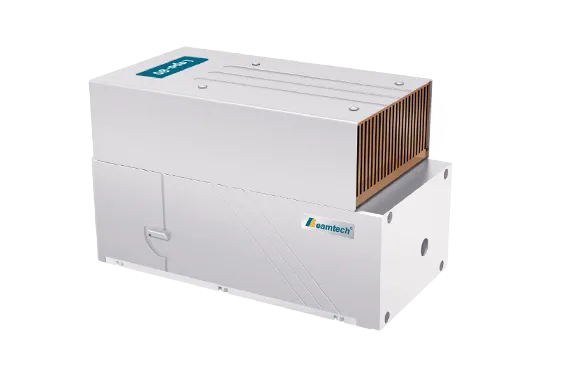

Lapa — Air-Cooled EO Q-Switched Laser

Contact for pricing
Contact Sales

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
RoHS REACH

Air-Cooled EO Q-Switched Laser

The Lapa series lasers are a new generation of air-cooled, DPSS  lasers.They offer fundamental energy output of 100mJ, repetition rates from 1-20Hz, and pulse widths of less than 10ns. Frequency doubling to 532nm, tripling to 355nm, and quadrupling to 266nm are available options. These products feature excellent long-term reliability and environmental adaptability, making them ideal for applications such as LIBS, LiDAR, and panel laser repair.

This series employs uniform pumping technology, conduction cooling technology, and DC power supply, among other innovative solutions, making it a truly portable nanosecond laser source. Suitable for 24/7 continuous operation, it provides new solutions for scientific, industrial, and military applications.

Key Features

  • Compact size, easy for system itegration
  • Diode pumped with 1 billion shots lifetime
  • Air-cooling, without maintenance
  • Pulse energy up to 80mJ@20Hz, 100mJ@10Hz@1064nm
  • Electro-optic Q-switching with low jitter
  • 532,355 and 266nm available
  • Suitable for 24/7 continuous operation
ModelsLapa-80Lapa-100
Repetition Rate1-20Hz1-10Hz
Pulse Energy @ 1064nm80mJ100mJ
Pulse Energy @ 532nm50mJ50mJ
Pulse Energy @ 355nm25mJ25mJ
Pulse Energy @ 266nm10mJ10mJ
Energy Stability (RMS) @ 1064nm≤0.5%≤0.5%
Energy Stability (RMS) @ 532nm≤1%≤1%
Energy Stability (RMS) @ 355nm≤2%≤2%
Energy Stability (RMS) @ 266nm≤3%≤3%
Pulse Width≤8ns≤8ns
Divergence≤1mrad≤1mrad
Pointing Stability≤10μrad≤10μrad
Beam Diameter4.5mm4.5mm
Polarization (1064nm)Linear(Horizontal)Linear(Horizontal)
Jitter (RMS)≤0.5ns≤0.5ns
CoolingAirAir
Power dissipation220W220W
Electrical Service100-240V-50/60Hz-10A, or DC 24V-9.2A100-240V-50/60Hz-10A, or DC 24V-9.2A
1. All specifications, unless otherwise stated, are for Q-switched 1064nm operation and are subject to change without notice;
2. Dev.to average (shot to shot for 99% of pulses). Data is measured at room temperature 15-30℃. For 532nm & 266nm output, the crystal of SHG is KTP with Energy Stability ≤1% at 532nm; For 355nm output, the crystal of SHG is LBO with Energy Stability ≤1.5% at 532nm.
3. Full width half max (FWHM);
4. Full angle measured at 1/e² of the peak;
5. Measured at the laser output;
6. With respect to external trigger;

Source: Beamtech manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.

Specification Sheet PDF — Download
Lapa — Air-Cooled EO Q-Switched Laser — Dimensional Drawing

Lapa — Air-Cooled EO Q-Switched Laser — Dimensional Drawing (click to enlarge)
