Opolite — OPO Tunable Pulsed Laser

OPO Tunable Pulsed Laser

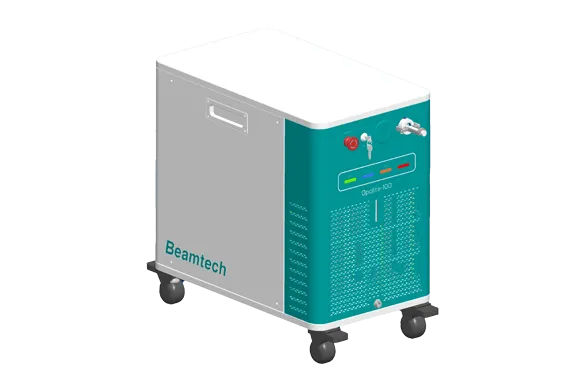

Opolite series lasers are tunable nanosecond lasers mainly used for photoacoustic imaging, laser spectroscopy, LiDAR, and biomedical applications. it uses the reliable Nimma series to pump OPO module. the pumping source, OPO module, power supply, and cooling system are highly integrated into a movable cabinet, providing flexible use for customers.

The Opolite series lasers feature fully automatic control with PC operating software, motorized wavelength switching (arbitrary wavelength switching, signal and idler light switching, pump light switching), real-time energy monitoring and storage, and motorized energy attenuation. Additionally, there are such as fiber interlock, temperature monitoring, and flow monitoring to ensure reliable and safe operation.

Key Features

• Pulse energy: 100-200mJ @ 750nm
• Wide wavelength tuning range: signal 660-1064nm; idler 1100-2300nm
• Low-noise design meets medical environment requirements
• Built-in energy monitoring module and motorized energy attenuator (optional)
• Coaxial output of signal and idler light
• Separate outputs for 1064nm and 532nm (optional)
• Fast wavelength switching
• Portable design with highly integrated pump source, OPO, power supply, and cooling system
• Fiber bundle output or free-space output optional
