Peak-Q-Pro
Beamtech

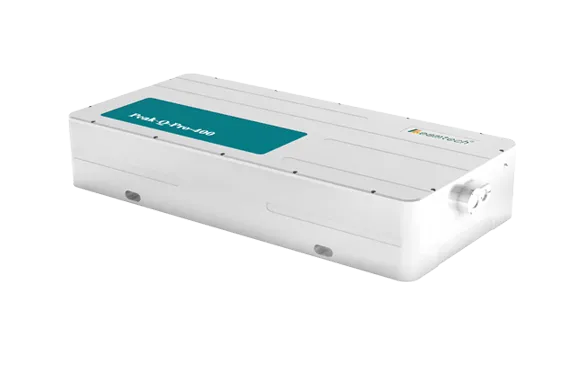

Peak-Q-Pro — Scientific Picosecond Pulse Laser

Contact for pricing
Contact Sales

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
RoHS REACH

Scientific Picosecond Pulse Laser

Peak-Q-Pro is a picosecond laser designed for scientific applications. With a pulse width of <1ns , it offers pulse energy ranging from 200mJ to 1000mJ. Featuring a flat-top uniform spatial distribution mode and high peak power density, Peak-Q-Pro is an ideal choice for applications such as laser-matter interaction, laser-triggered gas switches, and nonlinear optics. Additionally, Peak-Q-Pro employs active Q-switching with a jitter value of less than 1ns, enabling precise synchronization with user application systems. SHG, THG, and FHG harmonics are available.

Utilizing unique single-lamp dual-rod technology and multi-stage amplification design, Peak-Q-Pro is a highly efficient picosecond laser with a very compact structure. The system, including the power supply and water cooling, has a total power consumption of less than 1600W, making it an energy-efficient and space-saving solution for research laboratories.

Key Features

  • Pulse width <1ns, pulse energy ranging from 200mJ to 1000mJ
  • Multiple harmonics available (SHG, THG, and FHG)
  • Perfect flat-top distribution
  • Jitter less than 1ns
ModelsPeak-Q-Pro-200Peak-Q-Pro-400Peak-Q-Pro-1000 @1HzPeak-Q-Pro-1000 @10Hz
Repetition Rate1-10Hz1-10Hz1Hz10Hz
Pulse Energy @ 1064nm200mJ400mJ1000mJ1000mJ
Pulse Energy @ 532nm100mJ200mJ500mJ500mJ
Pulse Energy @ 355nm75mJ150mJ350mJ300mJ
Pulse Energy @ 266nm25mJ50mJ100mJ80mJ
Energy Stability (RMS) @ 1064nm≤3%≤3%≤3%≤3%
Energy Stability (RMS) @ 532nm≤5%≤5%≤5%≤5%
Energy Stability (RMS) @ 355nm≤7%≤7%≤7%≤7%
Energy Stability (RMS) @ 266nm≤7%≤7%≤7%≤7%
Pulse Width<1ns(600ps optional)<1ns(600ps optional)<1ns(600ps optional)<1ns
Beam ProfileFlat-topFlat-topFlat-topFlat-top
Beam Diameter8mm9mm13mm13mm
Divergence≤1mrad≤1mrad≤1mrad≤1mrad
Pointing Stability<50μrad<50μrad<50μrad<50μrad
Jitter (RMS)≤0.5ns≤0.5ns≤0.5ns≤0.5ns
CoolingAir to waterAir to waterchillerchiller
Electrical Service220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A
Power Consumption1200W1500W2000W4000W
1. All specifications, unless otherwise stated, are for Q-Switched 1064nm operation and are subject to change without notice.
2. Dev. to average (shot to shot for 99% of pulses).
3. Full width half max (FWHM).
4. Measured at the laser output.
5. Full angle at 1/e² of the peak.
6. With respect to external trigger.

Source: Beamtech manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.

Specification Sheet PDF — Download
No CAD drawings available for this product.
