C++ band gain-flattened erbium-doped fiber amplifier
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

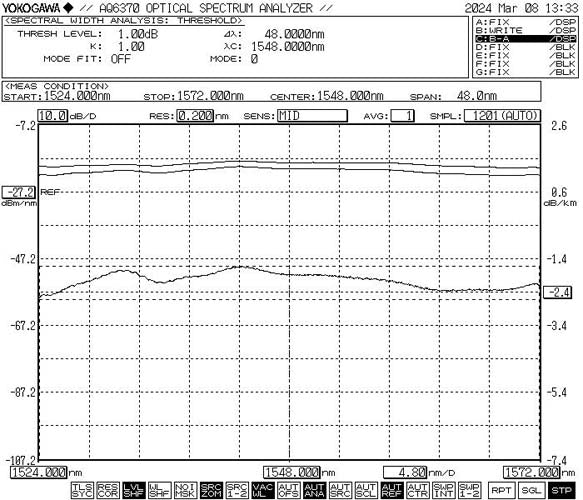

The C++ band gain-flattening erbium-doped fiber amplifier is an optical fiber amplifier product specially used in optical fiber communication systems. It can simultaneously amplify multiple wavelength signals in the C++ band, covering the wavelength range of 1524-1572nm (frequency 190.65~196.675THz), and maintain the same gain between wavelengths, and the gain flatness is ≤1.5 dB. It has the advantages of ultra-wide spectrum, high gain, low noise, and flat gain.
| Models | Specification |
|---|---|
| Wavelength range (nm) | 1524 |
| Single wavelength Input power (dBm) | -16 |
| Total input power | 5 |
| Total Output power (dBm) | 14 |
| Noise figure (dB) | 4.8 |
| Gain flatness (dB) | 1.5 |
| Polarization dependent gain (dB) | <0.3 |
| Polarization mode dispersion (ps) | 0.5 |
| Input/Output isolation (dB) | >35 |
| Optical power monitoring | Output optical power monitoring |
| Pigtail type and connectors | SMF-28 |
| Working mode | ACC/ APC/ AGC |
wavelength range: C++ band
single wavelength Input power: single wavelength power
total input power: 120 wavelengths total power
noise figure: @Pout=24dBm
gain flatness: @8dBm total input
pigtail type and connectors: FC/APC
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
