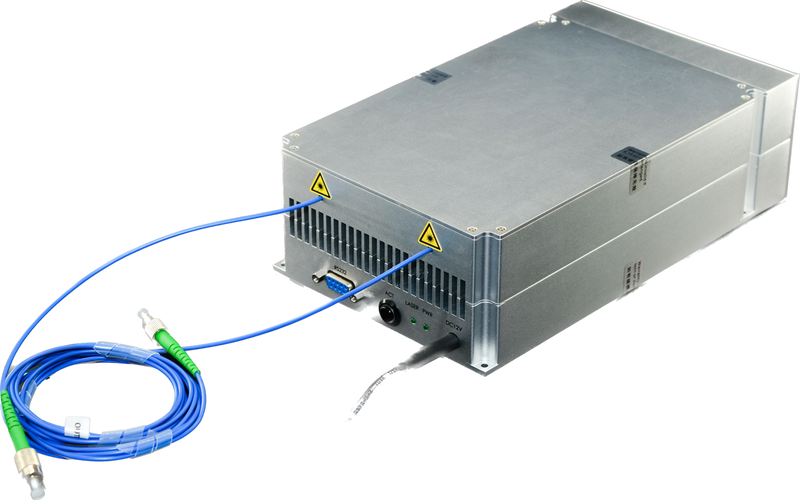

High Power Polarization Maintaining EDFA for L-band
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The high-power polarization-maintaining erbium-doped fiber amplifier is based on the principle of stimulated light amplification of optical signals in erbium-doped fibers. It employs an efficient polarization-maintaining fiber optical amplification design and high-power laser heat dissipation technology to achieve high-power polarization-maintaining output for laser wavelengths ranging from 1570 to 1605nm. With the advantages of high power, high extinction ratio, and low noise, it can be applied in fields such as optical fiber communication and lidar.
Features & Applications
- High output power
- High Gain
- Fully polarization-maintaining optical path
- Applications
- Fiber Communication
- Fiber Sensing
- Lidar
| Models | Specification |
|---|---|
| Operating Wavelength (nm) | 1570~1605 |
| Input signal power (dBm) | -6~+10 |
| Saturated output power (dBm) | 27/ 30/33/35/37/40 |
| Adjustable range of output power | 10%~100% |
| Noise Figure (dB) | <6.0 |
| Extinction Ratio PER (dB) | 23(Type)，20(Min) |
| Input/ O utput Isolation (dB) | >35 |
| Optical power m onitoring | Input optical power monitoring, Output Power |
| Optical Fiber | PM1550 |
| Fiber C onnectors | FC/APC |
| Control Mode | Automatic current control (ACC)/ Automatic power control (APC) |
Operating Wavelength: Other wavelengths c an b e c ustomized
Saturated output power: @ 0 dBm Input
Noise Figure: @ 0 dBm Input
Fiber C onnectors: For power testing only
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
