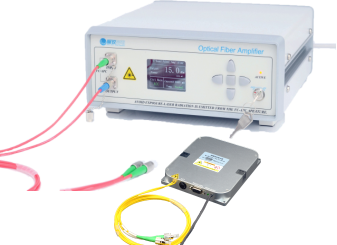

Erbium-doped Fiber In-Line Amplifier for C-band
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Erbium-doped Fiber Line Amplifier (abbreviated as LA Amplifier) is a dedicated optical power amplifier product used for line relay in fiber laser or fiber communication systems. It combines the advantages of both PA (Pre-Amplifier) and BA (Booster Amplifier) amplifiers, providing high gain for small signals and high output power. It features high gain, high launch power, and low noise, making it suitable for use between fiber segments to increase relay length or in the corresponding point-to-multipoint section of optical access networks to compensate for branching loss.
Features & Applications
- Low Noise
- Fiber Communication
- High Gain
- Fiber Sensing
- High output power
- Fiber Laser
| Models | Specification |
|---|---|
| Operating Wavelength (nm) | 1530~1565 |
| Input signal power (dBm) | -25 ~ -3 |
| Saturated output power (dBm) | 13/17/ 20/ 23/25/26 |
| Small signal gain coefficient (dB) | 35 |
| Noise Figure (dB) | 5.5 |
| Polarization dependent gain (dB) | ≤ 0.3 |
| Polarization mode dispersion (ps) | 0.5 |
| Input/Output Isolation (dB) | >35 |
| Optical power monitoring | Output Power |
| Optical fiber and connectors | SMF-28，FC/APC |
| Control Mode | Automatic current control (ACC)/ Automatic power control (APC) |
Operating Wavelength: C-band
Saturated output power: @-10dBm Input
Small signal gain coefficient: @-25dBm Input
Noise Figure: @-10dBm Input
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
