Polarization Maintaining Erbium-doped Fiber Amplifier for C-band
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

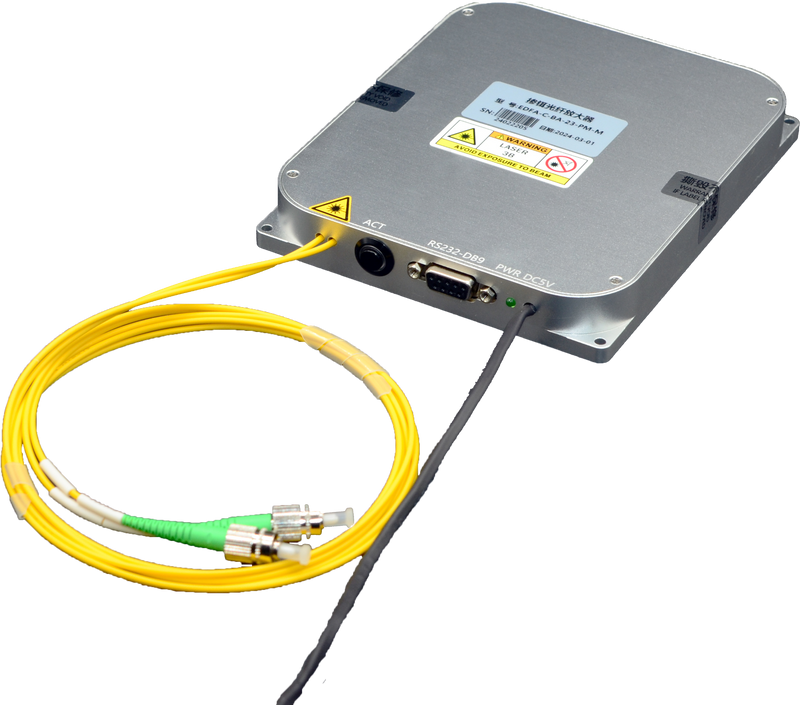

Polarization-Maintaining Erbium-Doped Fiber Amplifier (EDFA-PM) is a series of fiber amplifier products specifically designed for polarization-maintaining fiber systems. It boasts the advantages of full polarization maintenance, high gain, and high power. It supports software control from a host computer, and its compact size facilitates integration. Depending on customer needs, it can be provided in desktop or modular packaging, and is open to customized parameters.
Features & Applications
- High Gain
- Fiber Communication
- High output power
- Fiber Sensing
- High polarizatioextinctioratio
- Fiber Laser
| Models | Small signal amplifier (SSA) PA | Power Amplifier (PA) BA | Line Amplifier (LA) |
|---|---|---|---|
| Operating Wavelength (nm) | 1530~1565 | 1530~1565 | 1530~1565 |
| Input signal power (dBm) | -45 ~-25 | -6~+3 | -25~-3 |
| Saturated output power (dBm) | 14 | ||
| Small signal gain c oefficient (dB) | ≥ 30/35/45 | ≥ 25 | ≥25 |
| Noise Figure (dB) | ≤ 5 | ≤ 5 | ≤5 |
| Extinction Ratio PER (PER) (dB) | 23(Type)，20(Min) | 23(Type)，20(Min) | 23(Type)，20(Min) |
| Input/ O utput Isolation (dB) | >35 | >35 | >35 |
| Optical power m onitoring | Output Power | Output Power | Output Power |
| Optical f iber and connectors | PM1550 ， FC/APC | PM1550 ， FC/APC | PM1550 ， FC/APC |
| Control Mode | Automatic current control (ACC)/ Automatic power control (APC) | Automatic current control (ACC)/ Automatic power control (APC) | Automatic current control (ACC)/ Automatic power control (APC) |
Extinction Ratio PER (PER): Operating in slow axis, Blocking in fast axis
Optical f iber and connectors: Alignment in slow axis
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
