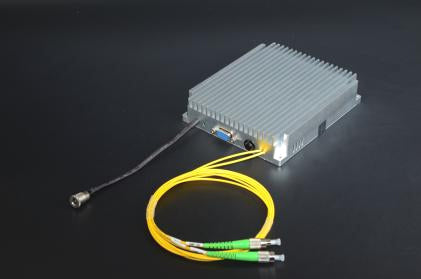

Pulsed Erbium-doped Fiber Amplifier
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The pulsed erbium-doped fiber amplifier (EDFA) is a series of fiber amplifier products specifically designed for low-repetition-rate nanosecond laser pulses. It boasts the advantages of high gain and low noise, capable of outputting high-peak-power laser pulses while minimizing the nonlinear effects in fibers. It supports control by host computer software and can be offered in desktop or modular packaging.
Features & Applications
- Short pulse amplification
- Fiber Sensing
- High peak power
- Lidar
- Customizable
- Fiber Laser
| Models | Specification |
|---|---|
| Operating Wavelength (nm) | 1530~1565 |
| Input signal spectral linewidth (MHz) | ≥1 |
| Pulse W idth (ns) | 1 ~50 |
| Pulse F requency (kHz) | 1~1000 |
| Input optical pulse peak (mW) | 1~10 |
| Output optical pulse peak (W) | 1~1000 |
| Noise Figure (dB) | 5.5 |
| Extinction Ratio PER (PER) (dB) | ≥23 |
| Polarization d ependent gain (dB) | - |
| Polarization m ode d ispersion (ps) | - |
| Input/ O utput Isolation (dB) | >35 |
| Optical Fiber | PM1550 |
| Fiber C onnectors | FC/APC |
| Control Mode | Automatic c urrent c ontrol (ACC) |
Output optical pulse peak: Based on pulse width and repetition frequency
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
