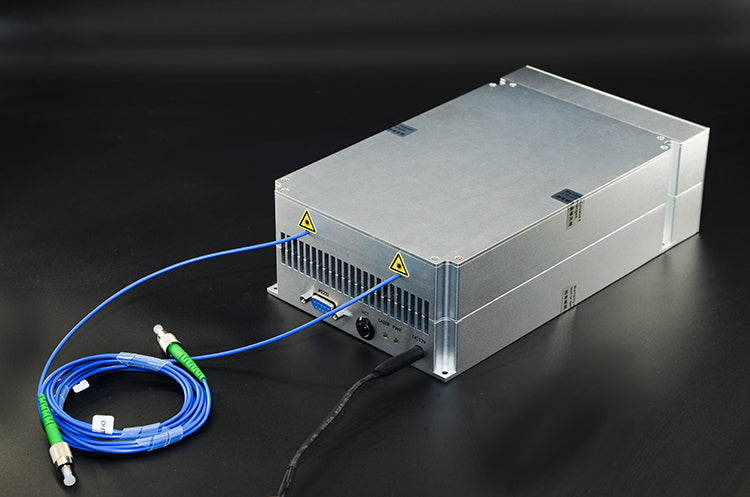

High-Power Polarization Maintaining EDFA for C-band The C-band high-power polarization-maintaining erbium-doped fiber amplifier (PM-EDFA) is based on the principle of stimulated light amplification of optical signals in erbium-doped fibers. It utilizes a unique multi-stage optical amplification design and a reliable high-power laser heat dissipation technology to achieve high-power polarization-maintaining output for laser light within the wavelength range of 1535~1565nm. This amplifier boasts advantages such as high power, high extinction ratio, and low noise, making it suitable for applications in optical fiber communication, lidar, and more.
Features & Applications
- High output power (up to 10 watts)
- Fiber Communication
- High Gain
- Fiber Sensing
- High polarizatioextinctioratio
- Lidar
| Models | Specification |
|---|---|
| Operating Wavelength (nm) | 1535 ~1565 |
| Input signal power (dBm) | -6~+10 |
| Saturated Output power (dBm) | 27/ 30/33/35/37/40 |
| Adjustable range of output power | 10%~100% |
| Noise Figure (dB) | <6.0 |
| Extinction Ratio PER (PER) (dB) | 23(Type)，20(Min) |
| Input/ O utput Isolation (dB) | >35 |
| Optical power m onitoring | Input optical power monitoring, Output power |
| Optical Fiber | PM1550 |
| Fiber C onnectors | FC/APC |
| Control Mode | Automatic current control (ACC)/ Automatic power control (APC) |
Operating Wavelength: Other wavelengths can be customized
Saturated Output power: @0dBm Input
Noise Figure: @0dBm Input
Fiber C onnectors: For power testing only
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
