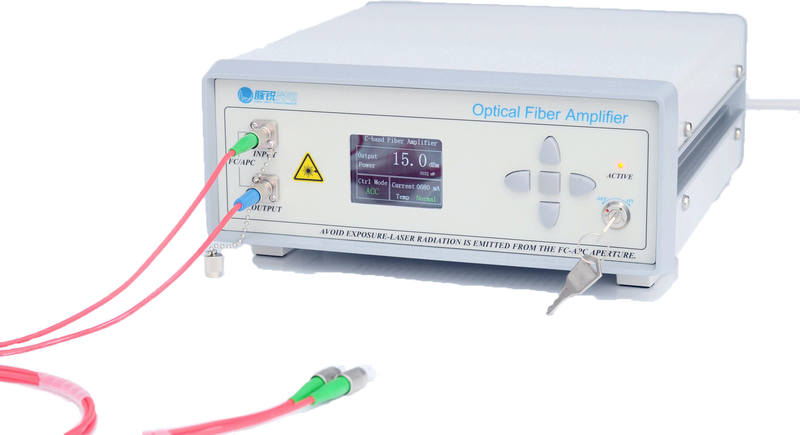

Erbium-doped Fiber Booster Amplifier for C-band
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Erbium-Doped Fiber Power Amplifier (abbreviated as BA Amplifier) is used to amplify optical signals within the power range of -6dBm to +3dBm or higher. It has a maximum saturated output power of 26dBm and is commonly used to increase the launch power of laser sources.
Features & Applications
- Wide operating wavelength
- Fiber Communication
- High output power
- Fiber Sensing
- Low Noise
- Fiber Laser
| Models | Specification |
|---|---|
| Operating Wavelength (nm) | 1530~1565 |
| Input signal power (dBm) | -6~+3 |
| Saturated output power (dBm) | 15/17/20/23/25/26 |
| Noise Figure (dB) | ≤ 5.0 |
| Polarization dependent gain (dB) | ≤ 0.3 |
| Polarization mode dispersion (ps) | ≤ 0.5 |
| Input/Output Isolation (dB) | >35 |
| Optical power monitoring | Output Power |
| Optical fiber and connectors | SMF-28，FC/APC |
| Control Mode | Automatic current control (ACC)/ Automatic power control (APC) |
Operating Wavelength: C-band
Saturated output power: @-3dBm Input
Noise Figure: @-3dBm Input
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
