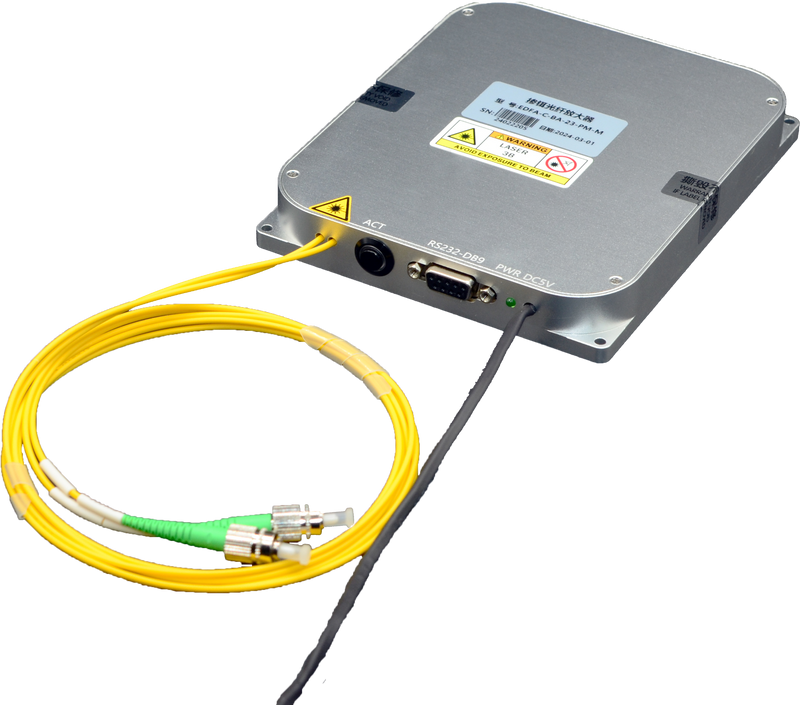

Erbium-doped Fiber Pre-Amplifier for C-band
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
C-band (* Note 1) erbium doped fiber Pre-amplifier (PA amplifier for short) is an amplifier specially used for weak optical signals in the range of -45dbm ~ -25dBm. The typical gain of small signal is as high as 35 ~ 45 dB and has low noise figure. It is usually used before a photodetector to improve its detection ability for weak optical signals.
Features & Applications
- Wide operating wavelength
- Fiber Communication
- High Gain
- Fiber Sensing
- Low Noise
- Fiber Laser
| Models | EDFA-PA-35 (Pre-Amp) | EDFA-PA-45 (Pre-Amp) |
|---|---|---|
| Operating Wavelength (nm) | 1530~1565nm | 1530~1565nm |
| Input signal power (dBm) | -35~-25 | -45~-25 |
| Small signal gain (dB) | 35 @-35dBm Input | 45 @-45dBm Input |
| Noise Figure (dB) | ≤ 4.5 | ≤ 4.5 |
| Polarization dependent gain (dB) | ≤ 0.3 | ≤ 0.3 |
| Polarization mode dispersion (ps) | ≤ 0.5 | ≤ 0.5 |
| Input/ Output Isolation (dB) | >35 | >35 |
| Optical power monitoring | Output Power | Output Power |
| Optical fiber and connectors | SMF-28 ， FC/APC | SMF-28 ， FC/APC |
| Control Mode | Automatic Current Control （ ACC ) | Automatic Current Control （ ACC ) |
Operating Wavelength: C-band
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
