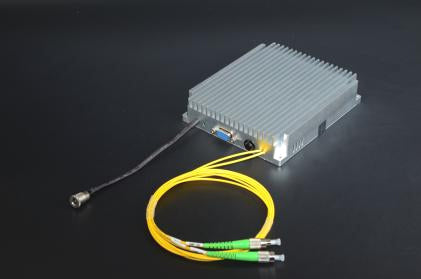

Erbium-doped Fiber Booster Amplifier for L-band
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The L-band erbium-doped fiber amplifier (EDFA) is a dedicated optical power amplifier product series specifically designed for fiber lasers or fiber-optic communication systems. With an operating wavelength range covering from 1570 to 1603 nm, it offers the advantages of high gain and low noise.
Features & Applications
- Covering the L-band
- Fiber Communication
- High Gain
- Fiber Sensing
- High output power
- Fiber Laser
| Models | Specification |
|---|---|
| Operating Wavelength (nm) | 1570~1605 |
| Input signal power (dBm) | -6~+3 |
| Saturated output power (dBm) | 15/17/20/23/25/26 |
| Noise Figure (dB) | 5.0 |
| Extinction Ratio PER (PER) (dB) | ≥23 |
| Input/ O utput Isolation (dB) | >35 |
| Optical power m onitoring | Output Power |
| Optical Fiber | PM1550 |
| Fiber C onnectors | FC/APC |
| Control Mode | Automatic current control (ACC)/ Automatic power control (APC) |
Operating Wavelength: L -band
Saturated output power: @-3dBm Input
Noise Figure: @-3dBm Input
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
