MR Photonics

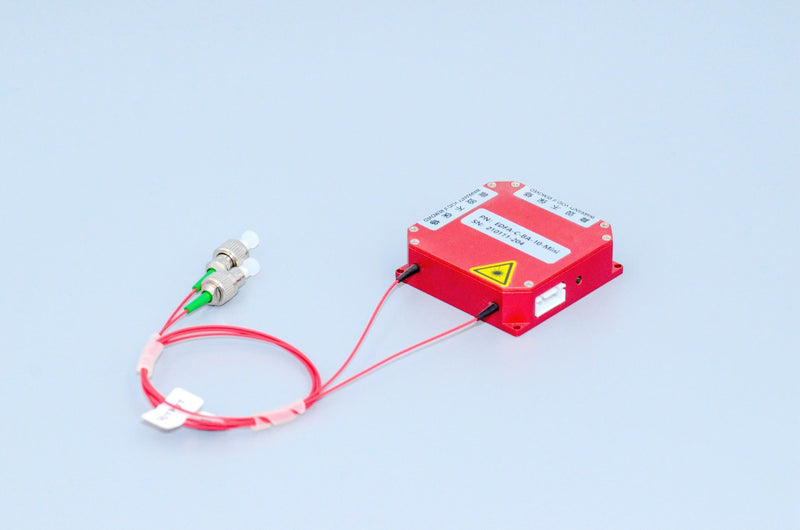

Erbium-doped Fiber Booster Amplifier Module in Micro Format
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The erbium-doped fiber power amplifier micro-module can be used for power amplification of laser signals within the wavelength range of 1530~1565nm. It adopts a unique miniaturized packaging design, featuring high gain, low noise, and small size, making it ideal for applications in confined spaces.
Features & Applications
- Wide operating wavelength
- Fiber Communication
- Ultra-compact design
- Fiber Sensing
- Low Noise
- Fiber Laser
| Models | Specification |
|---|---|
| Operating Wavelength (nm) | 1530~1565 |
| Input signal power (dBm) | -6~+3 |
| Saturated output power (dBm) | 10/13/17/20/23 |
| Noise Figure (dB) | 5.0 |
| Polarization dependent gain (dB) | ≤ 0.3 |
| Polarization mode dispersion (ps) | 0.5 |
| Input/Output Isolation (dB) | >35 |
| Optical power monitoring | Output Power |
| Optical fiber and connectors | SMF-28，FC/APC |
| Control Mode | Automatic current control (ACC)/ Automatic power control (APC) |
Operating Wavelength: C-band
Saturated output power: @-3dBm Input
Noise Figure: @-3dBm Input
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
