WaveQuanta

Handheld Laser Power Meter HLPM

HLPM
$896.36
In Stock
Key Specifications
Wavelength 400.0nm
Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

HLPM

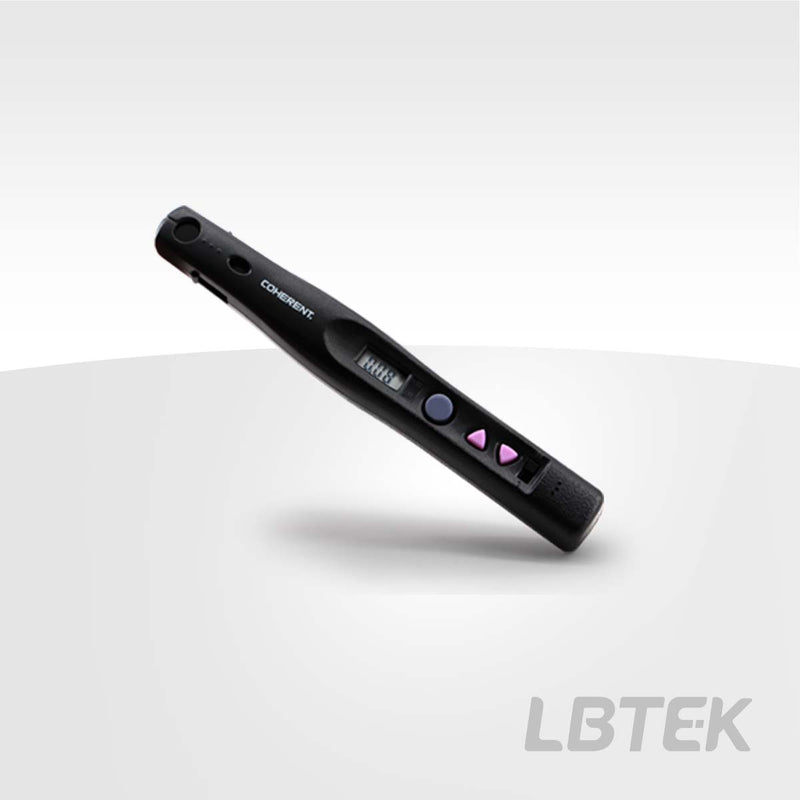

Handheld Laser Power Meter — portable handheld optical power meter with LCD display

Key Features

  • Aperture: Ø8 mm
  • Wavelength Range: 400 nm-1064 nm
  • Accuracy: ±8%
  • Power Range: 9.99 µW~999 mW
  • Resolution: 0.01 µW
  • Noise Level: 3-10 µW
Effective apertureØ8 mm
Operating Wavelength400 nm-1064 nm
Measurement accuracy±8%
Power range9.99 µW~999 mW
Minimum Power Resolution0.01 µW
Noise Equivalent Power (NEP)3-10 µW
Maximum measurable power (without attenuator)10 mW
Maximum measurable power (with attenuator)1 W
Maximum measurable power density (without attenuator)0.5W/cm2
Built-in attenuator enabled for maximum measurable power density30 W/cm2
Display3-digit LCD display with power indicator
Operating modeManual
Auto shutoff time10 s
Battery life1,000 h
Size168 mm×24 mm×20 mm
weight44 g
SensorEmbedded silicon photodiode
Measurable parametersPower
Specification Sheet PDF — Download
User Manual PDF
Lead Time: 0.0 week0.0s
CAD Drawing Download
3D Model (STL) STL — Download

Product Family: Optical Power Meter and Energy Meter (40 variants)
