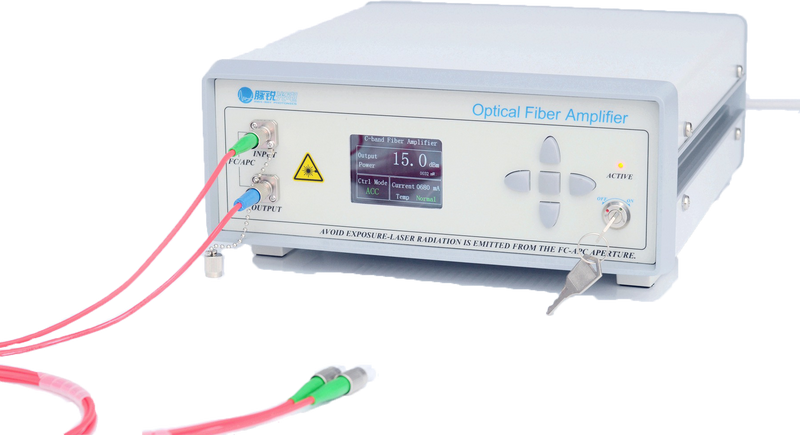

High Power Single-Mode Erbium-doped Fiber Amplifier for C-band
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
High Power Erbium-Ytterbium Co-Doped Fiber Amplifier (EYDFA-HP) is based on the principle of stimulated light amplification of optical signals in erbium-ytterbium co-doped fibers. It utilizes a uniquely designed optical path structure and reliable high-power laser heat dissipation technology to achieve high-power laser output within the Operating Wavelength of 1535~1565nm. With the advantages of high power and low noise, it can be used in fiber optic communications, lidar, and other applications.
Features & Applications
- Maximum power of up to 10 watts
- Fiber Communication
- High Gain
- Fiber Sensing
- Wide operating wavelength
- Fiber Laser
| Models | Specification |
|---|---|
| Operating Wavelength (nm) | 1535 ~1565 |
| Input signal power (dBm) | -6~+10 |
| Saturated output power (dBm) | 27/30/33/35/37/40 |
| Adjustable range of output power | 10%~100% |
| Noise Figure (dB) | <6.0 |
| Gain wavelength non-uniformity (dB) | ≤1 |
| Polarization dependent gain (dB) | ≤ 0. 5 |
| Polarization mode dispersion (ps) | 0.5 |
| Input/Output Isolation (dB) | >35 |
| Optical power monitoring | Input、Output power |
| Optical fiber and connectors | SMF-28 , FC/APC |
| Control Mode | Automatic current control (ACC)/ Automatic power control (APC) |
Saturated output power: @-3dBm Input
Gain wavelength non-uniformity: @For different wavelengths
Optical fiber and connectors: For power testing only
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
