Motorized Linear Translation Stages EM-LSS65-50C1

EM-LSS65-50C1
$2,490.40
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS REACH

The Motorized Linear Translation Stages EM-LSS65-50C1 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.

✔ In Stock — Ships Today

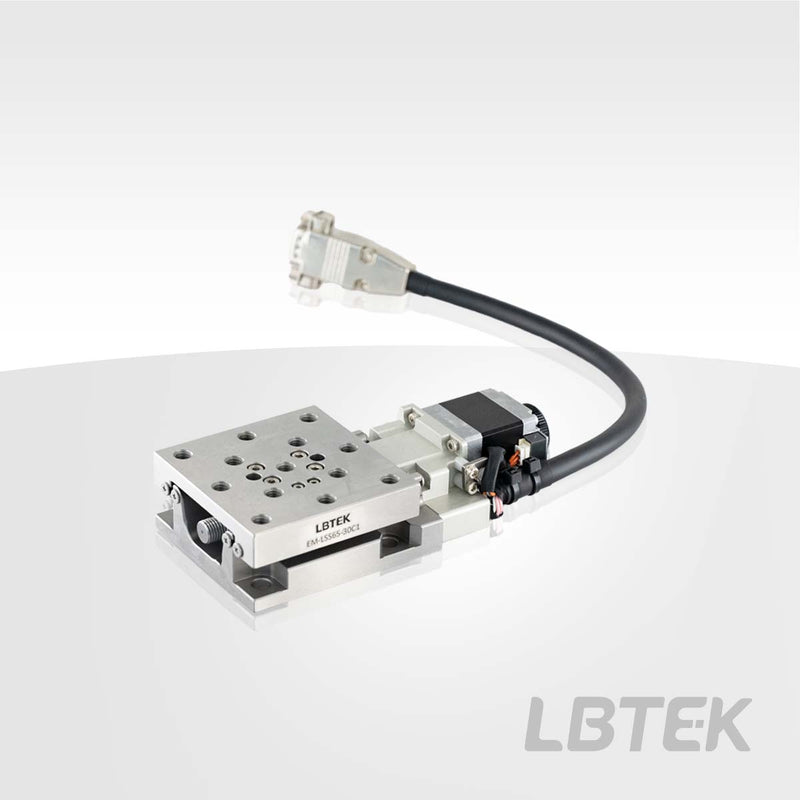

The LBTEK 65 series stainless steel motorized linear stage features a table size of 65 mm × 65 mm, with three linear travel options of 13 mm/30 mm/50 mm. Driven by a stepper motor and ball screw mechanism, the stage achieves precise motion control through linear ball guides. The bottom is equipped with M6 countersunk holes, allowing installation onto optical tables or custom-assembled stage modules using the included M6 low-profile hex socket screws. The table surface has M6 threaded holes spaced 25 mm apart, enabling the assembly of various optical components according to user requirements, and can be used in conjunction with EM-LSS65VA or EM-LSS65VB. The stainless steel motorized linear stage requires an motorized stage controller for operation, with LBTEK offering EM-CV5-x or EM-CS5-x series controllers for user to choose.

Key Features

  • Table size: 65 mm × 65 mm
  • Stroke: 13 mm, 30 mm or 50 mm
  • Resolution: 0.5 μm/division or 1 μm/division
  • Stainless steel structure with good strength and rigidity

Application

EM-LSS65-30C1 Structural Diagram

Material Stainless steel
Surface Treatment Nickel plating
Tabletop size 65 mm×65 mm
Load Capacity 7 kgf
stroke 50 mm
Hex Key Wrenches Included 4 M6 flat head hex socket screws
Resolution 0.5 μm/subdivision
Motor Type Five-phase stepper motor
Drive Mechanism Ball screw
Bearing Configuration Linear Ball Guide
Adjustment Speed Up to 20 mm/s
Backlash 3 μm
Position Accuracy 10 μm
Wobble 15 μm
Angular Resolution ±1 μm
Bidirectional Repeatability 3 μm
Thread hole specifications M6 threaded holes with a spacing of 25 mm and its multiples
Weight 2.3 kgf
