Motorized Linear Translation Stages EM-LSS90VE

EM-LSS90VE
$272.52
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS REACH

The Motorized Linear Translation Stages EM-LSS90VE from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.

✔ In Stock — Ships Today

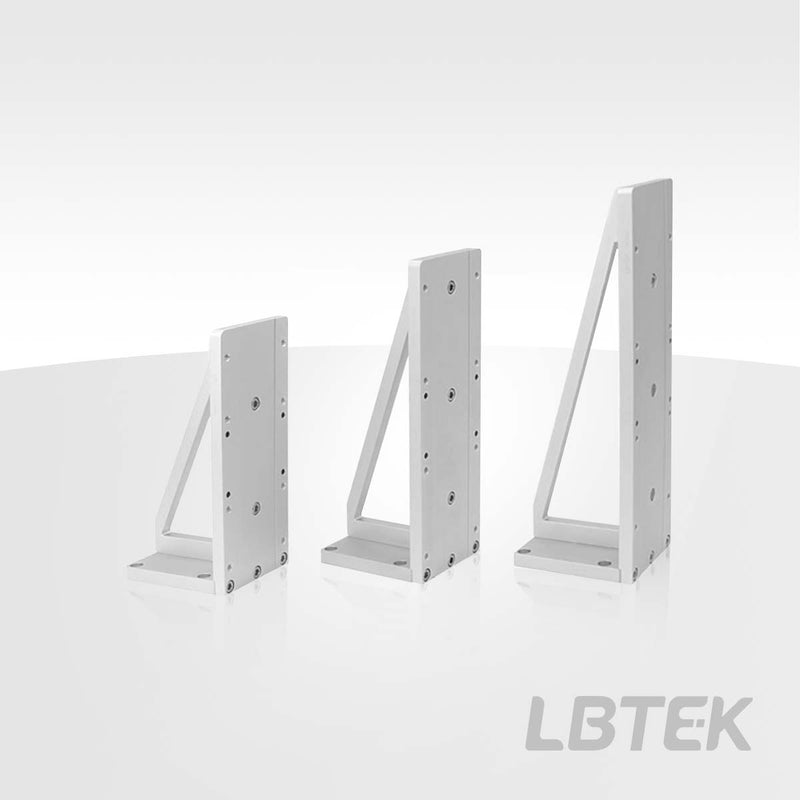

The 90 mm three-axis adapter plate provided by LBTEK features M6 threaded holes and M6 countersunk mounting holes, suitable for EM-LSS90-100C1, EM-LSS90-150C1, and EM-LSS90-200C1 motorized translation stages. It is commonly used for vertically mounting two translation stages. An XY-axis motorized translation stage and a single-axis motorized translation stage can be combined into an XYZ-axis linear translation stage using a right-angle adapter plate. Similarly, two single-axis motorized translation stages can be assembled into an XZ-axis linear translation stage with a right-angle adapter plate.

Key Features

  • Able to construct XYZ-axis translation stages
  • Mounting hole specifications: M6 threaded holes, M6 countersunk holes
  • Surface treatment: Natural anodizing

Application

The EM-LSS90 series three-axis adapter is commonly used for assembling XYZ-axis translation stages.

Size 270 mm×90 mm×110 mm
Material 6061-T6 Aluminum Alloy
Surface Treatment Natural anodizing
Tabletop size 270 mm×90 mm
Hex Key Wrenches Included M6 Hexagon Socket Head Cap Screw and Parallel Pin Ø5*10
Mounting hole specifications M6 threaded hole/M6 countersunk hole
No documents available for this product.
No CAD drawings available for this product.
