Motorized Linear Translation Stages EM-LSS90-200C1

EM-LSS90-200C1
$3,410.22
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS REACH

The Motorized Linear Translation Stages EM-LSS90-200C1 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.

✔ In Stock — Ships Today

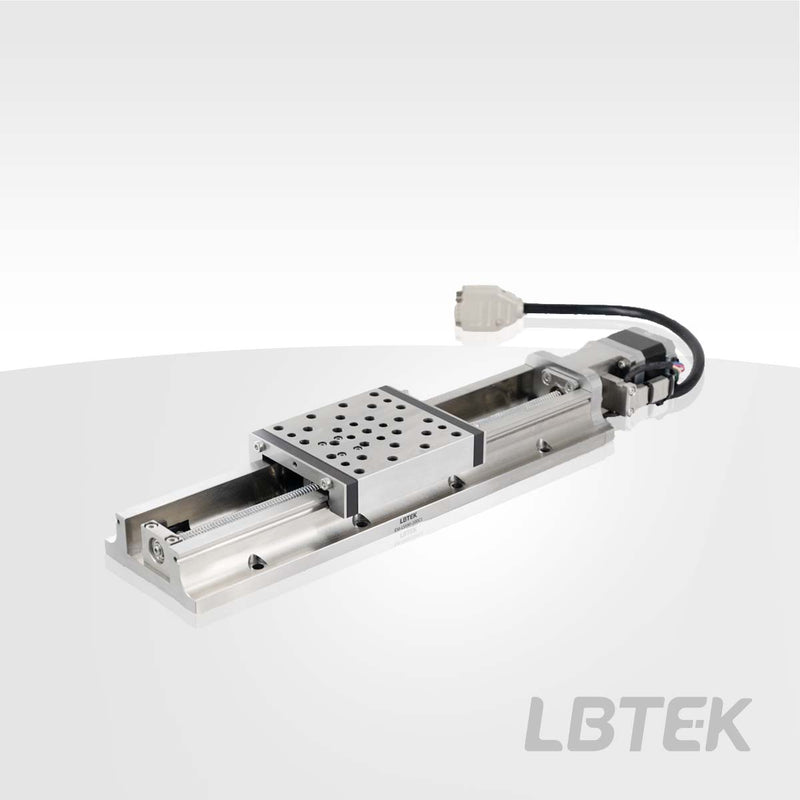

The LBTEK 90 Series stainless steel motorized linear translation stage features a table size of 90 mm × 90 mm, with four linear travel options: 100 mm, 150 mm, 200 mm, and 300 mm. It is driven by a stepper motor and a ball screw mechanism, enabling precise motion control through linear ball bearings. The bottom is equipped with M6 countersunk holes, allowing installation onto optical tables or custom-built translation stage modules using the included M6×20 hex socket head cap screws. The table surface has M6 threaded holes spaced 25 mm apart, facilitating the mounting of various optical components as per user requirements. It can be paired with models such as EM-LSS90VB and EM-LSS90VA. The stainless steel motorized linear translation stage requires an motorized translation stage controller for operation. LBTEK offers the EM-CV5-x or EM-CS5-x series controllers for user to choose.

Key Features

  • Table size: 90 mm × 90 mm
  • Stroke: 100 mm, 150 mm, 200 mm or 300 mm
  • Resolution: 1 μm/division
  • Stainless steel structure with good strength and rigidity

Application

EM-LSS90-100C1 Structural Diagram

Material Stainless steel
Surface Treatment Nickel plating
Tabletop size 90 mm×90 mm
Load Capacity 20 kgf
stroke 200 mm
Hex Key Wrenches Included 8 M6×20 hexagon socket head cap screws
Resolution 1 μm/division
Motor Type Five-phase stepper motor
Drive Mechanism Ball screw
Bearing Configuration Linear Ball Guide
Adjustment Speed 40 mm/s
Backlash ＜3 μm
Position Accuracy 10 μm
Wobble 15 μm
Angular Resolution ±1.5 μm
Bidirectional Repeatability 20 μm
Thread hole specifications M6 threaded holes with a spacing of 25 mm and its multiples
Weight 5 kgf
