Motorized Linear Translation Stages EM-LSS90VD
EM-LSS90VD$144.38
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Motorized Linear Translation Stages EM-LSS90VD from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

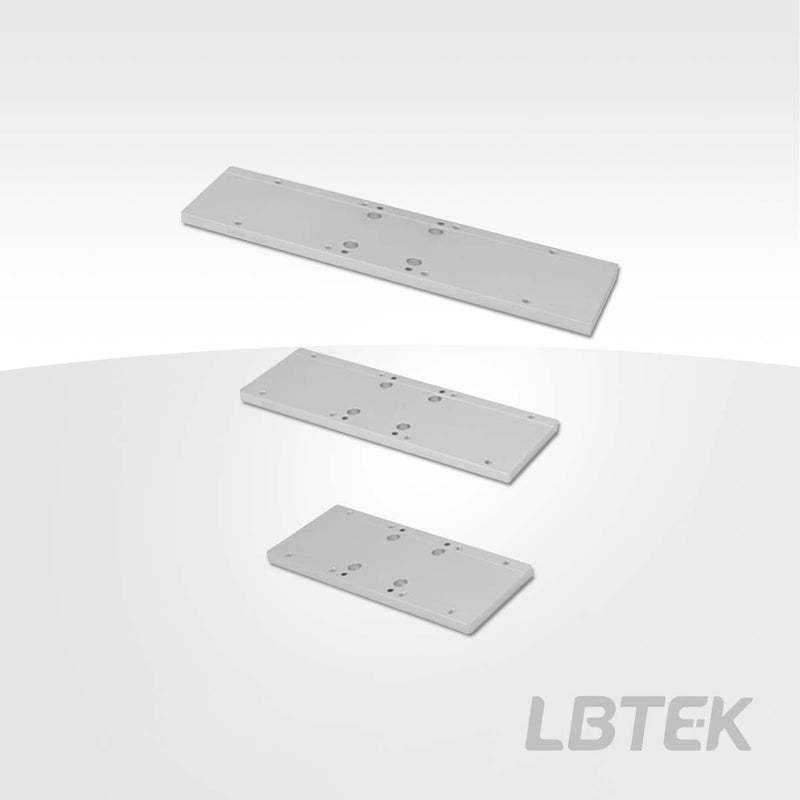

The 90 mm dual-axis adapter plate provided by LBTEK features 8 M6 threaded holes and 4 M6 countersunk mounting holes, suitable for EM-LSS90-100C1, EM-LSS90-150C1, and EM-LSS90-200C1 motorized translation stages. It is commonly used for vertically crossing and horizontally mounting two translation stages. By using the dual-axis adapter plate, an XY-axis linear translation stage can be constructed. Alternatively, the XY-axis linear translation stage can also be directly assembled from two individual linear translation stages. The dual-axis adapter plate can be selected based on specific requirements.
Key Features
- Able to construct XY-axis translation stage
- Mounting hole specifications: M6 threaded holes, M6 countersunk holes
- Surface treatment: Natural anodized
Application
The EM-LSS90 series two-axis adapter is commonly used for assembling XYZ-axis translation stages.
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Natural anodizing |
| Size | 320 mmĆ90 mmĆ10 mm |
| Tabletop size | 320 mmĆ90 mm |
| Attribute 2193 | M6 Hexagon Socket Head Cap Screw and Parallel Pin Ć5*10 |
| Mounting hole specifications | M6 threaded hole/M6 countersunk hole |
No CAD drawings available for this product.
