Motorized Linear Translation Stages EM-LSS65VB
EM-LSS65VB$201.78
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Motorized Linear Translation Stages EM-LSS65VB from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

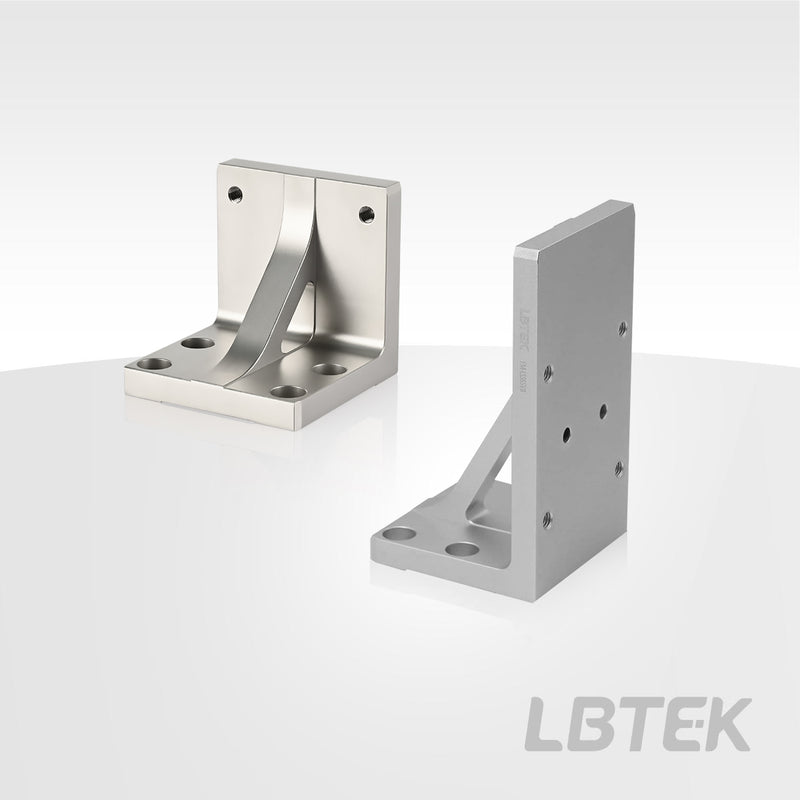

The 65 mm right-angle triaxial adapter plate from LBTEK features four M6 tapped holes and four M6 countersunk mounting holes, compatible with EM-LSS65-50C1, EM-LSS65-30C1, and EM-LSS65-13C1 motorized translation stages. This component enables vertical integration of two translation stages: combining an XY-axis motorized translation stage with a single-axis motorized stage forms an XYZ linear translation stage, while connecting two single-axis motorized translation stages creates an XZ linear translation stage with the right-angle adapter plate.
Ā
Key Features
- Main materialļ¼Stainless steel or aluminum alloy
- Surface treatment: Passivation or natural anodization
- Mounting hole specifications: M6 tapped hole, M6 countersunk hole
Application
EM-LSS65VA is typically employed in XYZ-axis translation stage assemblies.
| Lead Time | In Stock |
CAD Drawing
Download
