Motorized Linear Translation Stages EM-LSS90VF

EM-LSS90VF
$324.22
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS REACH

The Motorized Linear Translation Stages EM-LSS90VF from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.

āœ” In Stock ā€” Ships Today

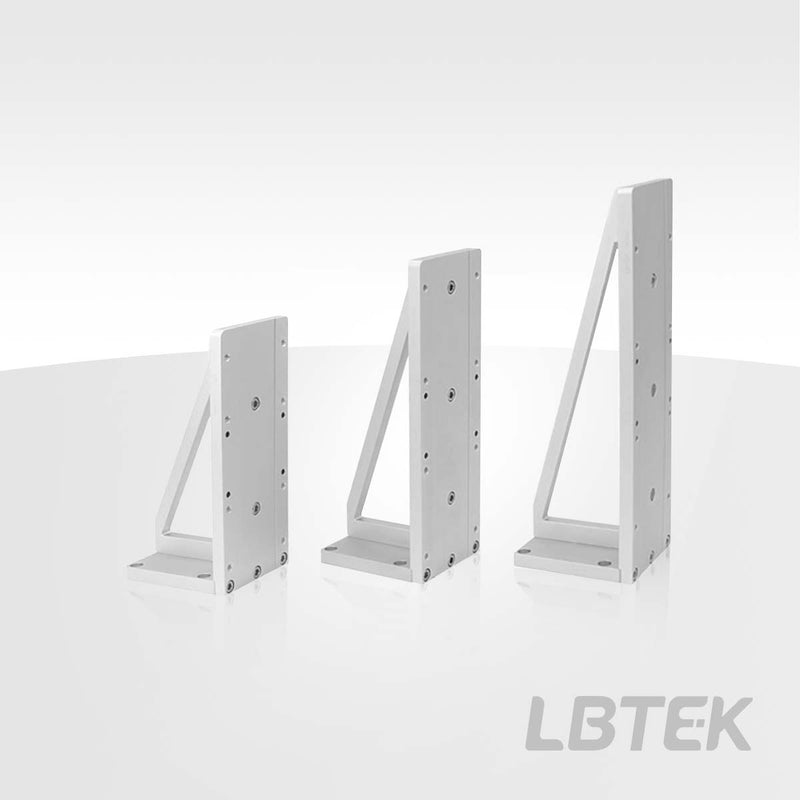

The 90 mm three-axis adapter plate provided by LBTEK features M6 threaded holes and M6 countersunk mounting holes, suitable for EM-LSS90-100C1, EM-LSS90-150C1, and EM-LSS90-200C1 motorized translation stages. It is commonly used for vertically mounting two translation stages. An XY-axis motorized translation stage and a single-axis motorized translation stage can be combined into an XYZ-axis linear translation stage using a right-angle adapter plate. Similarly, two single-axis motorized translation stages can be assembled into an XZ-axis linear translation stage with a right-angle adapter plate.

Key Features

  • Able to construct XYZ-axis translation stages
  • Mounting hole specifications: M6 threaded holes, M6 countersunk holes
  • Surface treatment: Natural anodizing

Application

The EM-LSS90 series three-axis adapter is commonly used for assembling XYZ-axis translation stages.

Lead TimeIn Stock
Lead Time: 0.0 week0.0s
No CAD drawings available for this product.
