Motorized Linear Translation Stages EM-LSS90-100C1

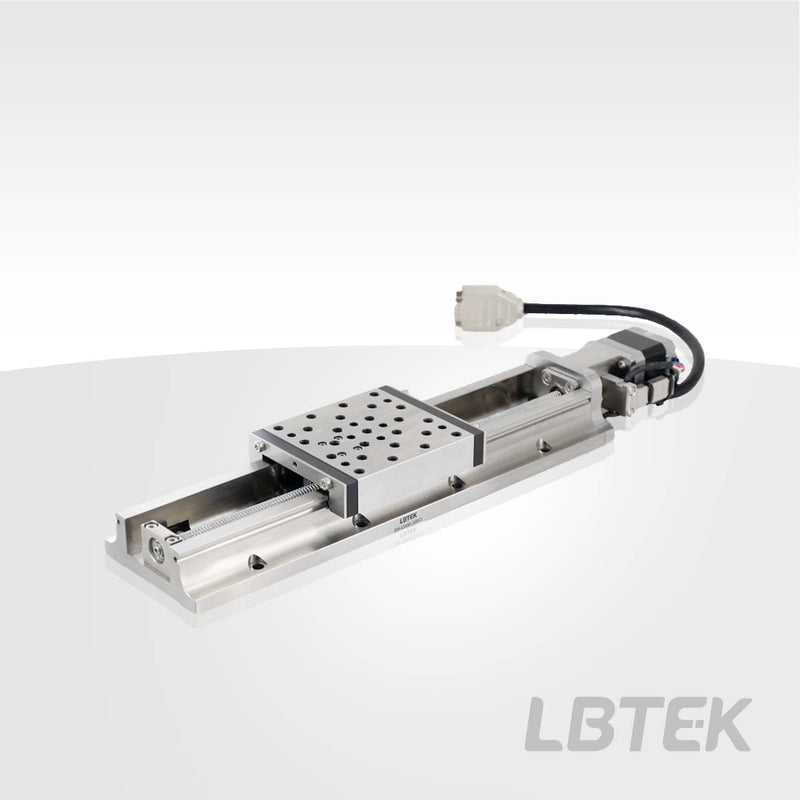

The LBTEK 90 Series stainless steel motorized linear translation stage features a table size of 90 mm × 90 mm, with four linear travel options: 100 mm, 150 mm, 200 mm, and 300 mm. It is driven by a stepper motor and a ball screw mechanism, enabling precise motion control through linear ball bearings. The bottom is equipped with M6 countersunk holes, allowing installation onto optical tables or custom-built translation stage modules using the included M6×20 hex socket head cap screws. The table surface has M6 threaded holes spaced 25 mm apart, facilitating the mounting of various optical components as per user requirements. It can be paired with models such as EM-LSS90VB and EM-LSS90VA. The stainless steel motorized linear translation stage requires an motorized translation stage controller for operation. LBTEK offers the EM-CV5-x or EM-CS5-x series controllers for user to choose.
