Motorized Linear Translation Stages EM-LSS90VB

EM-LSS90VB
$105.44
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS REACH

The Motorized Linear Translation Stages EM-LSS90VB from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.

✔ In Stock — Ships Today

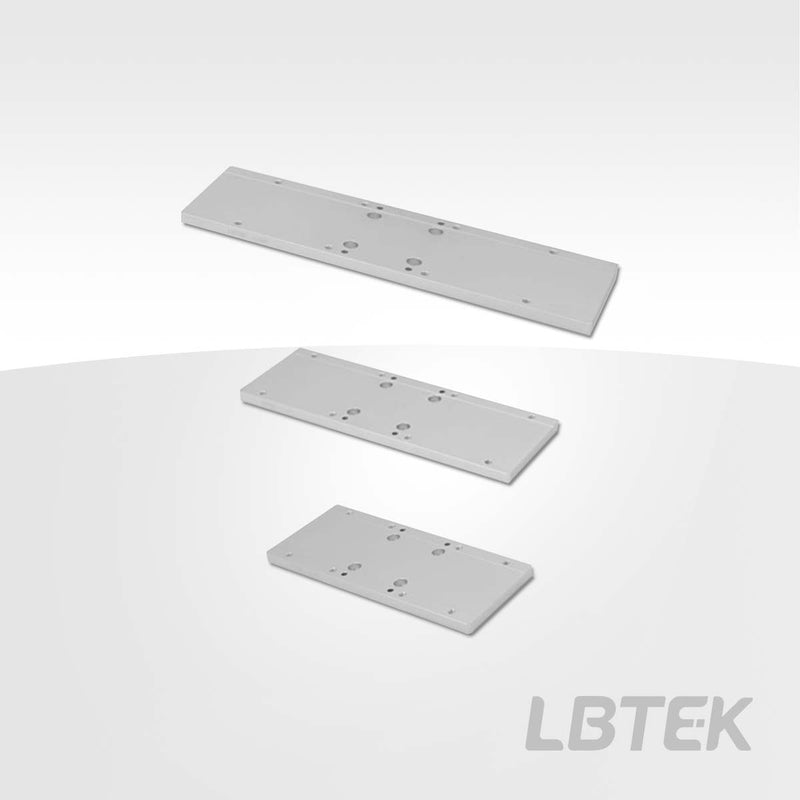

The 90 mm dual-axis adapter plate provided by LBTEK features 8 M6 threaded holes and 4 M6 countersunk mounting holes, suitable for EM-LSS90-100C1, EM-LSS90-150C1, and EM-LSS90-200C1 motorized translation stages. It is commonly used for vertically crossing and horizontally mounting two translation stages. By using the dual-axis adapter plate, an XY-axis linear translation stage can be constructed. Alternatively, the XY-axis linear translation stage can also be directly assembled from two individual linear translation stages. The dual-axis adapter plate can be selected based on specific requirements.

Key Features

  • Able to construct XY-axis translation stage
  • Mounting hole specifications: M6 threaded holes, M6 countersunk holes
  • Surface treatment: Natural anodized

Application

The EM-LSS90 series two-axis adapter is commonly used for assembling XYZ-axis translation stages.

Material 6061-T6 Aluminum Alloy
Surface Treatment Natural anodizing
Size 220 mm×90 mm×10 mm
Tabletop size 220 mm×90 mm
Hex Key Wrenches Included M6 Hexagon Socket Head Cap Screw and Parallel Pin Ø5*10
Mounting hole specifications M6 threaded hole/M6 countersunk hole
No documents available for this product.
No CAD drawings available for this product.
