30 mm coaxial flat optical element mount — Model CM-3B3C
✔ In Stock — Ships Today

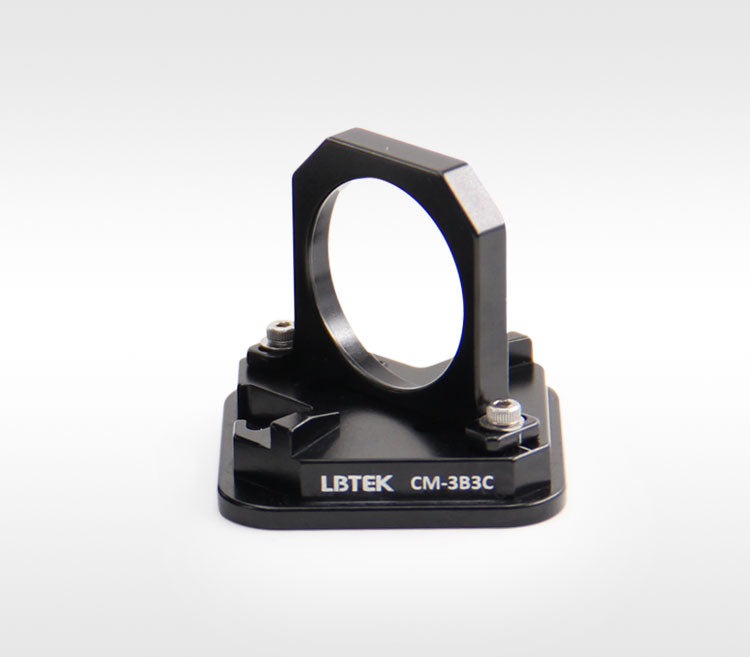

The CM-3B3C with M3 set-screw head can be used to secure optical components with a diameter of Ø25.4 mm and a thickness range of 3 mm to 8 mm. The mount base features an M4 threaded hole, allowing connection to a Ø12.7 mm stainless steel optical post. It can be paired with the 30 mm coaxial cube CM-3 for mounting 30 mm coaxial systems while also protecting the optical components.
Key Features
- Material: T6061 aluminum alloy, black anodized
- Compatible with optical components of 25.4 mm mounting diameter and 3 mm~8 mm thickness range
- Comes with 45° mounting and 45° aligned mounting step
- Bottom M4 threaded hole suitable for mounting optical rods
Application
Fastening screws secure optical components
| Material | 6061-T6 Aluminum Alloy |
| Optical component mounting method | M3 set screw |
| Applicable optical element diameter | 25.4 mm |
| Bottom threaded hole specifications | M4 |
| Compatible Optics Thickness Range | 3 mm~8 mm |
| Surface Treatment | Black anodized |
| Installation angle | 45° |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm coaxial flat optical element mount (4 variants)
