30 mm coaxial flat optical element mount — Model CM-3B4C
✔ In Stock — Ships Today

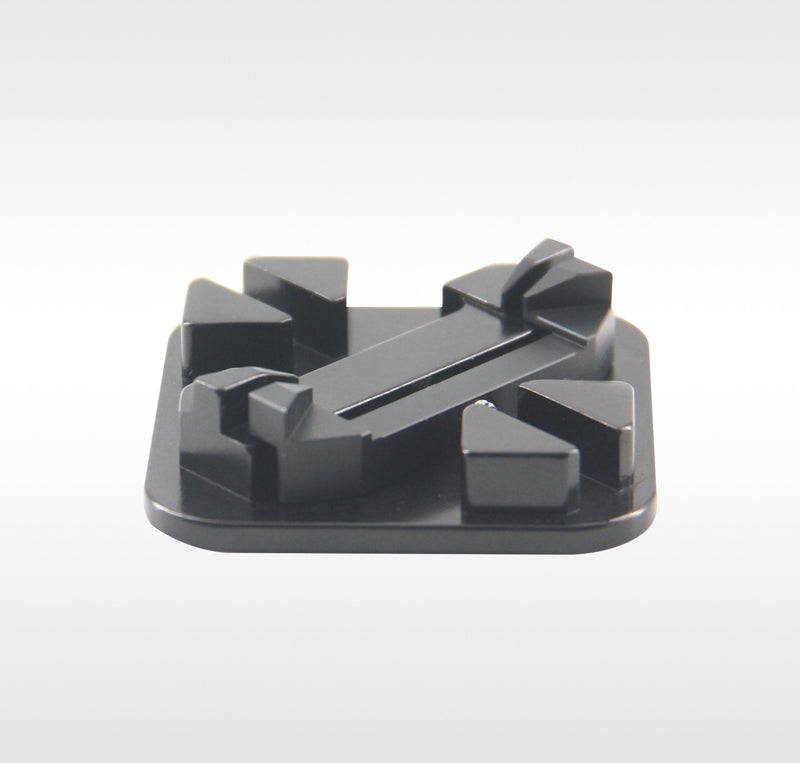

The CM-3B4C is designed for direct installation of LBTEK standard-sized rectangular dichroic mirrors measuring 36 mm × 25 mm, with a maximum mounting size of 42 mm × 30 mm and a maximum thickness of 3 mm. The optical component is secured/released through spring compression and a single screw that simultaneously tightens or loosens the spring.
The mount base features an M4 threaded hole, allowing connection to a Ø12.7 mm stainless steel optical post. It can be paired with a 30 mm coaxial cube cover for installing 30 mm coaxial systems while also protecting the optical components.
Key Features
- Suitable for mounting specifications of 42 mm × 30 mm
- Maximum thickness of applicable optical components: 3 mm
- Comes with 45° mounting, with mounting step aligned at 45°
- Bottom M4 threaded hole suitable for mounting optical rods
Application
CM-3B4C is commonly used for installing 36 mm × 25 mm rectangular
| Material | 6061-T6 Aluminum Alloy |
| Optical component mounting method | Spring clamp |
| Applicable optical component size | 42 mm×30 mm |
| Bottom threaded hole specifications | M4 |
| Maximum applicable thickness of optical components | 3 mm |
| Surface Treatment | Black anodized |
| Installation angle | 45° |
| Attribute 1109 | 25 mm |
