30 mm coaxial flat optical element mount — Model CM-3R
✔ In Stock — Ships Today

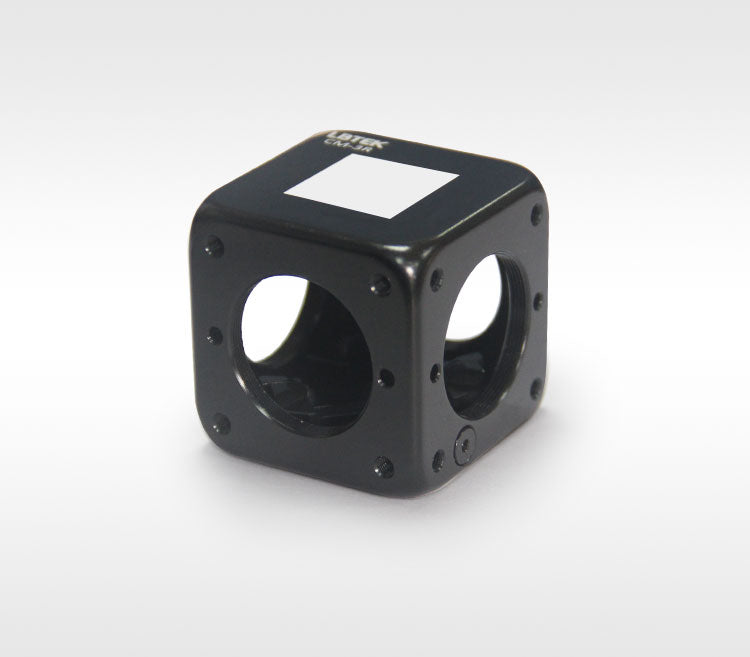

The CM-3R is commonly used for direct mounting of LBTEK standard-sized rectangular dichroic mirrors measuring 36 mm × 25 mm. Its maximum mounting dimensions are 42 mm × 30 mm with a maximum thickness of 3 mm. The cube structure effectively protects optical components. The base features an M4 threaded hole for connection with Ø12.7 mm stainless steel optical posts. The M3 threaded holes on all four sides of the cube are compatible with 30 mm coaxial systems, while the four SM1 threaded holes can be used to integrate lens tube series. Additionally, utilizing the pin holes on all four faces, multiple cubes can be interconnected through coaxial cube connectors (CMC).
Key Features
- Maximum applicable optical component size: 42 mm × 30 mm rectangular optical elements
- Maximum applicable optical component thickness: 3 mm
- Comes with 45° mounting, mounting step 45° alignment
- Compatible with 30 mm coaxial systems
Application
CM-3R is commonly used for installing 36 mm × 25 mm rectangular flat plates.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm coaxial flat optical element mount (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm coaxial flat optical element mount CM-3R Current |
CM-3R
| — | — | — | |
| 30 mm coaxial flat optical element mount CM-3B4C |
CM-3B4C
| — | — | — | View |
| 30 mm coaxial flat optical element mount CM-3C |
CM-3C
| — | — | — | View |
| 30 mm coaxial flat optical element mount CM-3B3C |
CM-3B3C
| — | — | — | View |
