RN2000RM-U
LBTek

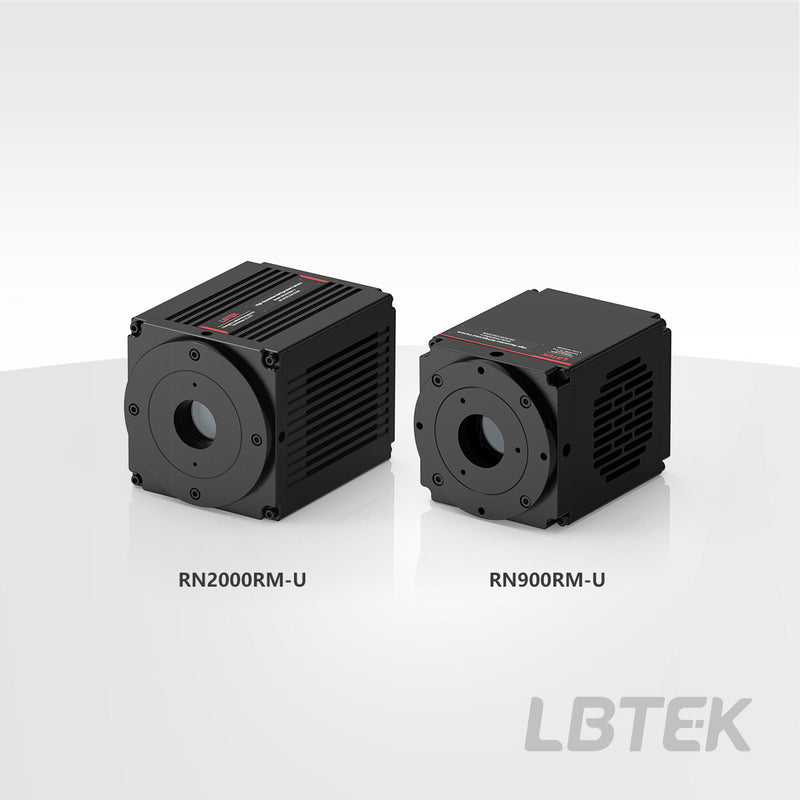

High-resolution camera RN2000RM-U

RN2000RM-U
$2,353.34
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

LBTEK's high-resolution  cameras feature a USB 3.0 data transmission interface, with pixel counts ranging from 9 to 26 megapixels and a quantum efficiency of up to 92%. They are characterized by high quantum efficiency and low noise. Among them, the RN2000RC-U is a color camera suitable for color fluorescence imaging, while the other three models are monochrome cameras. The optical interfaces include M42 and C-Mount types. All four sides of the cameras are equipped with 1/4-20 threaded holes, allowing each side to serve as a mounting surface for convenient installation in free-space applications. For the three cameras with a C-Mount optical interface, they can be integrated into a 30 mm coaxial system using SM1 threaded adapters, such as the SM1-CC, to connect to SM1 coaxial mounting plates or SM1 lens tubes.

Key Features

  • Up to 26 million pixels
  • C-Mount/M42 optical interface

Application

Camera Rear Interface Diagram

Spectral range 400-1000 nm
color Black and white
Sensor Diagonal 15.86 mm
Sensor Format 13.1 mm × 8.8 mm
Pixel size 2.4 μm × 2.4 μm
Resolution 5472 ×3648
Effective pixels 20MP
Quantum Efficiency 84%@535nm
Optical Interface C-Mount
Interface USB 3.0
Dark Current 0.001e-/pixel/s
Transimpedance Gain Analog gain, digital gain
Full Well Capacity 16 ke-
Read Noise 0.6 e -
Material 16 fps@5472 ×3648 （8 bit）
Shutter Mode Rolling Shutter
Exposure Time 3 μs ~ 60 min
Bit Depth 8bit，16 bit
Cooling Method Air cooling
Trigger Connector Hirose - 6 - Pin
Power Supply 12 V/8A
Power Consumption 36W (Total Unit)
Size 85 mm × 85 mm × 112 mm
Weight 980 g
SDK / API Support C, C++, C#, Directshow
Operating Environment Temperature 0~40℃, Humidity 10~85%
Storage Environment Temperature - 10~60℃, Humidity 0~85%
