Scientific Research Camera HS200RM-U

Name: Scientific Research Camera HS200RM-U
Brand: WaveQuanta
SKU: HS200RM-U
Price: 3399.27 SGD
Availability: InStock

HS200RM-U

$3,399.27

In Stock· Ships in 3.0 weeks

Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more

View all 49 calculators →

RoHS REACH

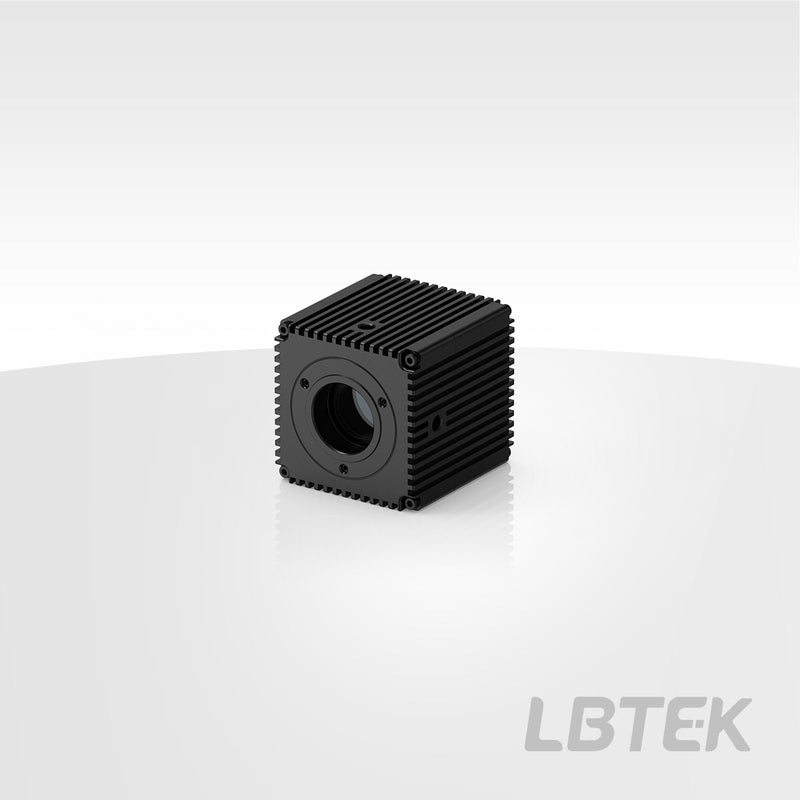

Scientific Research Camera — Model HS200RM-U

2MP Scientific Research Camera with USB 3.0 interface; 400-1000 nm spectral response, 6.5 μm × 6.5 μm pixel size.

Overview

LBTEK's high-sensitivity camera is equipped with a 6 μm large-pixel sensor, perfectly matching the ideal pixel size of High NA microscope objectives, effectively balancing the requirements of high spatial sampling rate and high sensitivity.

The camera utilizes a USB3.0 data transmission interface, with pixel options covering 2 million and 4 million, both being monochrome sensors.

The optical interface type is C-Mount, which can be connected via SM1 threaded adapters, such as SM1-CC, to SM1 coaxial mounting plates or SM1 lens tubes, enabling integration into a 30mm coaxial system.

Key Features

C-Mount optical interface
6.5 μm large pixel size

Spectral range	400-1000 nm
color	Black and white
Diagonal size	15.3 mm
Sensor size	13.3 mm × 7.5 mm
Pixel size	6.5 μm × 6.5 μm
Resolution	2048×1152
Effective pixels	2MP
Peak Quantum Efficiency	72%@595nm
Optical Interface	C-Mount
Data Interface	USB 3.0
Dark current	40e-
gain	High Gain、Low Gain、HDR
Full well capacity	45 ke-
Readout noise	2.1 e- (Median)
Frame rate	70 fps@16 bit；80 fps@8 bit
Shutter Mode	Rolling Shutter
Exposure time	10 μs ~ 10 s
Bit Depth	8 bit，12bit，16 bit
Trigger input/output interface	Hirose-6-pin
Power Supply	USB 3.0
Power consumption	< 4 W
Size	56 mm × 56 mm × 61.7 mm
weight	305 g
SDK (Software Development Kit)	C，C++，C#，Python
Operating Environment	Temperature 0~40℃, Humidity 10~85%

Specification Sheet PDF — Download

User Manual PDF

Lead Time: 3.0 week1s

CAD Drawing Download

3D Model (STL) STL — Download

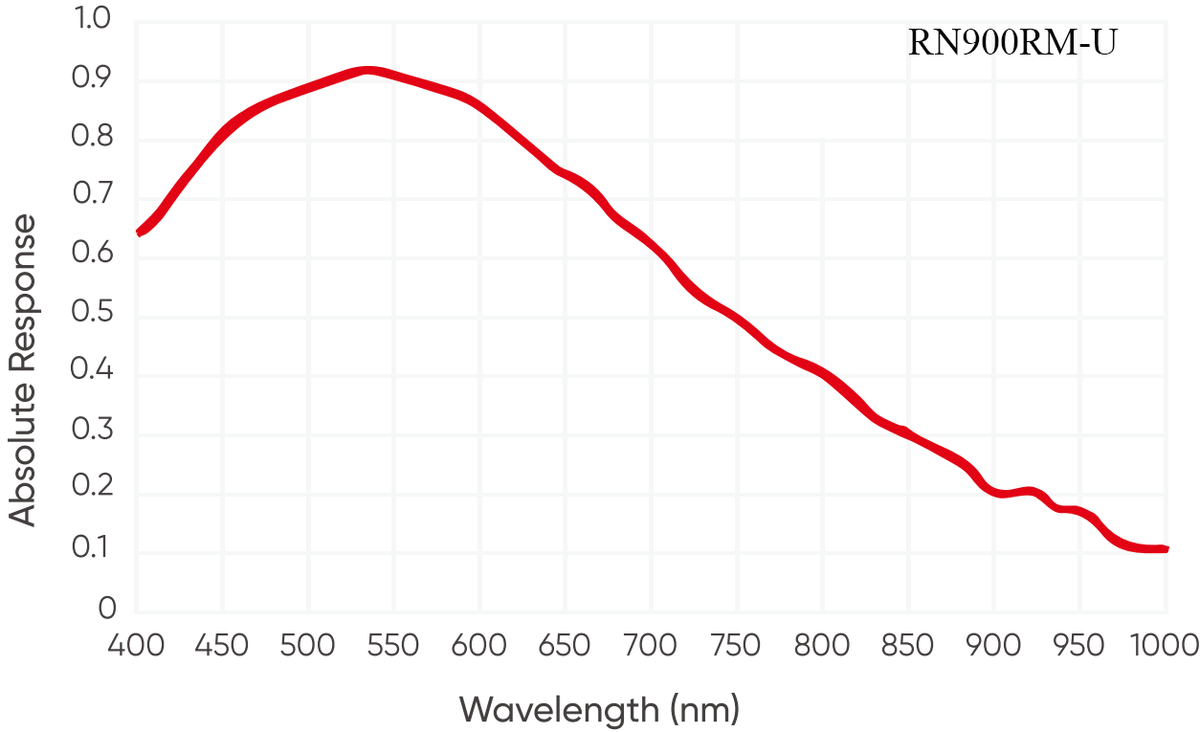

Spectral Response Curve 1 — Graph

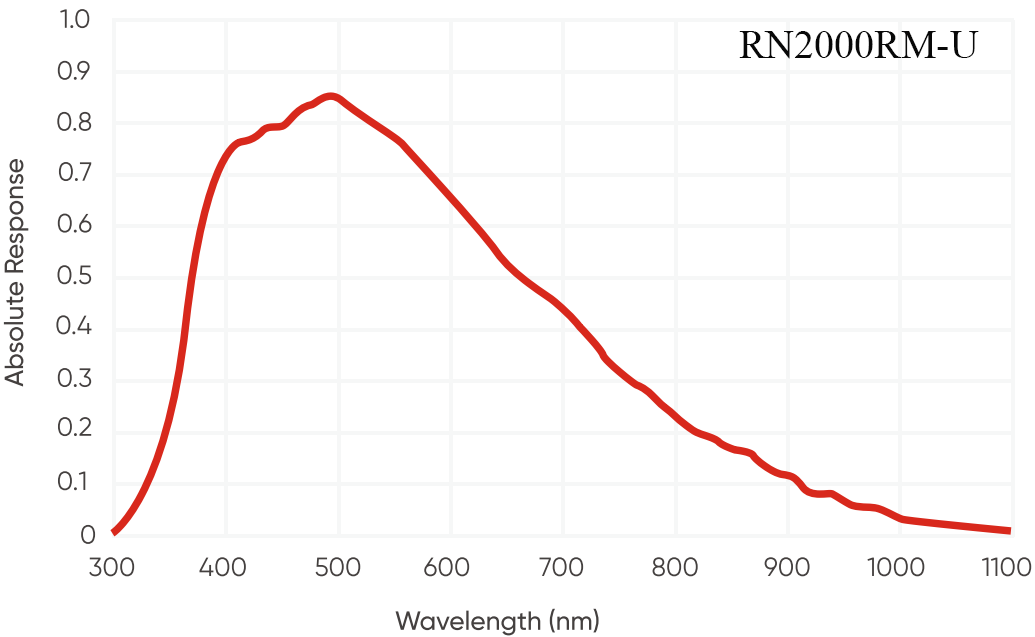

Spectral Response Curve 2 — Graph

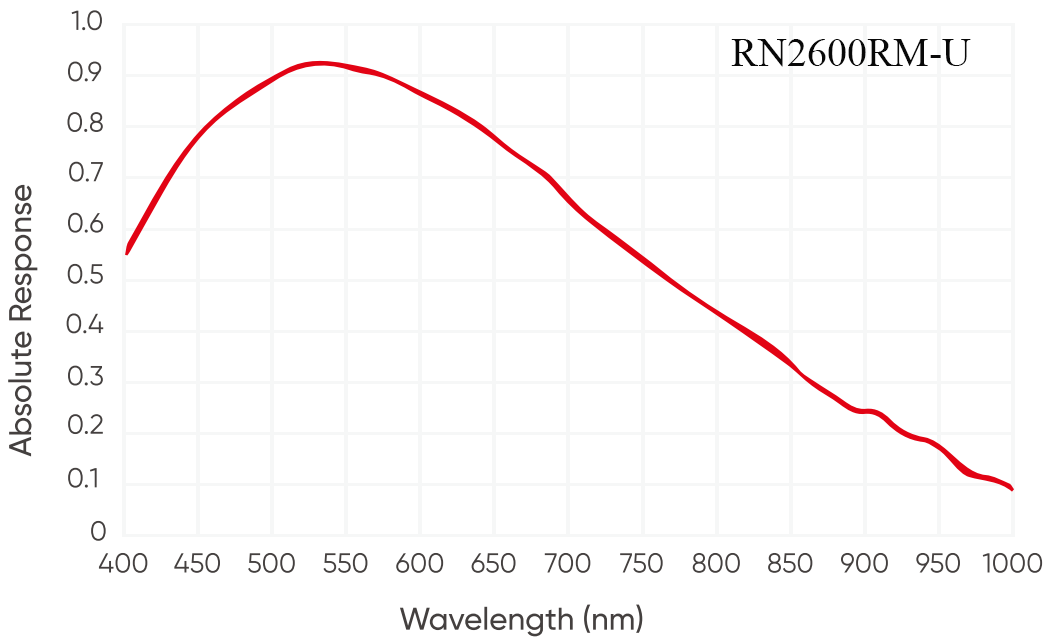

Spectral Response Curve 3 — Graph

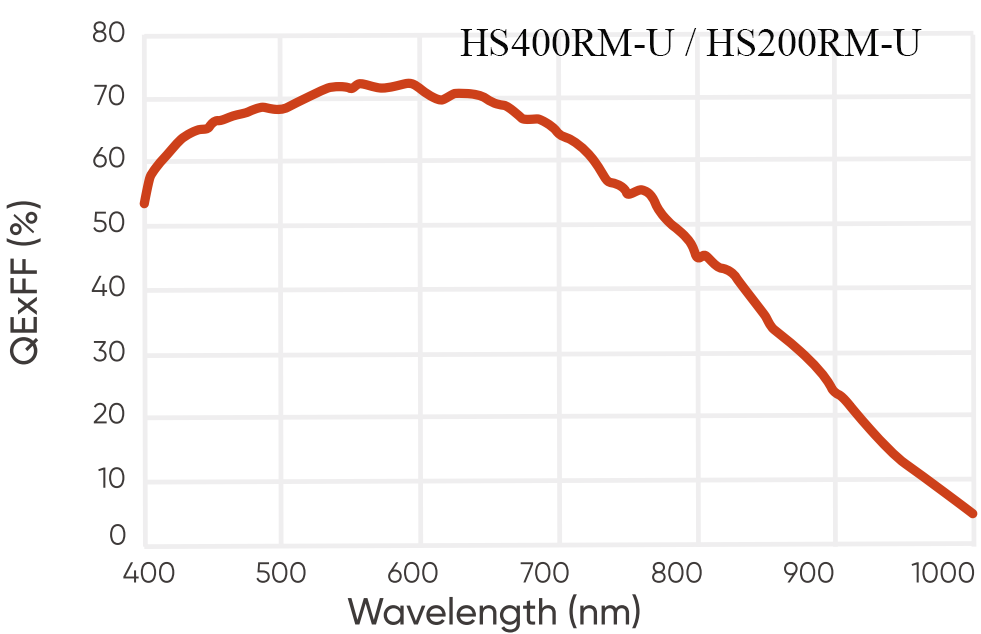

Spectral Response Curve 4 — Graph

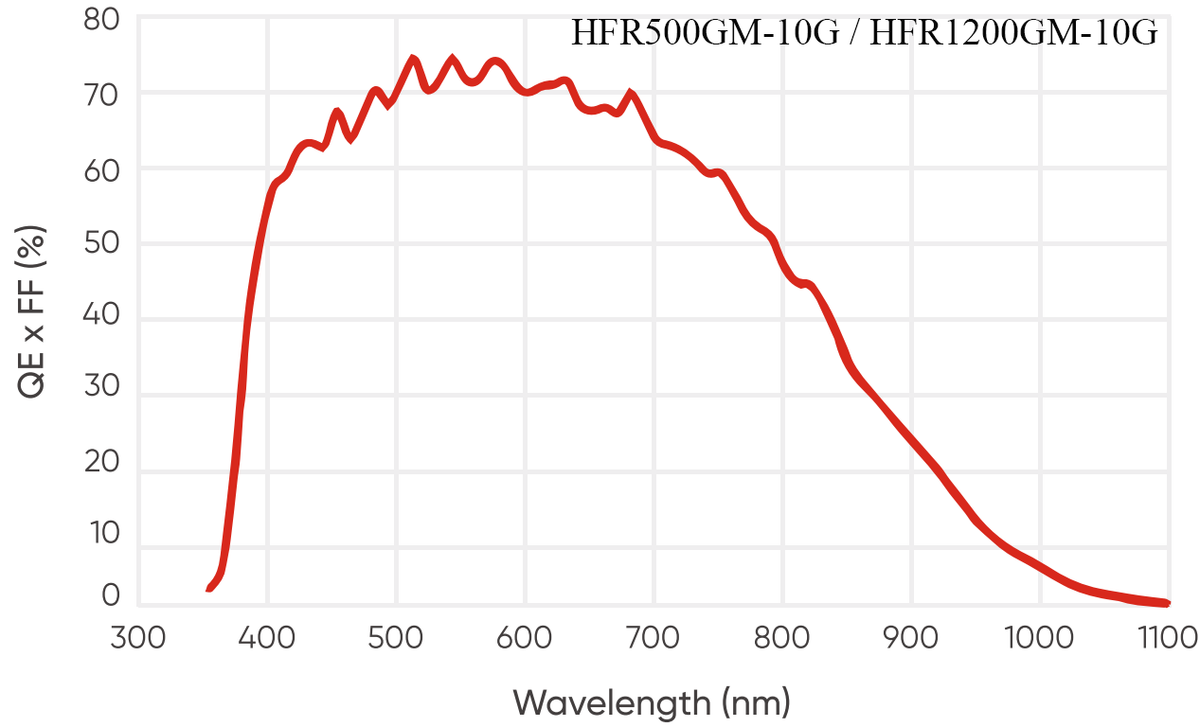

Spectral Response Curve 5 — Graph

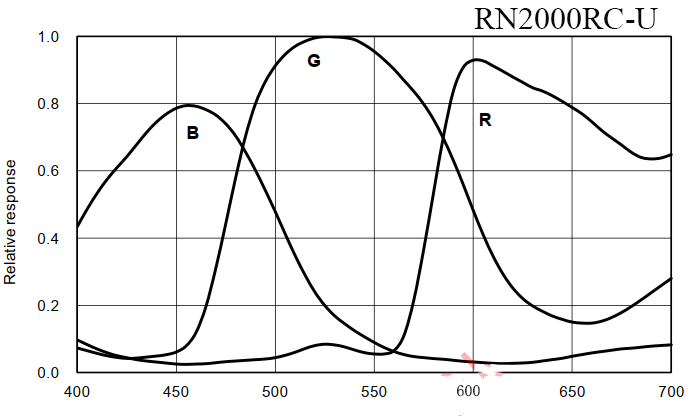

Spectral Response Curve 6 — Graph

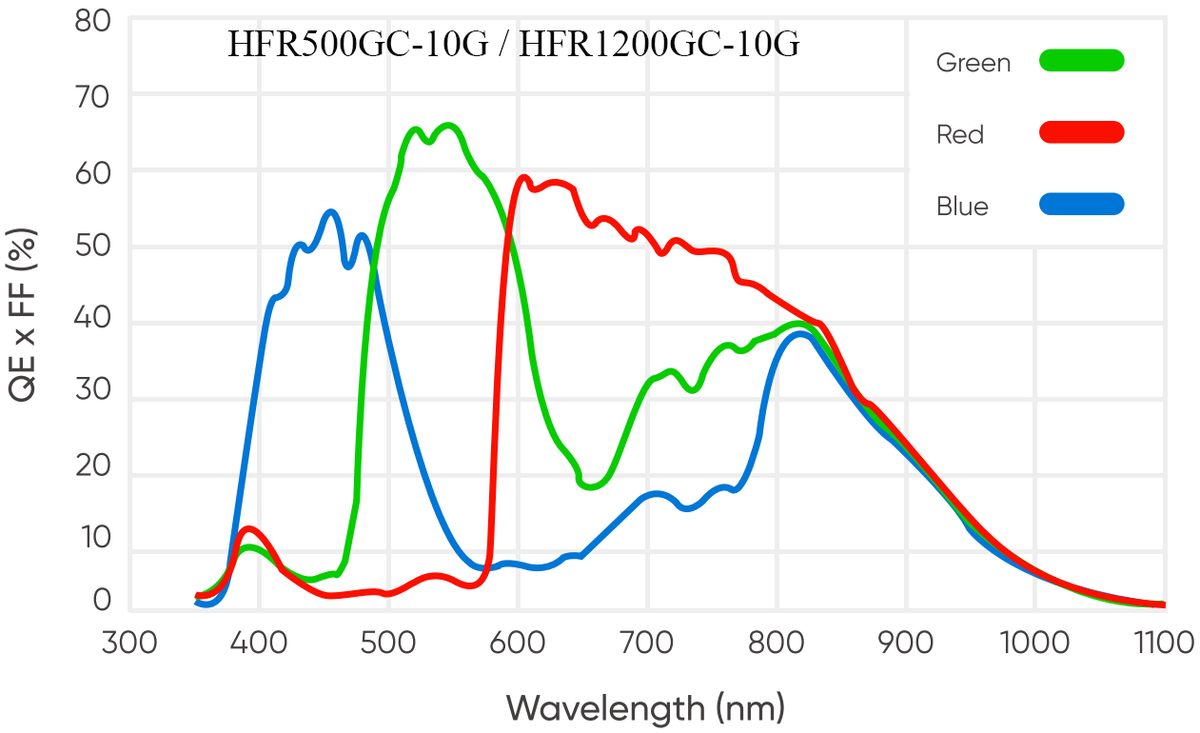

Spectral Response Curve 7 — Graph

Spectral Response Curve 8 — Graph
