HS200RM-U
LBTek

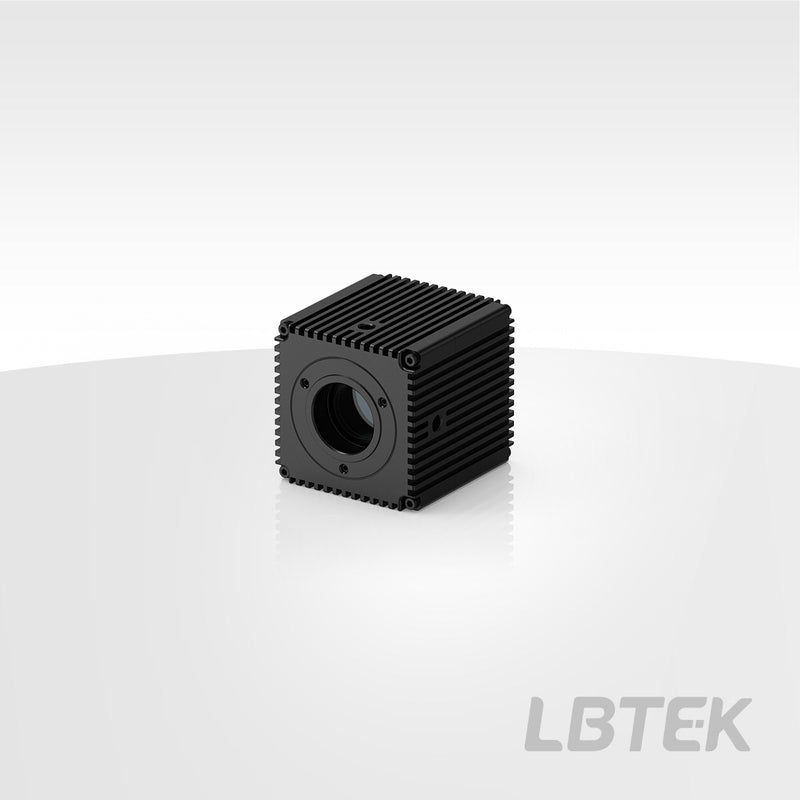

High Sensitivity Camera HS200RM-U

HS200RM-U
$3,399.27
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

LBTEK's high-sensitivity camera is equipped with a 6 μm large-pixel sensor, perfectly matching the ideal pixel size of High NA microscope objectives, effectively balancing the requirements of high spatial sampling rate and high sensitivity. The camera utilizes a USB3.0 data transmission interface, with pixel options covering 2 million and 4 million, both being monochrome sensors. The optical interface type is C-Mount, which can be connected via SM1 threaded adapters, such as SM1-CC, to SM1 coaxial mounting plates or SM1 lens tubes, enabling integration into a 30mm coaxial system. The camera features 1/4-20 threaded holes on all four sides, allowing each side to serve as a mounting and positioning surface, facilitating installation in free-space applications.

Key Features

  • C-Mount optical interface
  • 6.5 μm large pixel size

Application

Camera Rear Interface Diagram

Spectral range 400-1000 nm
color Black and white
Sensor Diagonal 15.3 mm
Sensor Format 13.3 mm × 7.5 mm
Pixel size 6.5 μm × 6.5 μm
Resolution 2048×1152
Effective pixels 2MP
Quantum Efficiency 72%@595nm
Optical Interface C-Mount
Interface USB 3.0
Dark Current 40e-
Transimpedance Gain High Gain、Low Gain、HDR
Full Well Capacity 45 ke-
Read Noise 2.1 e- (Median)
Material 70 fps@16 bit；80 fps@8 bit
Shutter Mode Rolling Shutter
Exposure Time 10 μs ~ 10 s
Bit Depth 8 bit，12bit，16 bit
Trigger Connector Hirose-6-pin
Power Supply USB 3.0
Power Consumption < 4 W
Size 56 mm × 56 mm × 61.7 mm
Weight 305 g
SDK / API Support C，C++，C#，Python
Operating Environment Temperature 0~40℃, Humidity 10~85%
