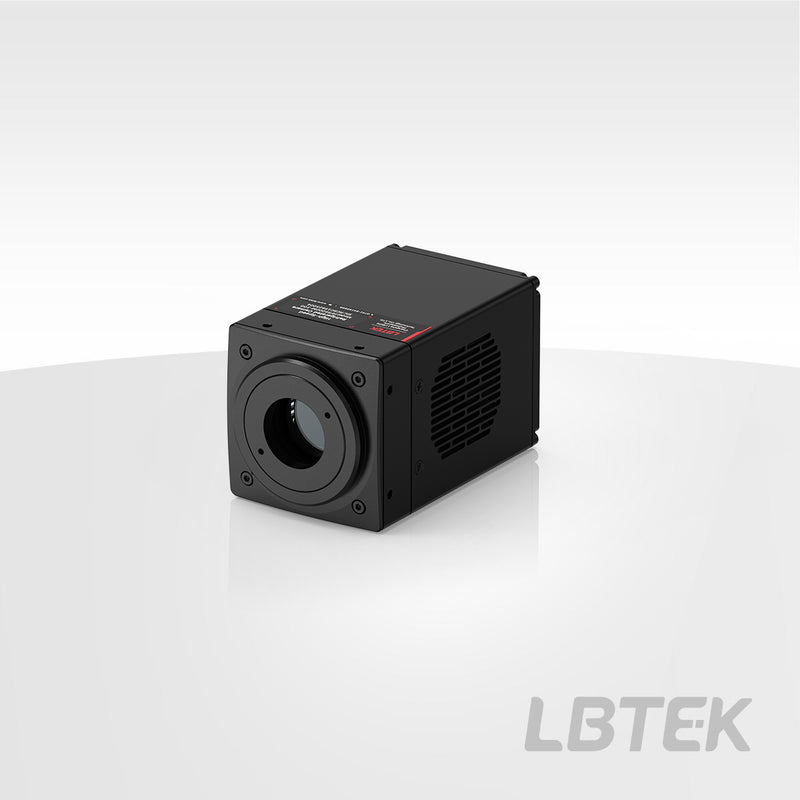

High-speed cooling camera HFR500GM-10G

HFR500GM-10G
$2,484.08
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

LBTEK's high-speed cooled cameras utilize a 10G GigE data transfer interface to achieve high-speed imaging, with imaging speeds several times faster than USB3.0. The maximum full resolution speed can reach up to 100 fps @12 bit and 164 fps @ 8 bit, significantly enhancing the batch data throughput efficiency of instrument systems. The pixel options include 5 megapixels and 12 megapixels. The optical interface type is C-Mount, which can be connected to SM1 coaxial mounting plates or SM1 lens tubes via SM1 threaded adapters, such as SM1-CC, for integration into 30mm coaxial systems. The camera features 2×M3 threaded holes on all four sides, allowing each side to serve as a mounting and positioning surface, facilitating installation in free-space applications.

Key Features

  • C-Mount optical interface
  • Maximum full resolution speed up to 100 fps @12 bit and 164 fps @ 8 bit

Application

Camera Rear Interface Diagram

Spectral range 400-1000 nm
color Black and white
Sensor Diagonal 10.9 mm
Sensor Format 8.3 mm × 7.0 mm
Pixel size 3.4 μm × 3.4 μm
Resolution 2448×2048
Effective pixels 5MP
Quantum Efficiency 75%@540 nm
Optical Interface C-Mount
Interface 10G GigE
Dark Current 0.5e-/p/s @ 10°C
Transimpedance Gain High Capacity, Balanced, Sensitive
Full Well Capacity 12 bit：8.7 ke-@Gain 1，0.5 ke- @Gain 2
Read Noise 12 bit: 3.9 e- @ Gain 1；1.6 e- @ Gain 2；
Material 164 fps @ 8bit，164 fps @ 10bit，100 fps @12bit
Shutter Mode Global Shutter
Exposure Time 1μs ~ 10 s
Bit Depth 8 bit，10 bit，12 bit
Cooling Method Air cooling
Trigger Connector Hirose-12-Pin
Power Supply 12 V /5 A
Power Consumption 33 W
Size 60 mm × 60 mm × 100 mm
Weight 500 g
SDK / API Support C，C++，C#，Python
Operating Environment Temperature 0~40℃, Humidity 10~85%
