Scientific Research Camera — Model RN2600RM-U

26MP Scientific Research Camera with USB 3.0 interface; 400-1000 nm spectral response, 3.76 μm × 3.76 μm pixel size.

Overview

LBTEK's high-resolution cameras feature a USB 3.0 data transmission interface, with pixel counts ranging from 9 to 26 megapixels and a quantum efficiency of up to 92%.

They are characterized by high quantum efficiency and low noise.

Among them, the RN2000RC-U is a color camera suitable for color fluorescence imaging, while the other three models are monochrome cameras.

Key Features

Up to 26 million pixels
C-Mount/M42 optical interface

Spectral range	400-1000 nm
color	Black and white
Diagonal size	28.3mm
Sensor size	23.4 mm ×15.6 mm
Pixel size	3.76 μm × 3.76 μm
Resolution	6240 ×4168
Effective pixels	26MP
Peak Quantum Efficiency	92%@530nm
Optical Interface	M42
Data Interface	USB 3.0
Dark current	＜0.0005 e - /p/s
gain	Gain 0，Gain1，Gain 2，Gain 3
Full well capacity	49 ke- @ Gain0；15.7 ke- @ Gain1； 7.8 ke - @ Gain2；3 ke - @ Gain3
Readout noise	2.7 e - @ Gain0；1.0 e - @ Gain1； 0.95 e - @ Gain2；0.85 e - @ Gain3
Frame rate	6.5 fps@6240× 4168 (Standard)； 3.4 fps@6240× 4168 (Low Noise) 35.5 fps@3120×2084 (SenBin)
Shutter Mode	Roller Shade, Global Reset
Exposure time	34 μs ~ 60 min
Bit Depth	12bit，14bit，15bit，16 bit
Cooling method	Air cooling
Trigger input/output interface	Hirose - 6 - Pin
Power Supply	12 V/8A
Power consumption	≤ 50W
Size	85 mm × 85 mm × 97 mm
weight	945 g
SDK (Software Development Kit)	C, C++, C#, Python
Operating Environment	Temperature 0~40℃, Humidity 10~85%
Storage environment	Temperature - 10~60℃, Humidity 0~85%

Specification Sheet PDF — Download

User Manual PDF

Lead Time: 3.0 week1s

CAD Drawing Download

3D Model (STL) STL — Download

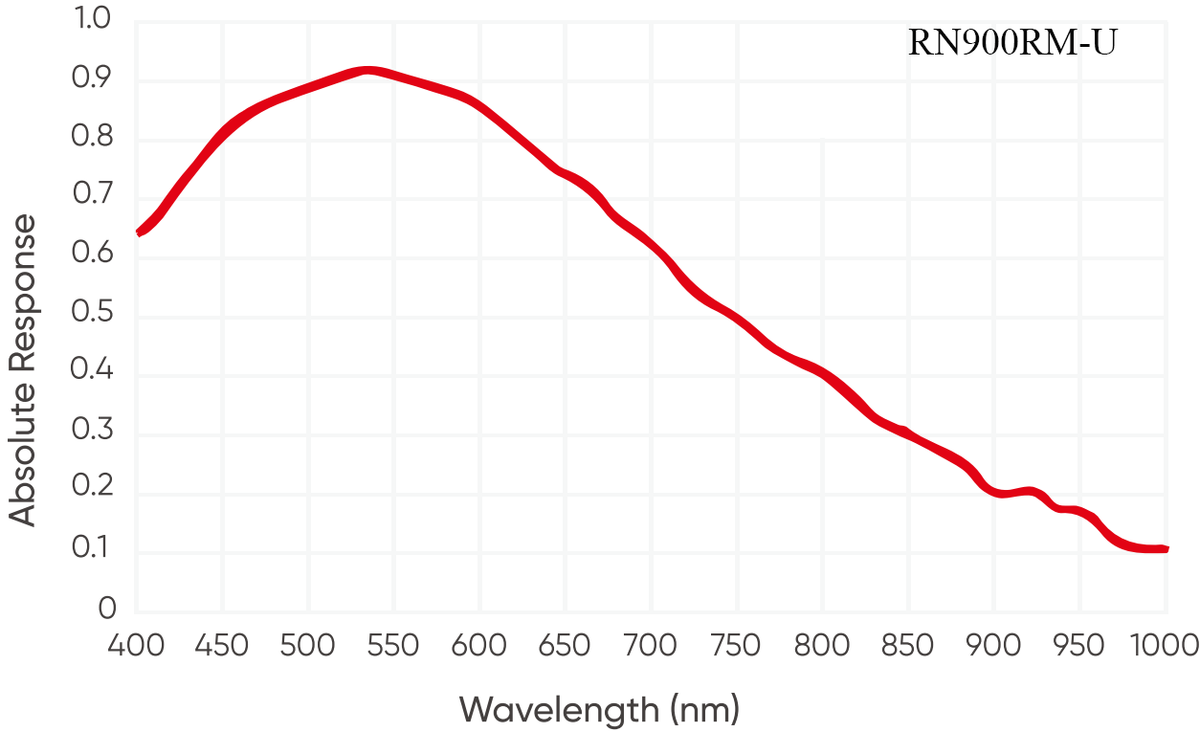

Spectral Response Curve 1 — Graph

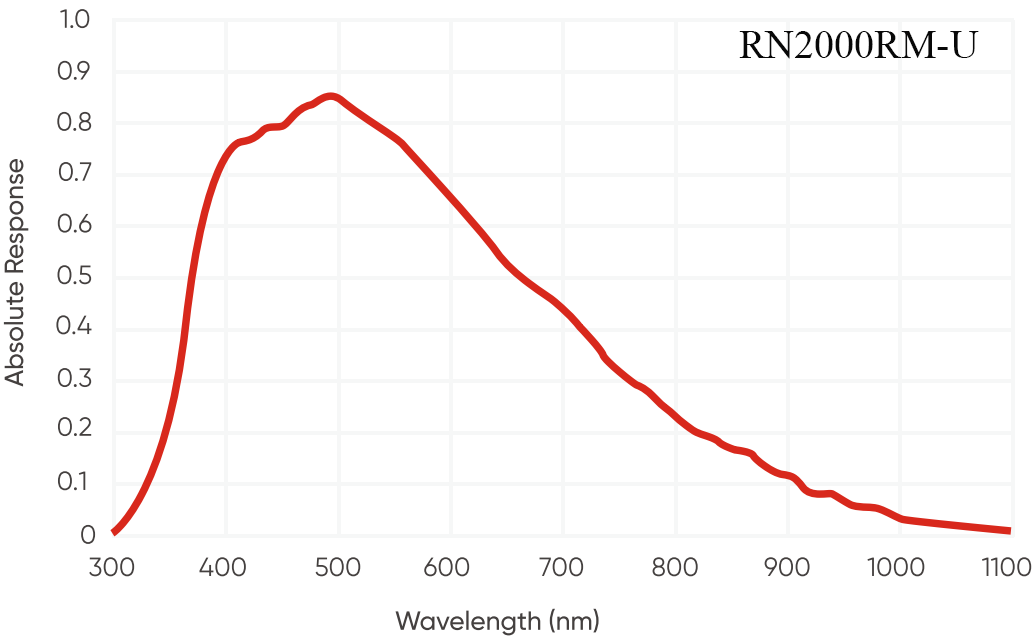

Spectral Response Curve 2 — Graph

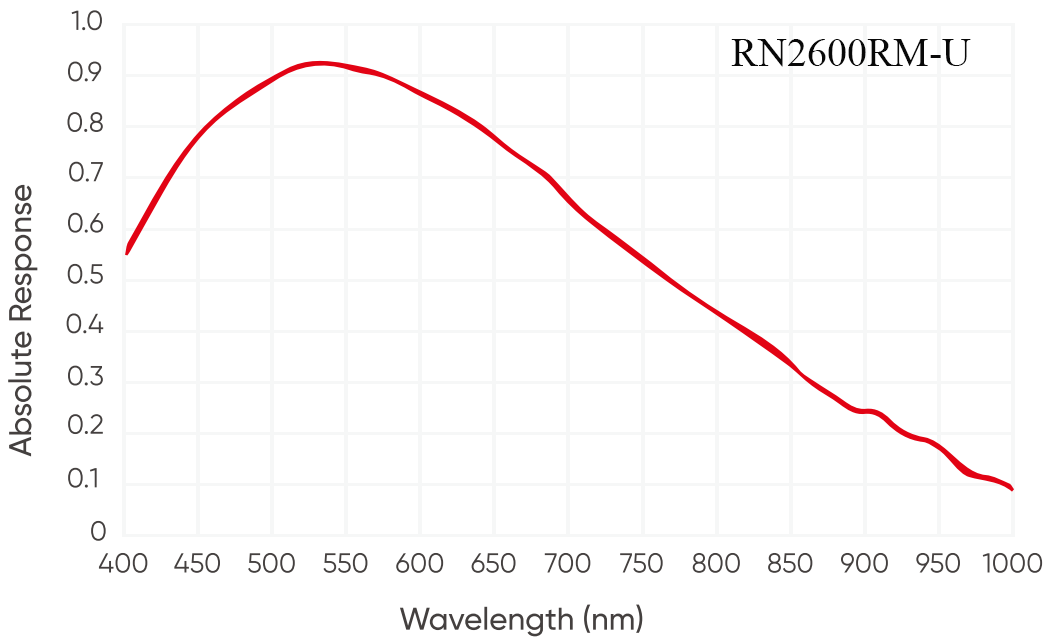

Spectral Response Curve 3 — Graph

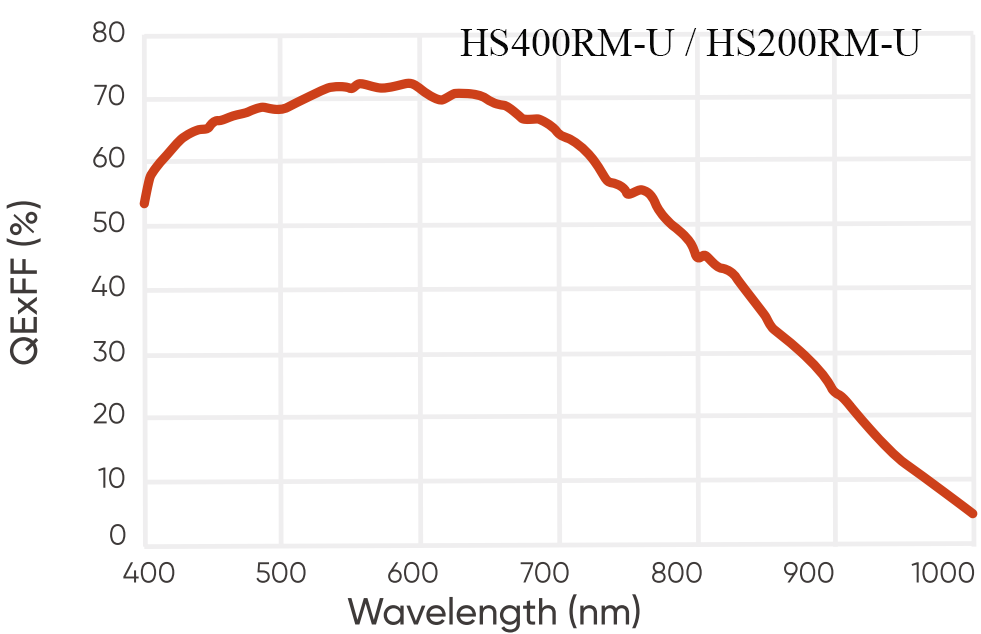

Spectral Response Curve 4 — Graph

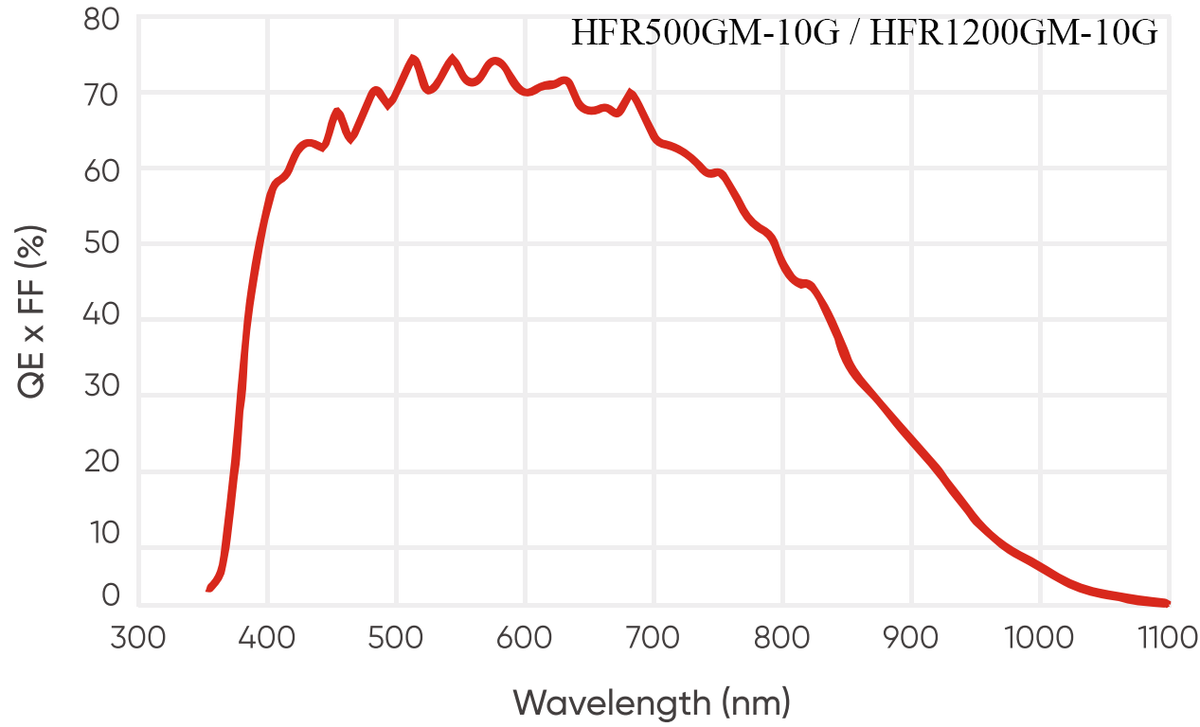

Spectral Response Curve 5 — Graph

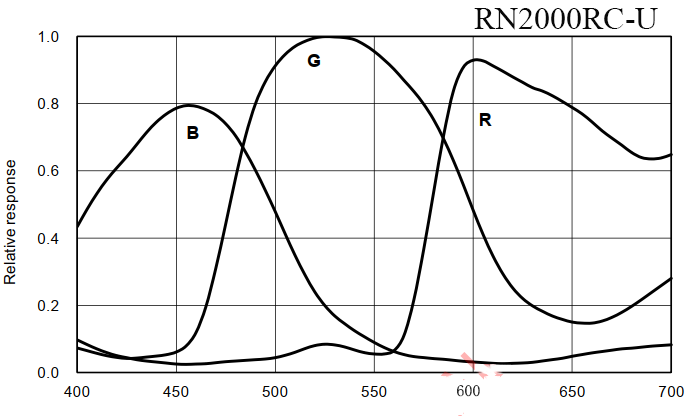

Spectral Response Curve 6 — Graph

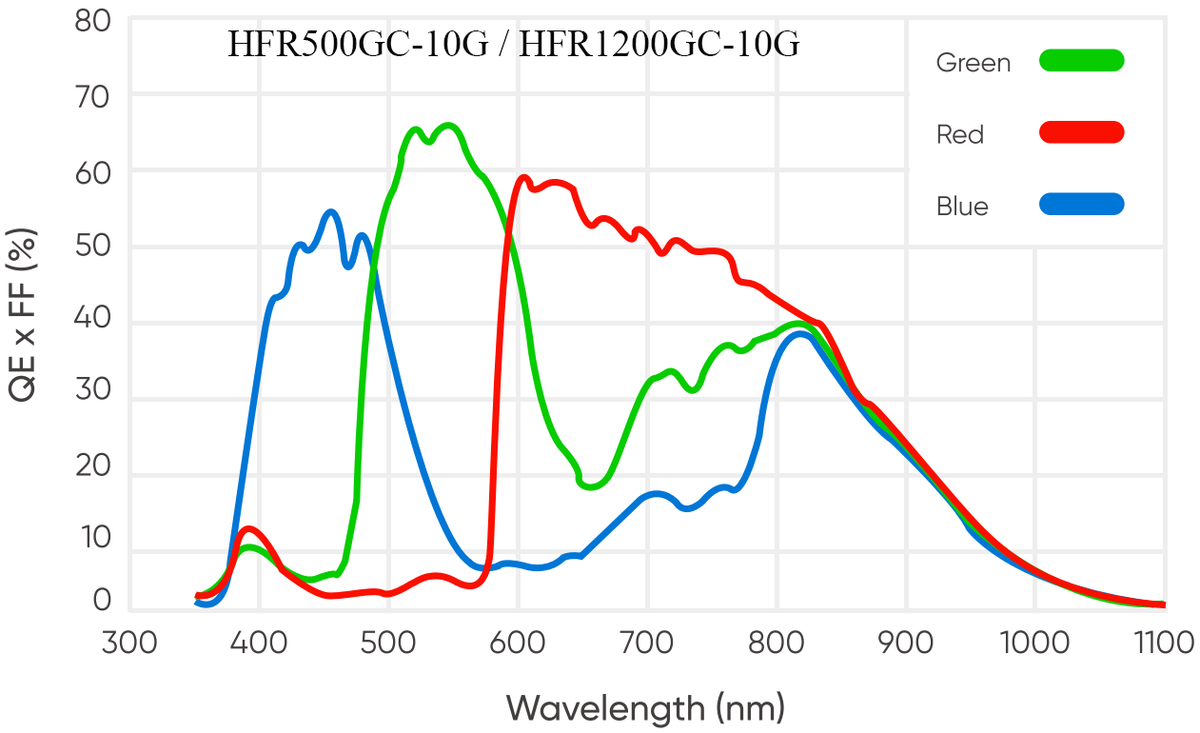

Spectral Response Curve 7 — Graph

Spectral Response Curve 8 — Graph
