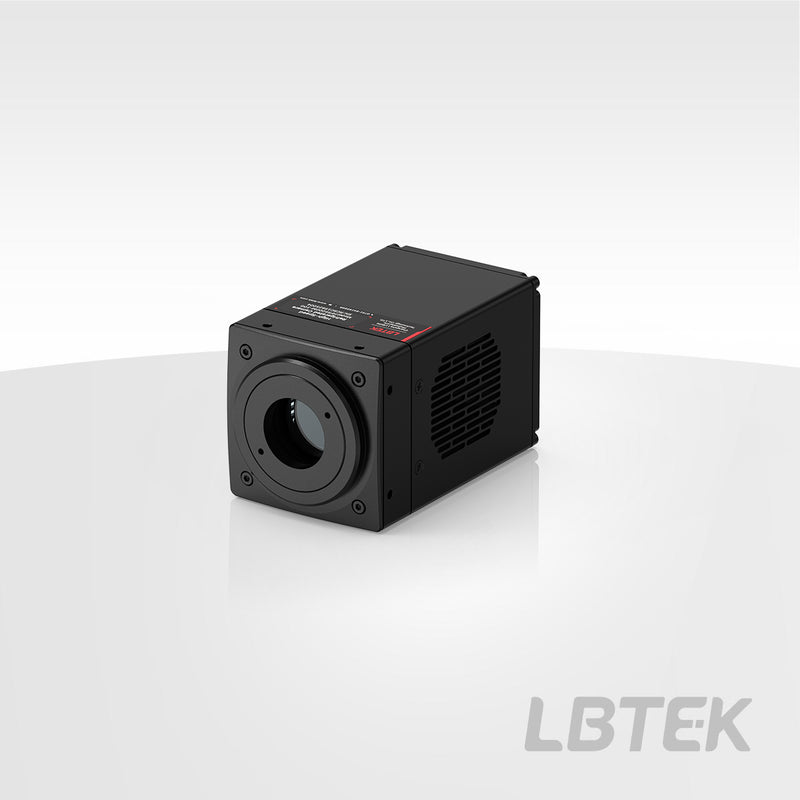

Scientific Research Camera — Model HFR500GC-10G
5MP Scientific Research Camera with 10G GigE interface; 400-650nm spectral response, 3.4 μm × 3.4 μm pixel size.
Overview
LBTEK's high-speed cooled cameras utilize a 10G GigE data transfer interface to achieve high-speed imaging, with imaging speeds several times faster than USB3.0.
The maximum full resolution speed can reach up to 100 fps @12 bit and 164 fps @ 8 bit, significantly enhancing the batch data throughput efficiency of instrument systems.
The pixel options include 5 megapixels and 12 megapixels.
Key Features
- C-Mount optical interface
- Maximum full resolution speed up to 100 fps @12 bit and 164 fps @ 8 bit
| Spectral range | 400-650nm |
| color | Colorful |
| Diagonal size | 10.9 mm |
| Sensor size | 8.3 mm × 7.0 mm |
| Pixel size | 3.4 μm × 3.4 μm |
| Resolution | 2448×2048 |
| Effective pixels | 5MP |
| Peak Quantum Efficiency | 74% @ 540 nm |
| Optical Interface | C-Mount |
| Data Interface | 10G GigE |
| Dark current | 0.5 e-/p/s @ 10°C |
| gain | High Capacity, Balanced, Sensitive |
| Full well capacity | 12 bit：8.7 ke-@Gain 1，0.5 ke- @Gain 2 |
| Readout noise | 12 bit: 3.7 e- @ Gain 1，2.5 e- @ Gain 2，1.6 e- @ Gain 3； |
| Frame rate | 163 fps @ 8bit，163 fps@10bit，100 fps @12bit |
| Shutter Mode | Global Shutter |
| Exposure time | 8bit：2 μs ~ 10 s；10/12bit：3 μs ~ 10 s |
| Bit Depth | 8 bit，10 bit，12 bit |
| Cooling method | Air cooling |
| Trigger input/output interface | Hirose-12-Pin |
| Power Supply | 12 V/5 A |
| Power consumption | 28 W |
| Size | 60 mm × 60 mm × 100 mm |
| weight | 500 g |
| SDK (Software Development Kit) | C，C++，C#，Python |
| Operating Environment | Temperature 0~40 ℃, Humidity 10~85% |
| Storage environment | Temperature: -10~60 °C, Humidity: 0~85% |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

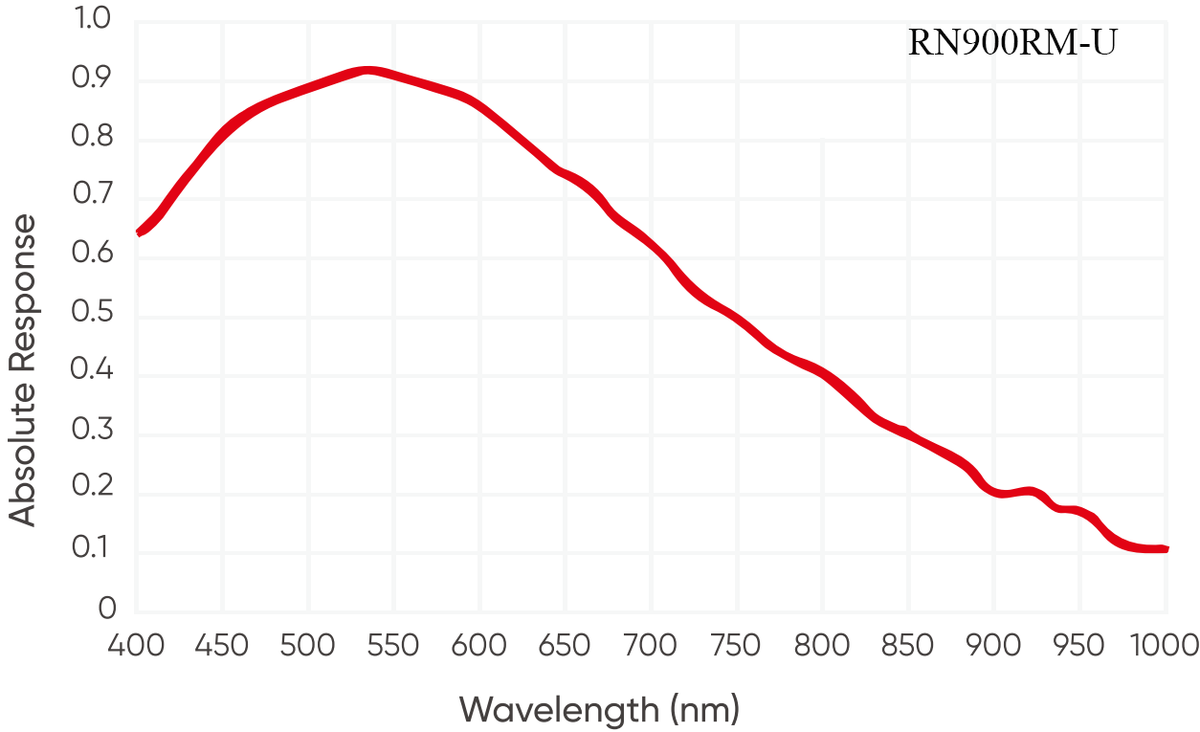

Spectral Response Curve 1 — Graph

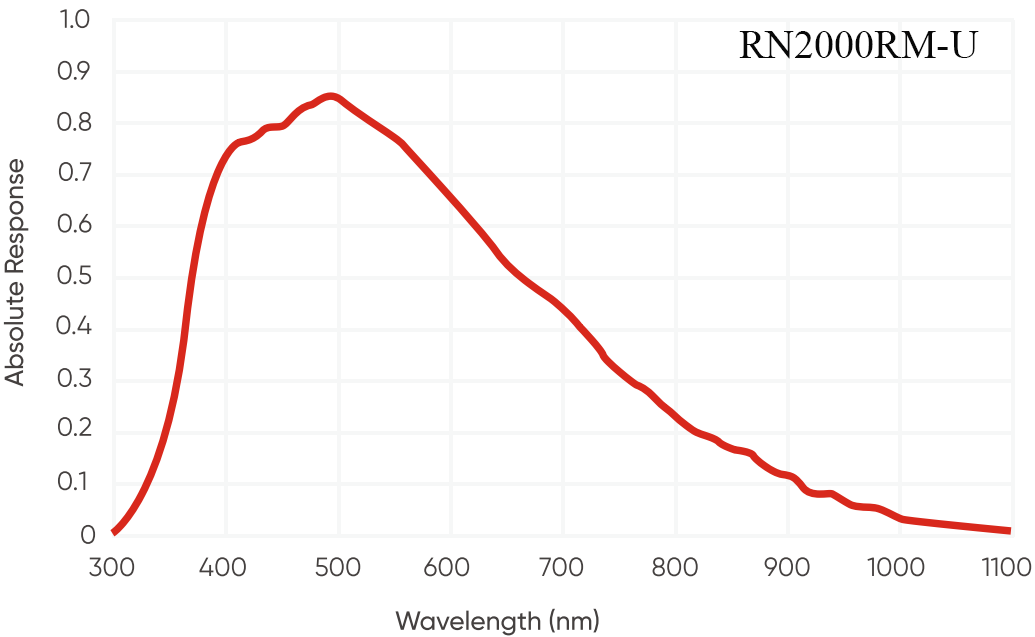

Spectral Response Curve 2 — Graph

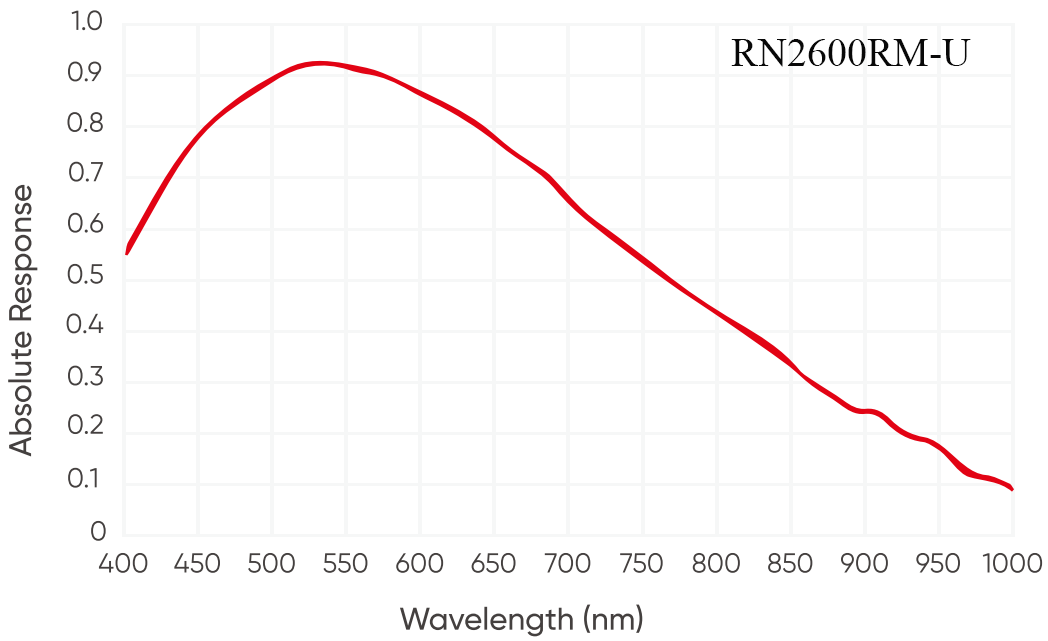

Spectral Response Curve 3 — Graph

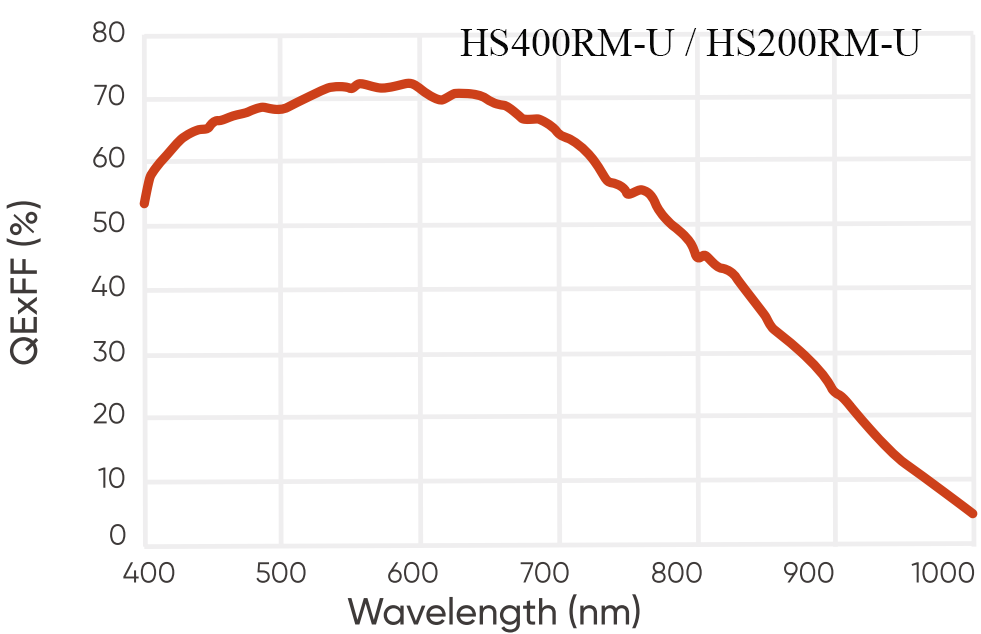

Spectral Response Curve 4 — Graph

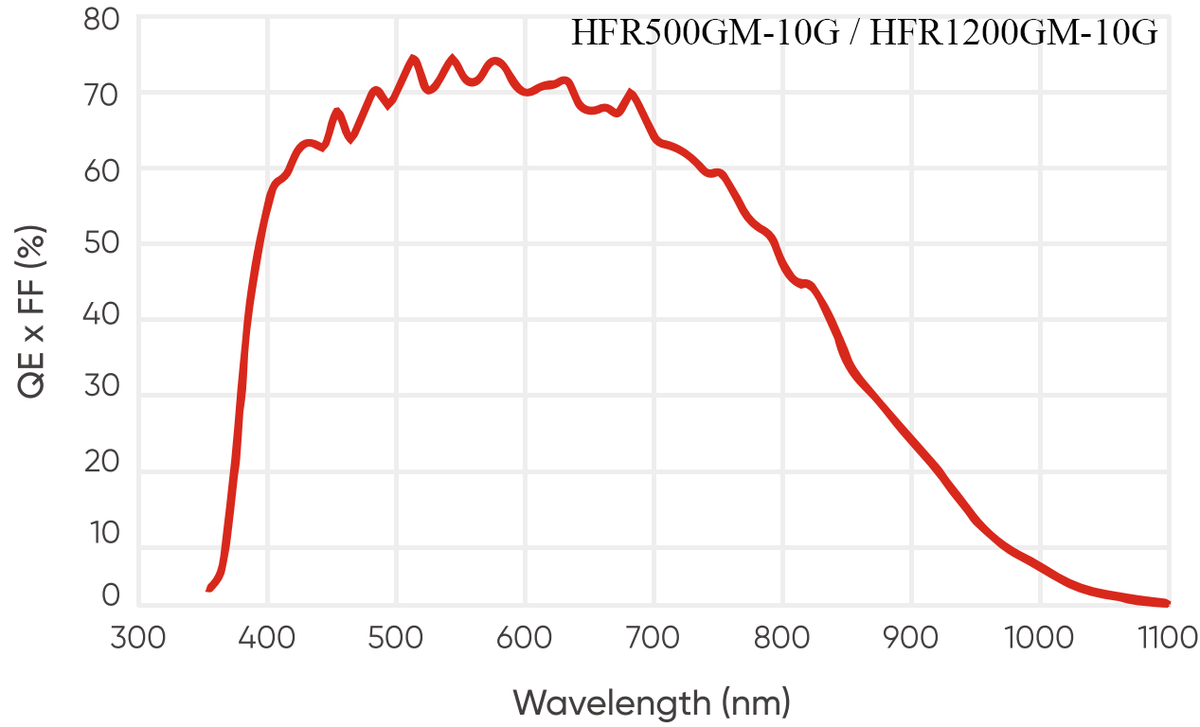

Spectral Response Curve 5 — Graph

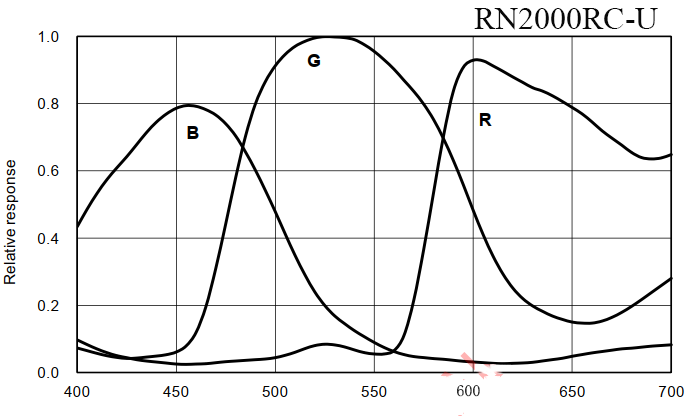

Spectral Response Curve 6 — Graph

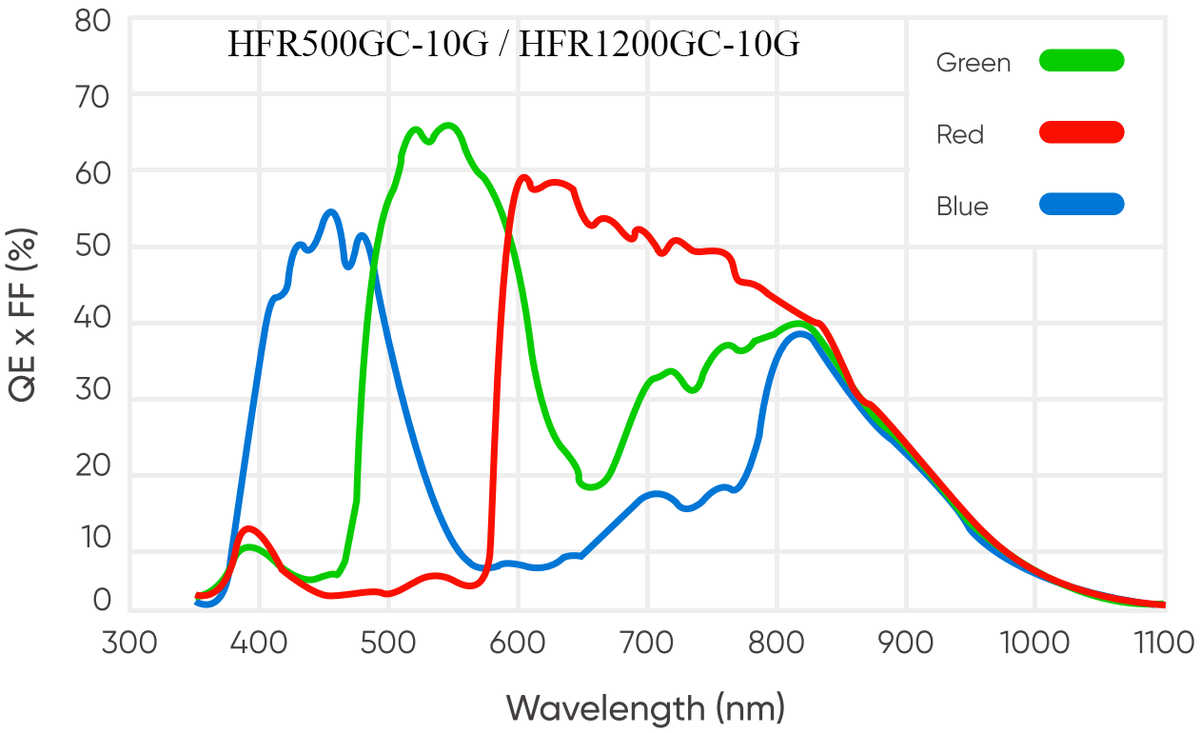

Spectral Response Curve 7 — Graph
Spectral Response Curve 8 — Graph
