Scientific Research Camera RN900RM-U

Name: Scientific Research Camera RN900RM-U
Brand: WaveQuanta
SKU: RN900RM-U
Price: 3530.01 SGD
Availability: InStock

RN900RM-U

$3,530.01

In Stock· Ships in 3.0 weeks

Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more

View all 49 calculators →

RoHS REACH

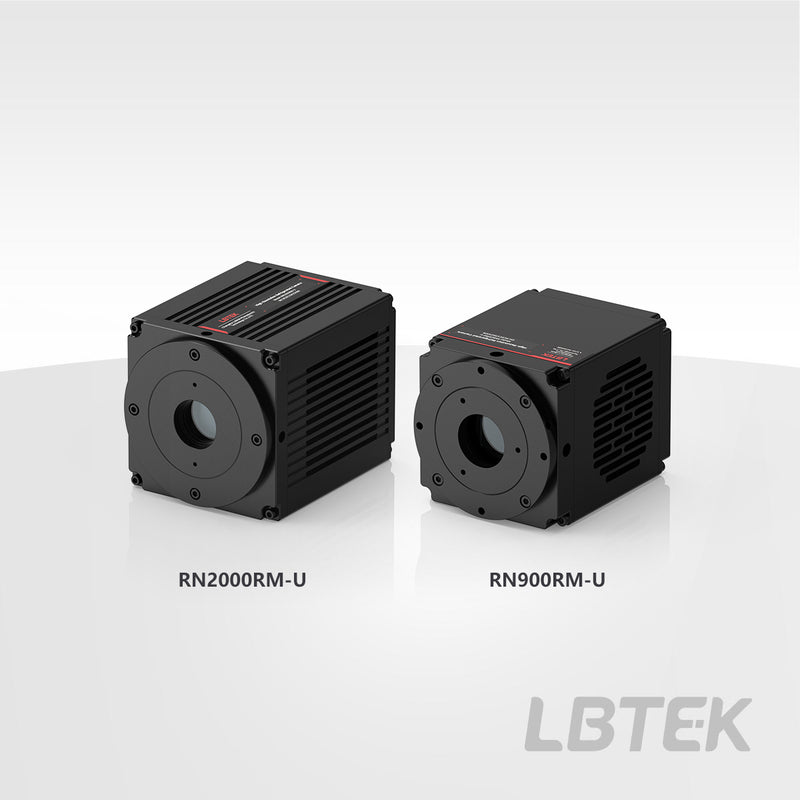

Scientific Research Camera — Model RN900RM-U

9MP Scientific Research Camera with USB 3.0 interface; 400-1000 nm spectral response, 3.76 μm × 3.76 μm pixel size.

Overview

LBTEK's high-resolution cameras feature a USB 3.0 data transmission interface, with pixel counts ranging from 9 to 26 megapixels and a quantum efficiency of up to 92%.

They are characterized by high quantum efficiency and low noise.

Among them, the RN2000RC-U is a color camera suitable for color fluorescence imaging, while the other three models are monochrome cameras.

Key Features

Up to 26 million pixels
C-Mount/M42 optical interface

Spectral range	400-1000 nm
color	Black and white
Diagonal size	15.96 mm
Sensor size	11.28 mm × 11.28 mm
Pixel size	3.76 μm × 3.76 μm
Resolution	3000 × 3000
Effective pixels	9MP
Peak Quantum Efficiency	92% @ 540 nm
Optical Interface	C-Mount
Data Interface	USB 3.0
Dark current	＜0.0005 e - /p/s
gain	Gain 0，Gain1，Gain 2，Gain 3
Full well capacity	48 ke - @ Gain0；16 ke - @ Gain1； 7.8 ke - @ Gain2；3.1 ke - @ Gain3
Readout noise	2.5 e - @ Gain0；1.0 e - @ Gain1； 0.85 e - @ Gain2；0.7 e - @ Gain3
Frame rate	19 fps @ Standard Mode, 12fps @ Low Noise Mode
Shutter Mode	Rolling Shutter
Exposure time	15 μs ~ 60 min
Bit Depth	14bit，16 bit
Cooling method	Air cooling
Trigger input/output interface	Hirose - 6 - Pin
Power Supply	12 V/6A
Power consumption	≤ 46W
Size	76 mm × 76 mm × 98.5 mm
weight	835 g
SDK (Software Development Kit)	C, C++, C#, Python
Operating Environment	Temperature 0~40℃, Humidity 10~85%
Storage environment	Temperature - 10~60℃, Humidity 0~85%

Specification Sheet PDF — Download

User Manual PDF

Lead Time: 3.0 week1s

CAD Drawing Download

3D Model (STL) STL — Download

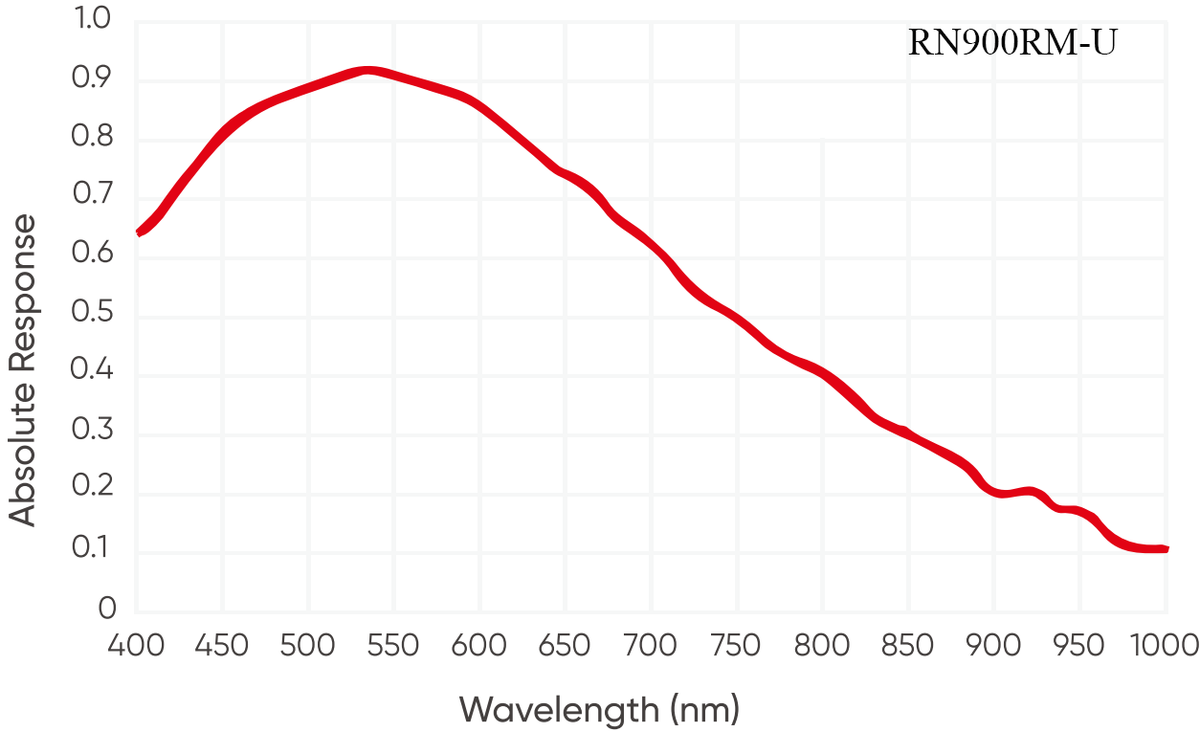

Spectral Response Curve 1 — Graph

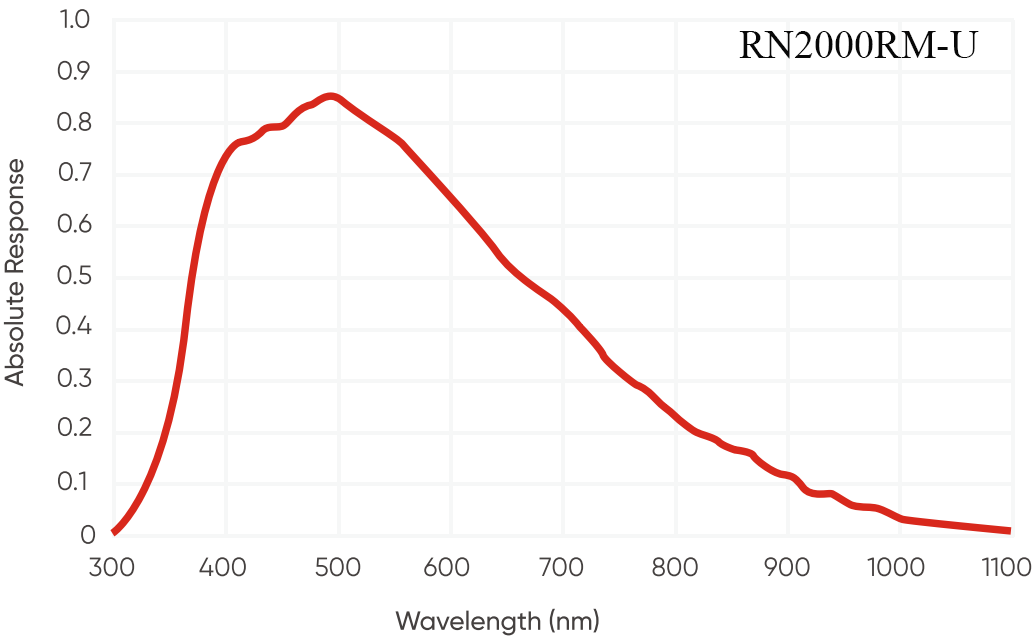

Spectral Response Curve 2 — Graph

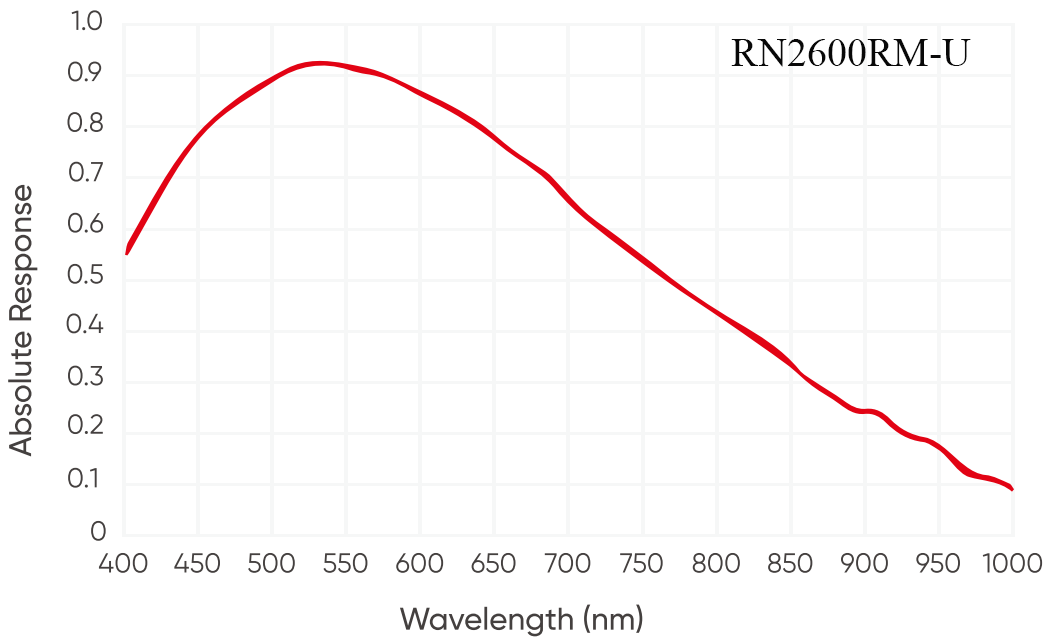

Spectral Response Curve 3 — Graph

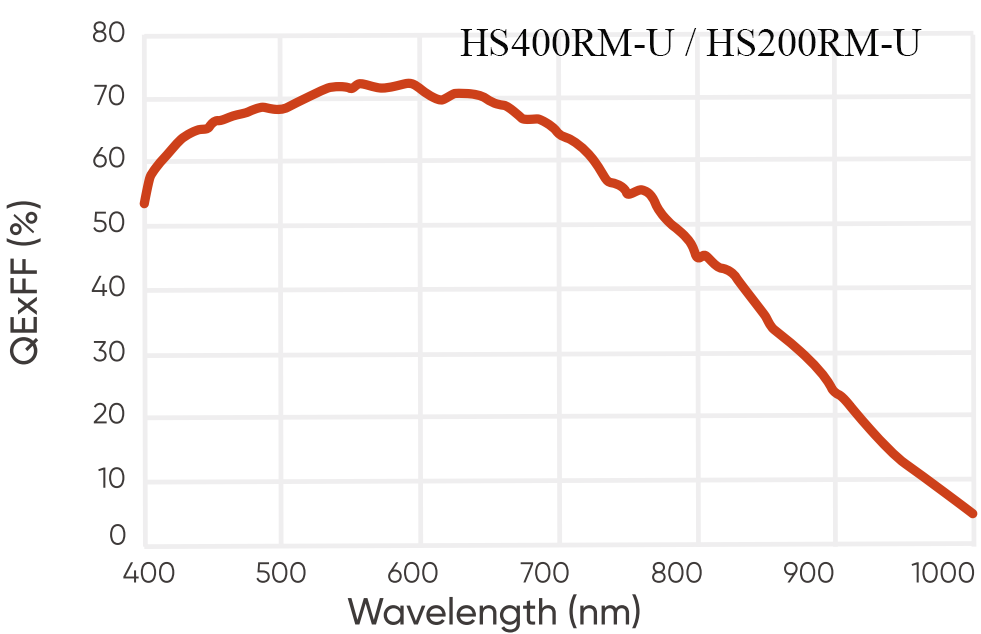

Spectral Response Curve 4 — Graph

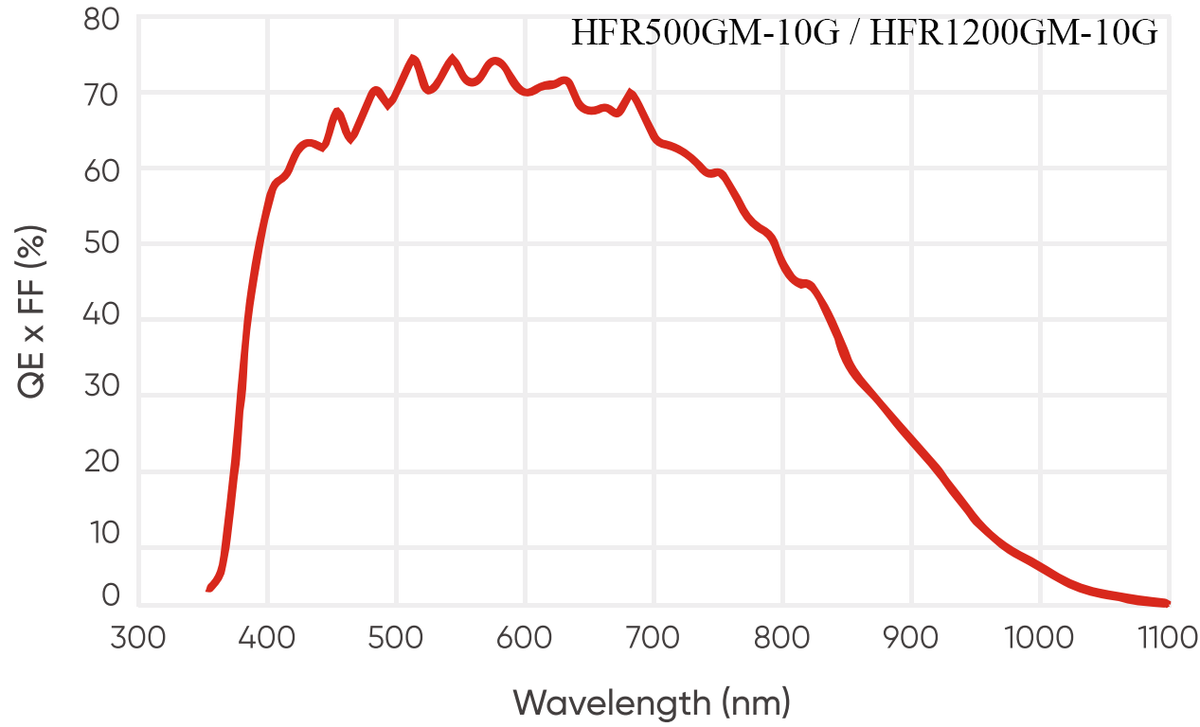

Spectral Response Curve 5 — Graph

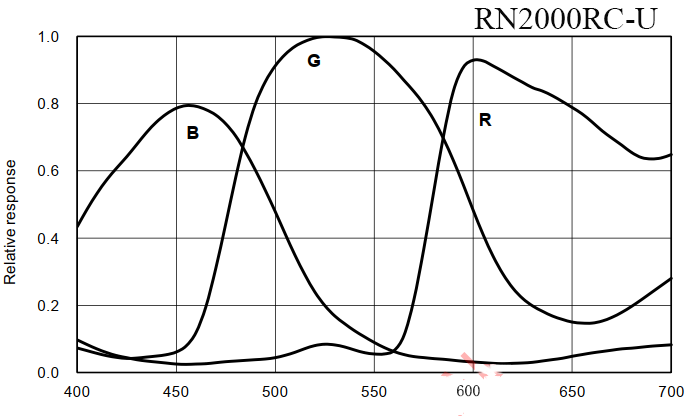

Spectral Response Curve 6 — Graph

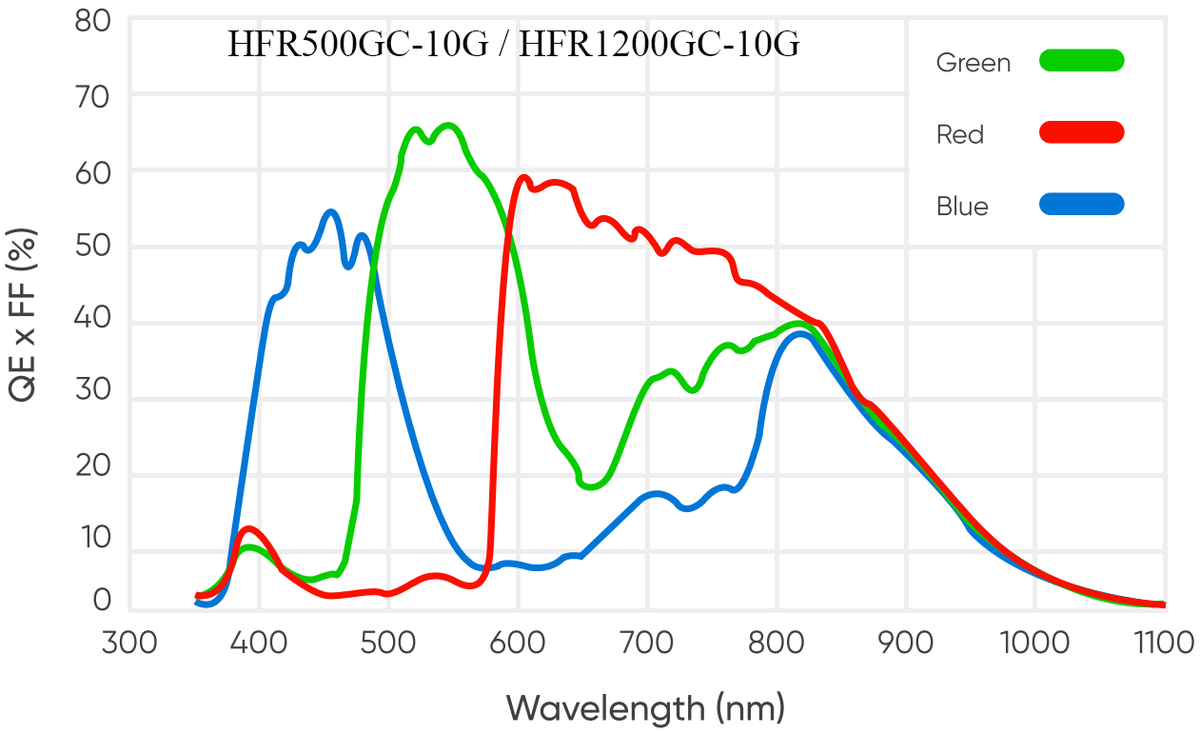

Spectral Response Curve 7 — Graph

Spectral Response Curve 8 — Graph

Product Family: Scientific Research Camera (22 variants)

Product ▴▾	SKU	Spectral range ▴▾	Pixel size ▴▾	Effective pixels ▴▾
High-resolution camera RN900RM-U	`RN900RM-U`	—	—	—	View
High-resolution camera RN2600RM-U	`RN2600RM-U`	—	—	—	View
High-resolution camera RN2000RM-U	`RN2000RM-U`	—	—	—	View
High-resolution camera RN2000RC-U	`RN2000RC-U`	—	—	—	View
High Sensitivity Camera HS400RM-U	`HS400RM-U`	—	—	—	View
High Sensitivity Camera HS200RM-U	`HS200RM-U`	—	—	—	View
High-speed cooling camera HFR1200GM-10G	`HFR1200GM-10G`	—	—	—	View
High-speed cooling camera HFR500GC-10G	`HFR500GC-10G`	—	—	—	View
High-speed cooling camera HFR500GM-10G	`HFR500GM-10G`	—	—	—	View
High-speed cooling camera HFR1200GC-10G	`HFR1200GC-10G`	—	—	—	View
High sensitivity sCMOS camera Dhyana 400BSl V3	`Dhyana 400BSl V3`	—	—	—	Contact
High sensitivity sCMOS camera Dhyana 400BSl V3	`Dhyana 400BSl V3`	—	—	—	Contact
Scientific Research Camera HFR500GM-10G	`HFR500GM-10G`	400-1000 nm	3.4 μm × 3.4 μm	5MP	View
Scientific Research Camera HFR500GC-10G	`HFR500GC-10G`	400-650nm	3.4 μm × 3.4 μm	5MP	View
Scientific Research Camera HFR1200GM-10G	`HFR1200GM-10G`	400-1000 nm	3.4 μm × 3.4 μm	12MP	View
Scientific Research Camera HFR1200GC-10G	`HFR1200GC-10G`	400-650 nm	3.4 μm × 3.4 μm	12MP	View
Scientific Research Camera HS400RM-U	`HS400RM-U`	400-1000 nm	6.5 μm × 6.5 μm	4MP	View
Scientific Research Camera HS200RM-U	`HS200RM-U`	400-1000 nm	6.5 μm × 6.5 μm	2MP	View
Scientific Research Camera RN2600RM-U	`RN2600RM-U`	400-1000 nm	3.76 μm × 3.76 μm	26MP	View
Scientific Research Camera RN2000RM-U	`RN2000RM-U`	400-1000 nm	2.4 μm × 2.4 μm	20MP	View
Scientific Research Camera RN2000RC-U	`RN2000RC-U`	400-650 nm	2.4 μm × 2.4 μm	20MP	View
Scientific Research Camera RN900RM-U Current	`RN900RM-U`	400-1000 nm	3.76 μm × 3.76 μm	9MP
