RN900RM-U
LBTek

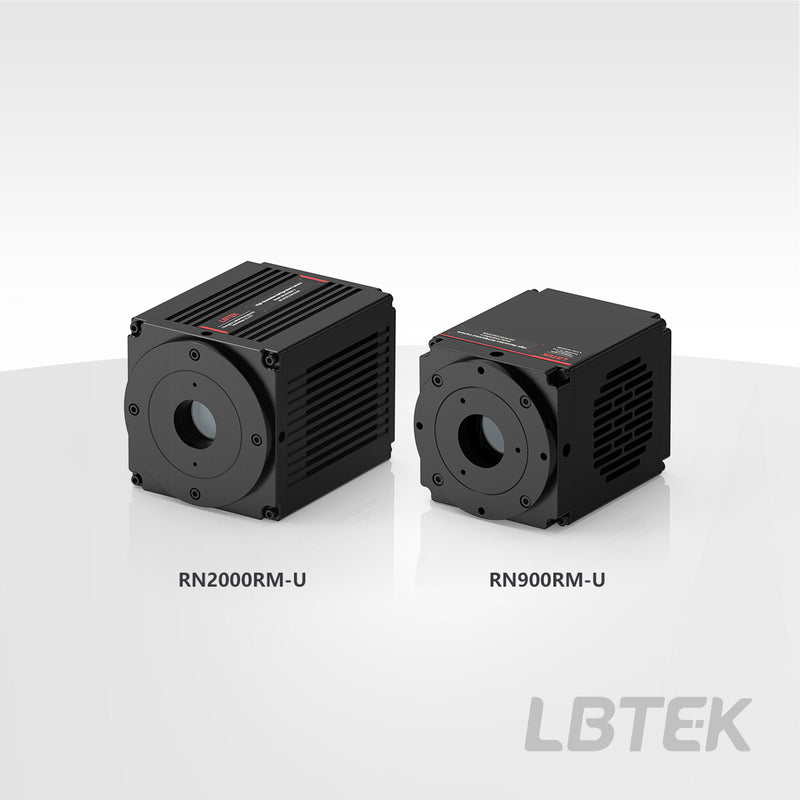

High-resolution camera RN900RM-U

RN900RM-U
$3,530.01
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

LBTEK's high-resolution  cameras feature a USB 3.0 data transmission interface, with pixel counts ranging from 9 to 26 megapixels and a quantum efficiency of up to 92%. They are characterized by high quantum efficiency and low noise. Among them, the RN2000RC-U is a color camera suitable for color fluorescence imaging, while the other three models are monochrome cameras. The optical interfaces include M42 and C-Mount types. All four sides of the cameras are equipped with 1/4-20 threaded holes, allowing each side to serve as a mounting surface for convenient installation in free-space applications. For the three cameras with a C-Mount optical interface, they can be integrated into a 30 mm coaxial system using SM1 threaded adapters, such as the SM1-CC, to connect to SM1 coaxial mounting plates or SM1 lens tubes.

Key Features

  • Up to 26 million pixels
  • C-Mount/M42 optical interface

Application

Camera Rear Interface Diagram

Spectral range 400-1000 nm
color Black and white
Sensor Diagonal 15.96 mm
Sensor Format 11.28 mm × 11.28 mm
Pixel size 3.76 μm × 3.76 μm
Resolution 3000 × 3000
Effective pixels 9MP
Quantum Efficiency 92% @ 540 nm
Optical Interface C-Mount
Interface USB 3.0
Dark Current ＜0.0005 e - /p/s
Transimpedance Gain Gain 0，Gain1，Gain 2，Gain 3
Full Well Capacity 48 ke - @ Gain0；16 ke - @ Gain1； </br>7.8 ke - @ Gain2；3.1 ke - @ Gain3
Read Noise 2.5 e - @ Gain0；1.0 e - @ Gain1； </br>0.85 e - @ Gain2；0.7 e - @ Gain3
Material 19 fps @ Standard Mode, 12fps @ Low Noise Mode
Shutter Mode Rolling Shutter
Exposure Time 15 μs ~ 60 min
Bit Depth 14bit，16 bit
Cooling Method Air cooling
Trigger Connector Hirose - 6 - Pin
Power Supply 12 V/6A
Power Consumption ≤ 46W
Size 76 mm × 76 mm × 98.5 mm
Weight 835 g
SDK / API Support C, C++, C#, Python
Operating Environment Temperature 0~40℃, Humidity 10~85%
Storage Environment Temperature - 10~60℃, Humidity 0~85%
