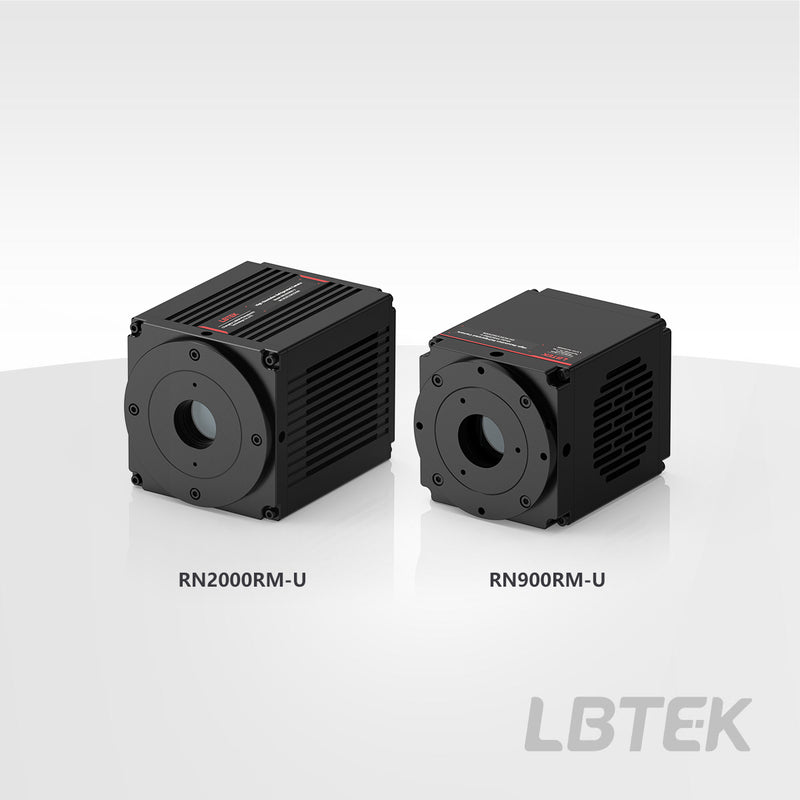

Scientific Research Camera — Model RN2000RM-U

20MP Scientific Research Camera with USB 3.0 interface; 400-1000 nm spectral response, 2.4 μm × 2.4 μm pixel size.

Overview

LBTEK's high-resolution cameras feature a USB 3.0 data transmission interface, with pixel counts ranging from 9 to 26 megapixels and a quantum efficiency of up to 92%.

They are characterized by high quantum efficiency and low noise.

Among them, the RN2000RC-U is a color camera suitable for color fluorescence imaging, while the other three models are monochrome cameras.

Key Features

Up to 26 million pixels
C-Mount/M42 optical interface

Spectral range	400-1000 nm
color	Black and white
Diagonal size	15.86 mm
Sensor size	13.1 mm × 8.8 mm
Pixel size	2.4 μm × 2.4 μm
Resolution	5472 ×3648
Effective pixels	20MP
Peak Quantum Efficiency	84%@535nm
Optical Interface	C-Mount
Data Interface	USB 3.0
Dark current	0.001e-/pixel/s
gain	Analog gain, digital gain
Full well capacity	16 ke-
Readout noise	0.6 e -
Frame rate	16 fps@5472 ×3648 （8 bit）
Shutter Mode	Rolling Shutter
Exposure time	3 μs ~ 60 min
Bit Depth	8bit，16 bit
Cooling method	Air cooling
Trigger input/output interface	Hirose - 6 - Pin
Power Supply	12 V/8A
Power consumption	36W (Total Unit)
Size	85 mm × 85 mm × 112 mm
weight	980 g
SDK (Software Development Kit)	C, C++, C#, Directshow
Operating Environment	Temperature 0~40℃, Humidity 10~85%
Storage environment	Temperature - 10~60℃, Humidity 0~85%

Specification Sheet PDF — Download

User Manual PDF

Lead Time: 0.0 week0.0s

CAD Drawing Download

3D Model (STL) STL — Download

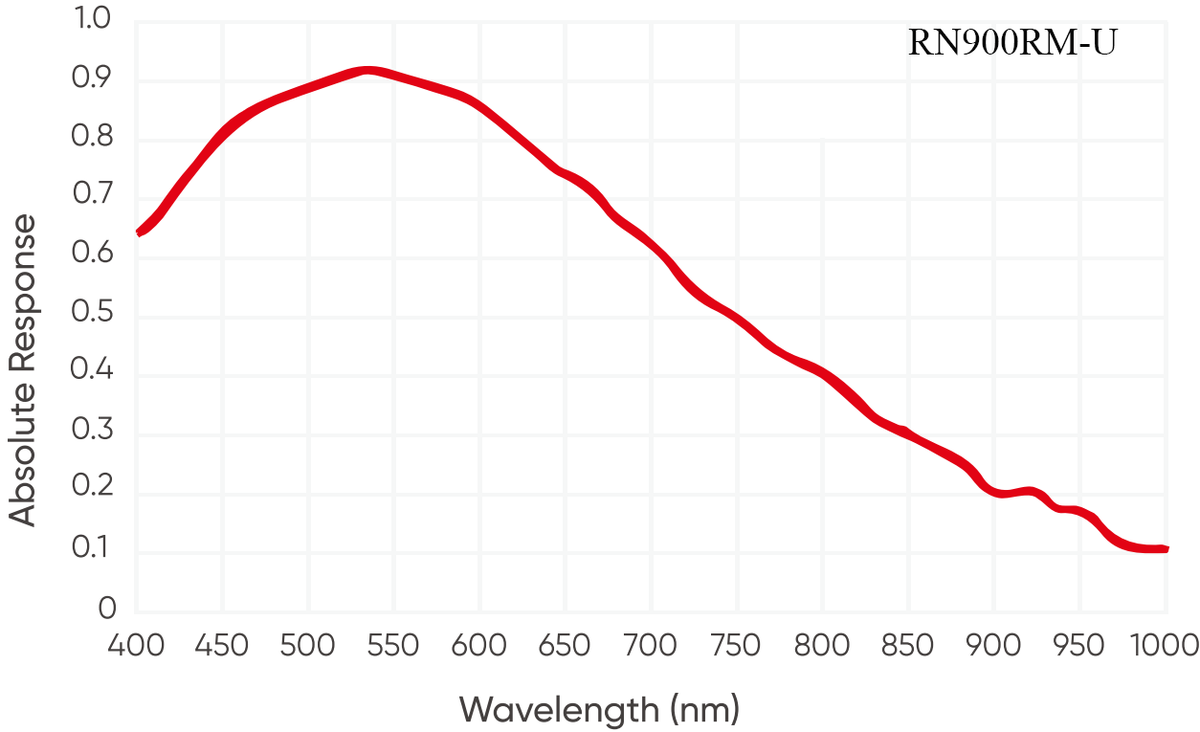

Spectral Response Curve 1 — Graph

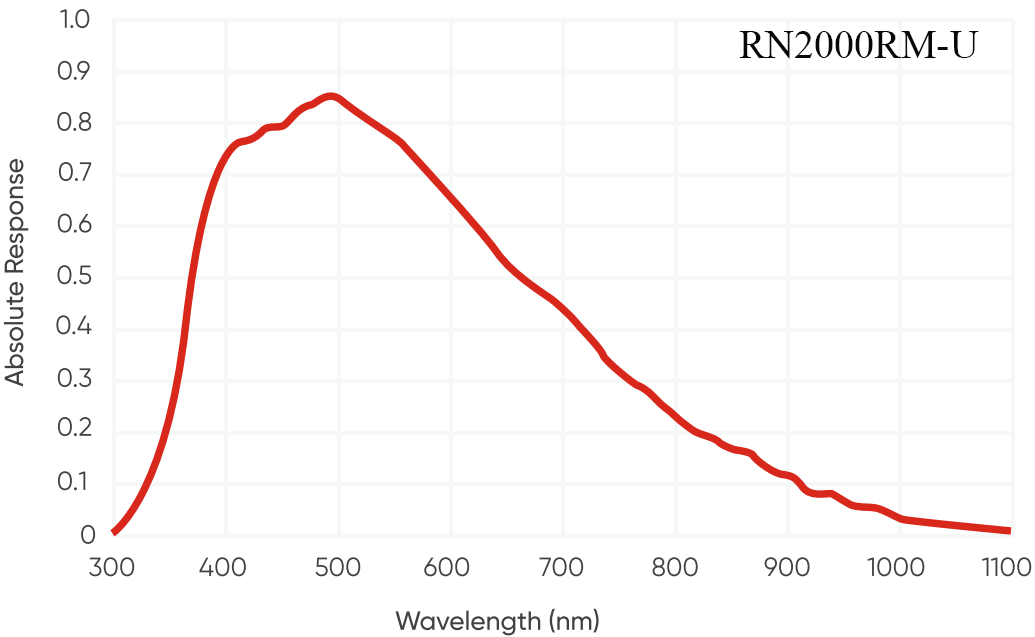

Spectral Response Curve 2 — Graph

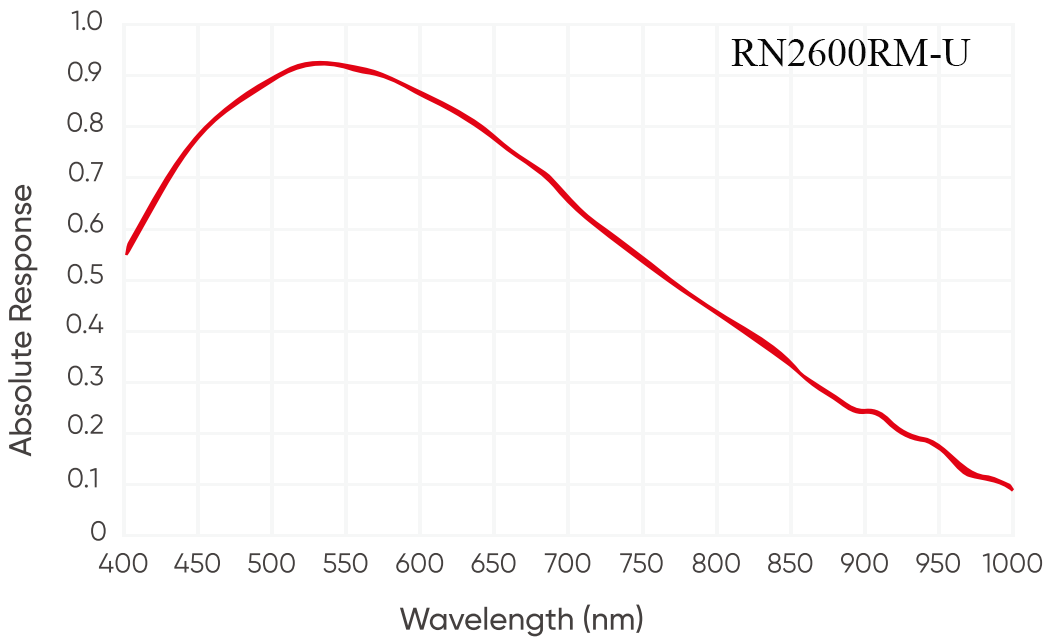

Spectral Response Curve 3 — Graph

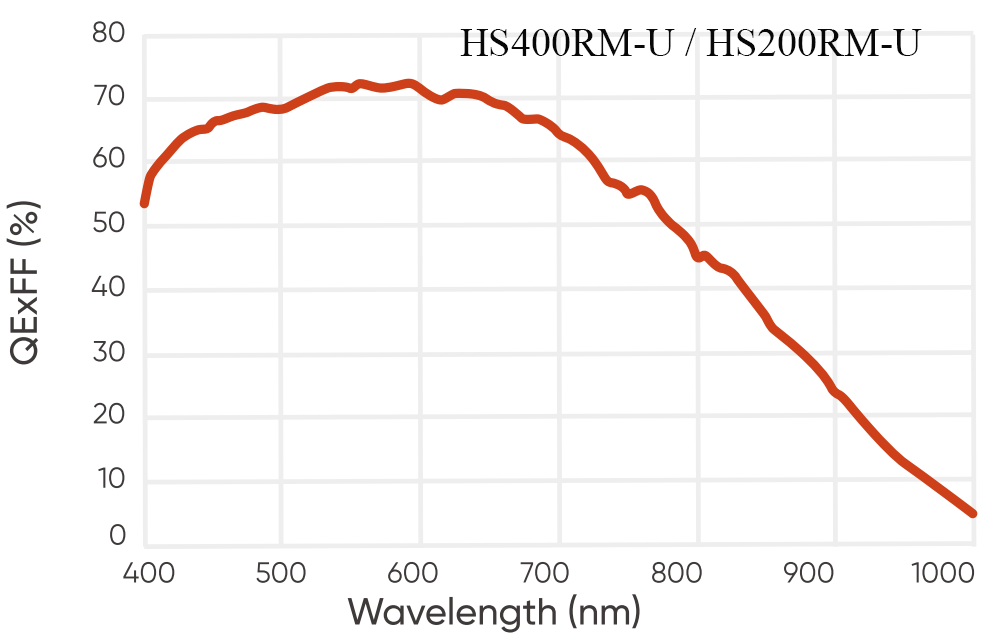

Spectral Response Curve 4 — Graph

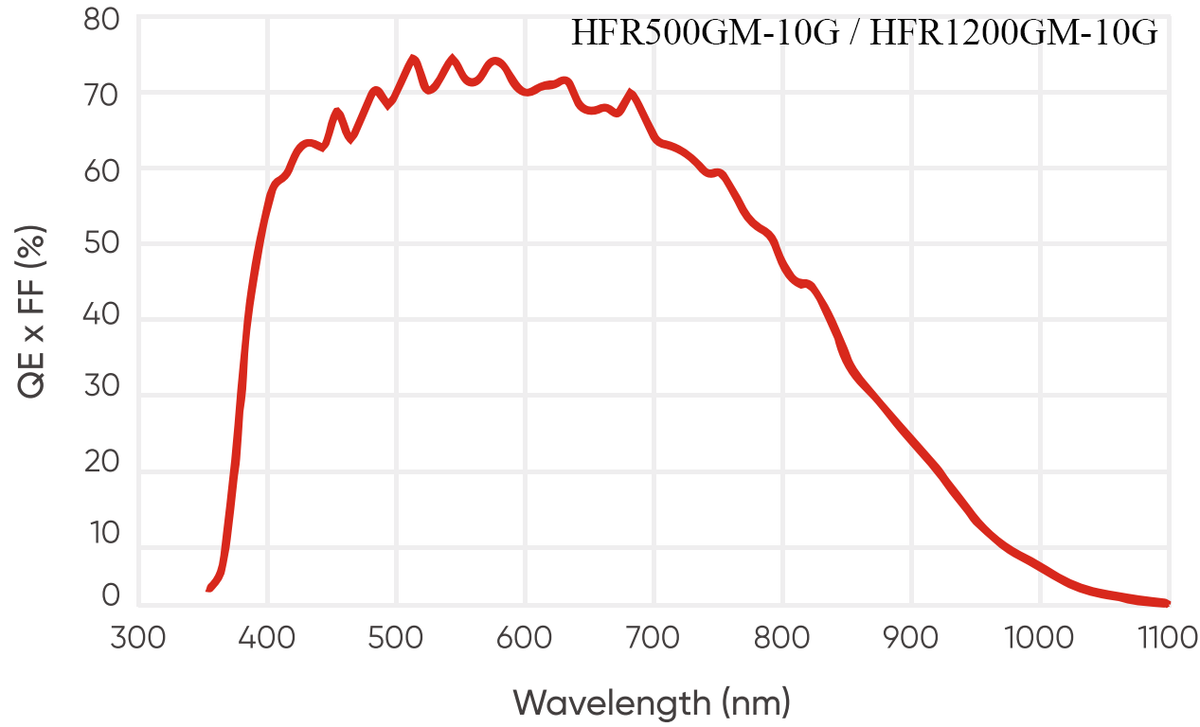

Spectral Response Curve 5 — Graph

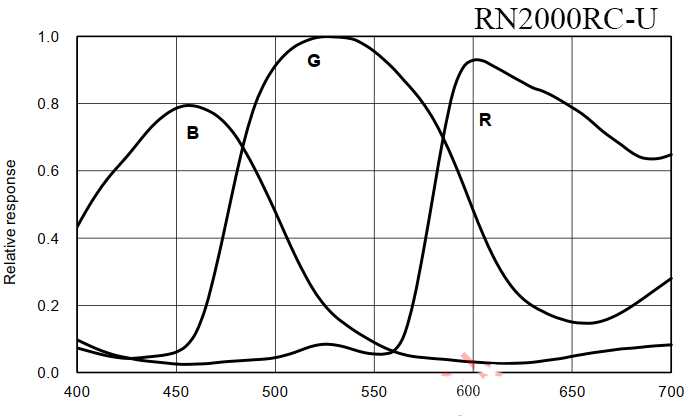

Spectral Response Curve 6 — Graph

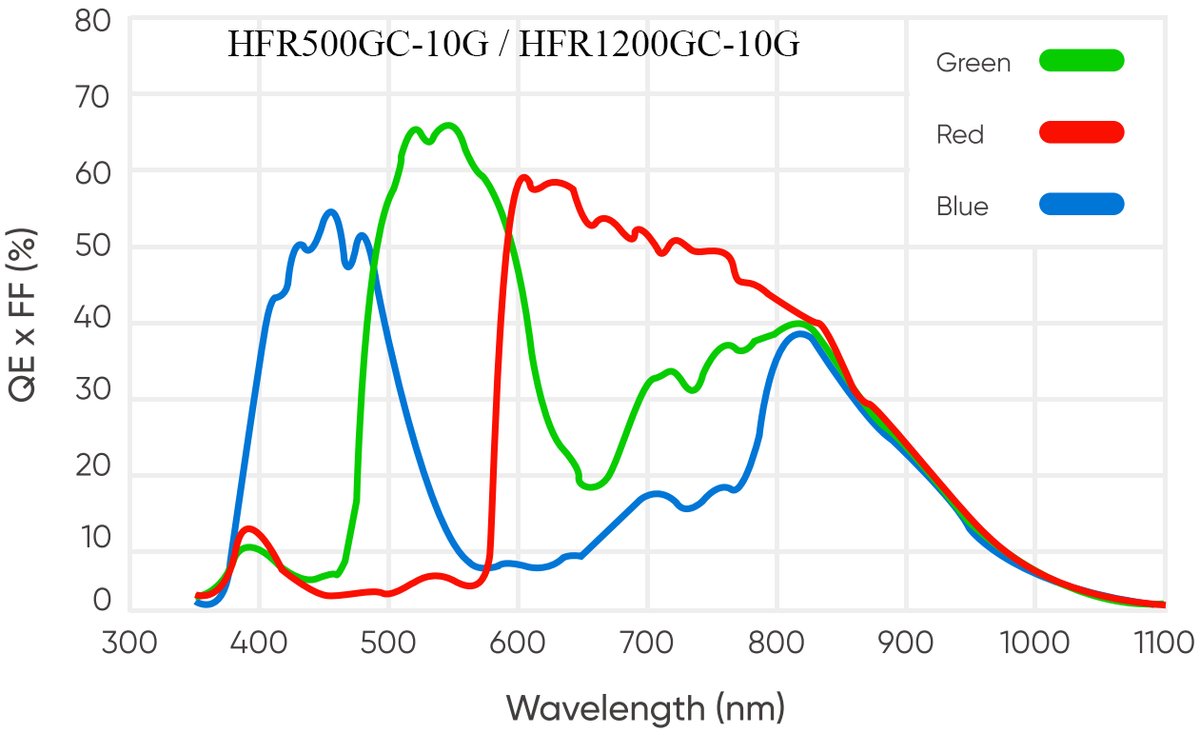

Spectral Response Curve 7 — Graph

Spectral Response Curve 8 — Graph
