WaveQuanta

Scientific Research Camera HFR1200GC-10G

HFR1200GC-10G
$3,111.64
In Stock· Ships in 3.0 weeks
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS REACH

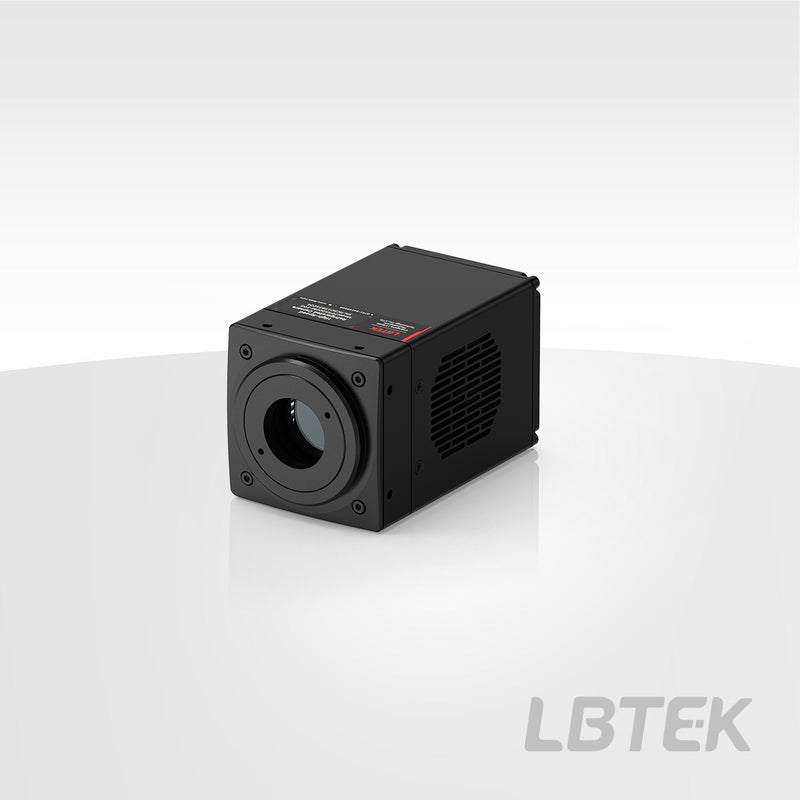

Scientific Research Camera — Model HFR1200GC-10G

12MP Scientific Research Camera with 10G GigE interface; 400-650 nm spectral response, 3.4 μm × 3.4 μm pixel size.

Overview

LBTEK's high-speed cooled cameras utilize a 10G GigE data transfer interface to achieve high-speed imaging, with imaging speeds several times faster than USB3.0.

The maximum full resolution speed can reach up to 100 fps @12 bit and 164 fps @ 8 bit, significantly enhancing the batch data throughput efficiency of instrument systems.

The pixel options include 5 megapixels and 12 megapixels.

Key Features

  • C-Mount optical interface
  • Maximum full resolution speed up to 100 fps @12 bit and 164 fps @ 8 bit
Spectral range400-650 nm
colorColorful
Diagonal size17.4 mm
Sensor size14.0 mm × 10.5 mm
Pixel size3.4 μm × 3.4 μm
Resolution4096×3072
Effective pixels12MP
Peak Quantum Efficiency74%@540 nm
Optical InterfaceC-Mount
Data Interface10G GigE
Dark current0.5 e-/p/s @ 10°C
gainHigh Capacity, Balanced, Sensitive
Full well capacity12 bit：9 ke-@Gain 1，0.6 ke- @Gain 2
Readout noise12 bit: 3.9 e- @ Gain 1，2.6 e- @ Gain 2，1.8 e- @ Gain 3
Frame rate97 fps @ 8bit，65 fps@10bit，63 fps @12bit
Shutter ModeGlobal Shutter
Exposure time8bit：2 μs ~ 10 s；10/12bit：3us ~ 10s
Bit Depth8 bit，10 bit，12 bit
Cooling methodAir cooling
Trigger input/output interfaceHirose-12-Pin
Power Supply12 V /5 A
Power consumption30 W
Size60 mm × 60 mm × 100 mm
weight500 g
SDK (Software Development Kit)C，C++，C#，Python
Operating EnvironmentTemperature: 0~40 ℃, Humidity: 10~85%
Storage environmentTemperature: -10~60 °C, Humidity: 0~85 %
Specification Sheet PDF — Download
User Manual PDF
Lead Time: 3.0 week1s
CAD Drawing Download
3D Model (STL) STL — Download

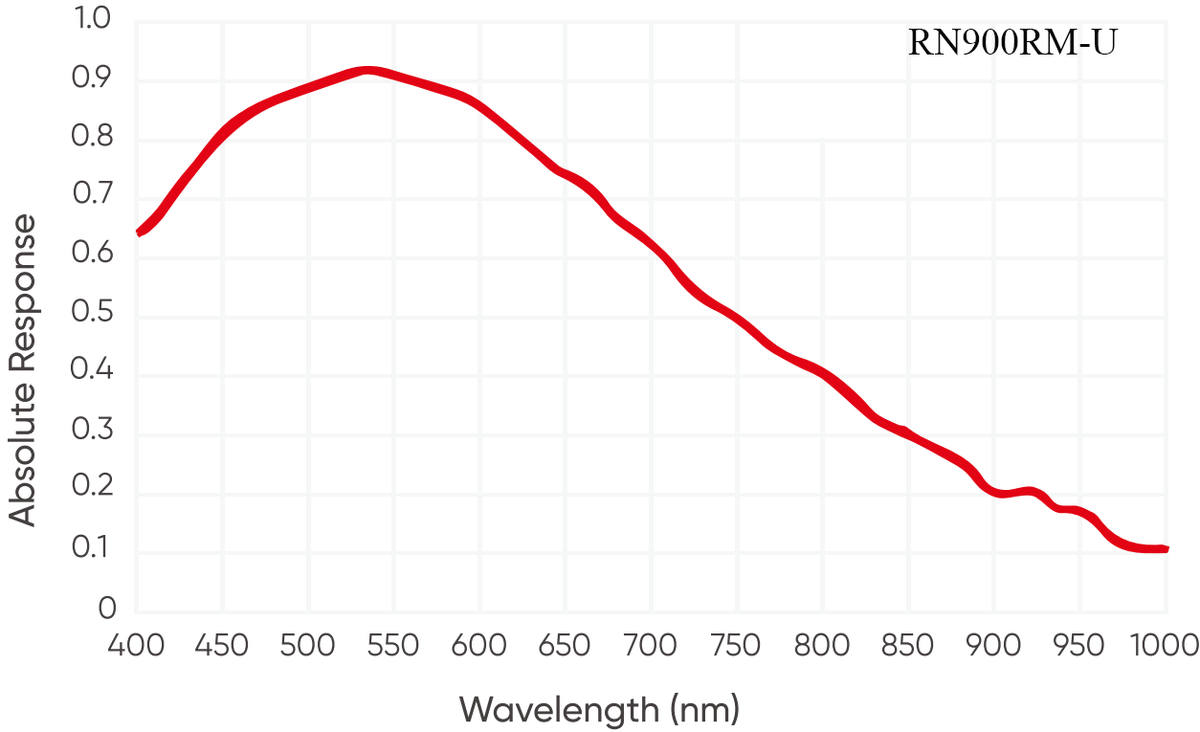

Spectral Response Curve 1 — Graph
Spectral Response Curve 1 — Graph

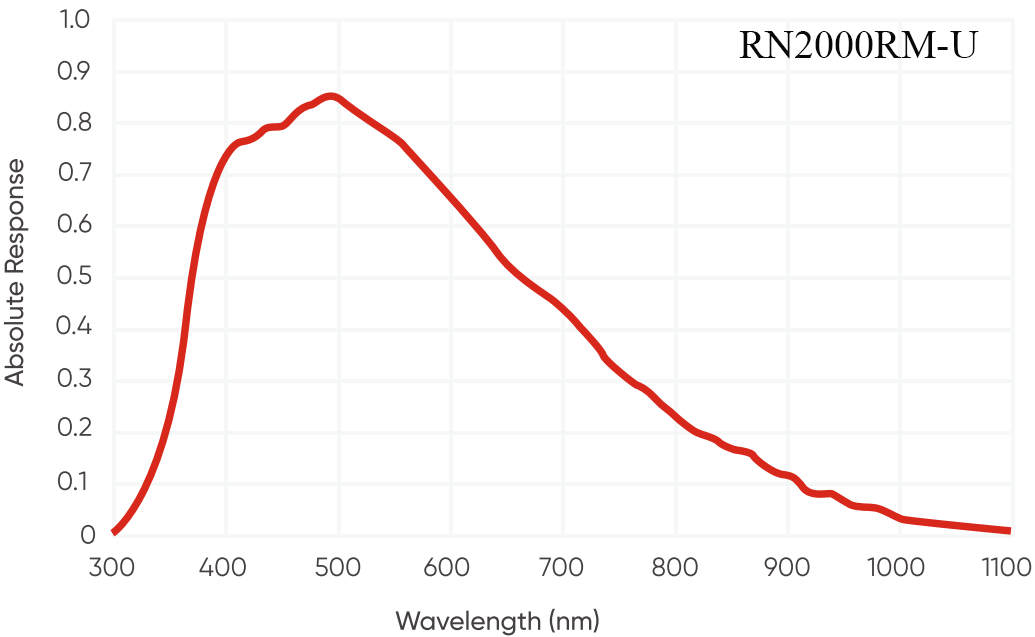

Spectral Response Curve 2 — Graph
Spectral Response Curve 2 — Graph

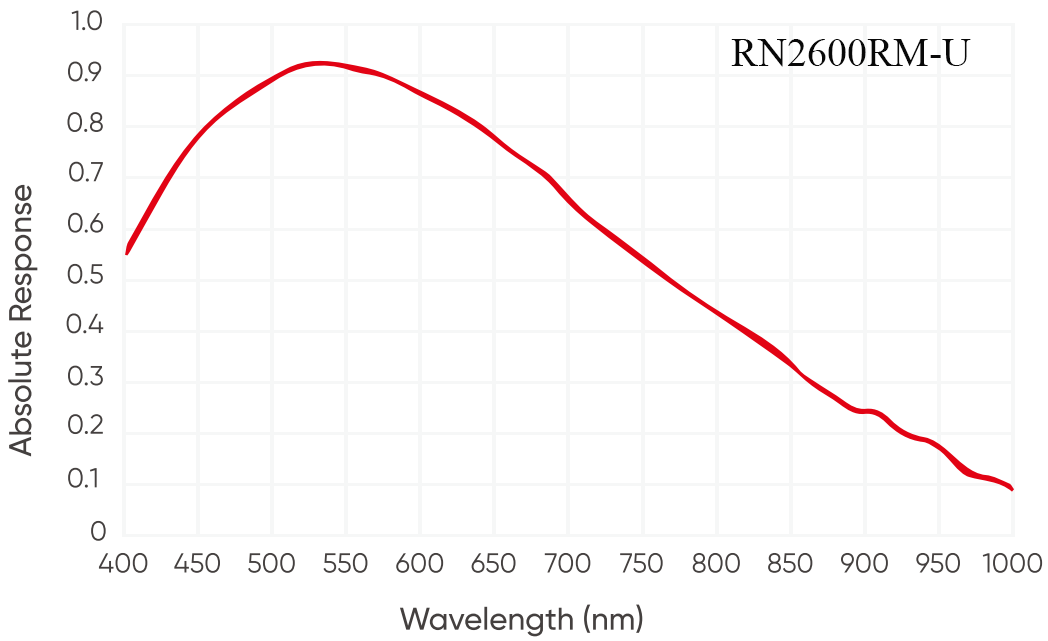

Spectral Response Curve 3 — Graph
Spectral Response Curve 3 — Graph

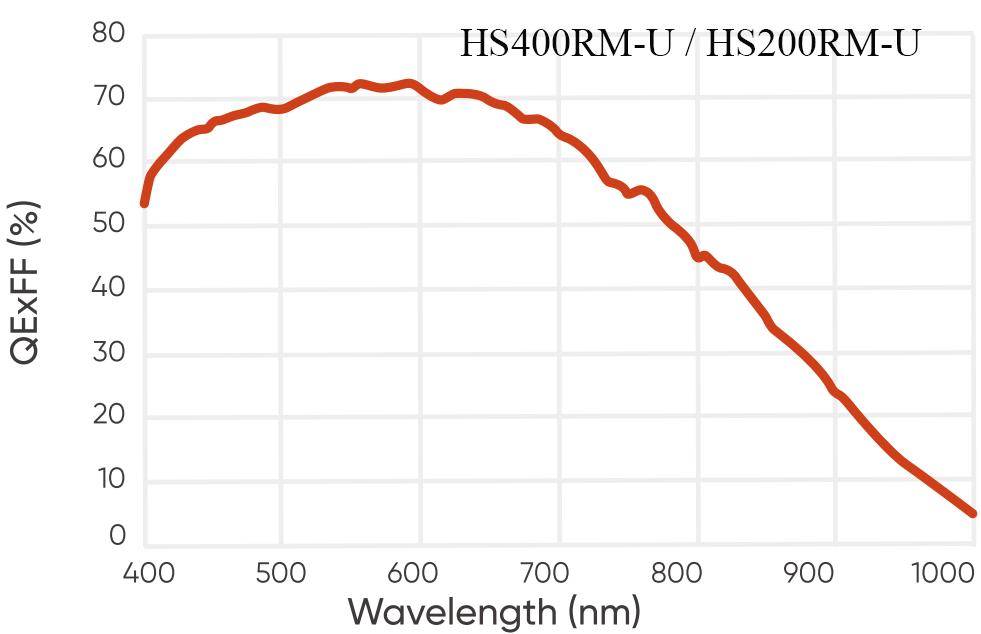

Spectral Response Curve 4 — Graph
Spectral Response Curve 4 — Graph

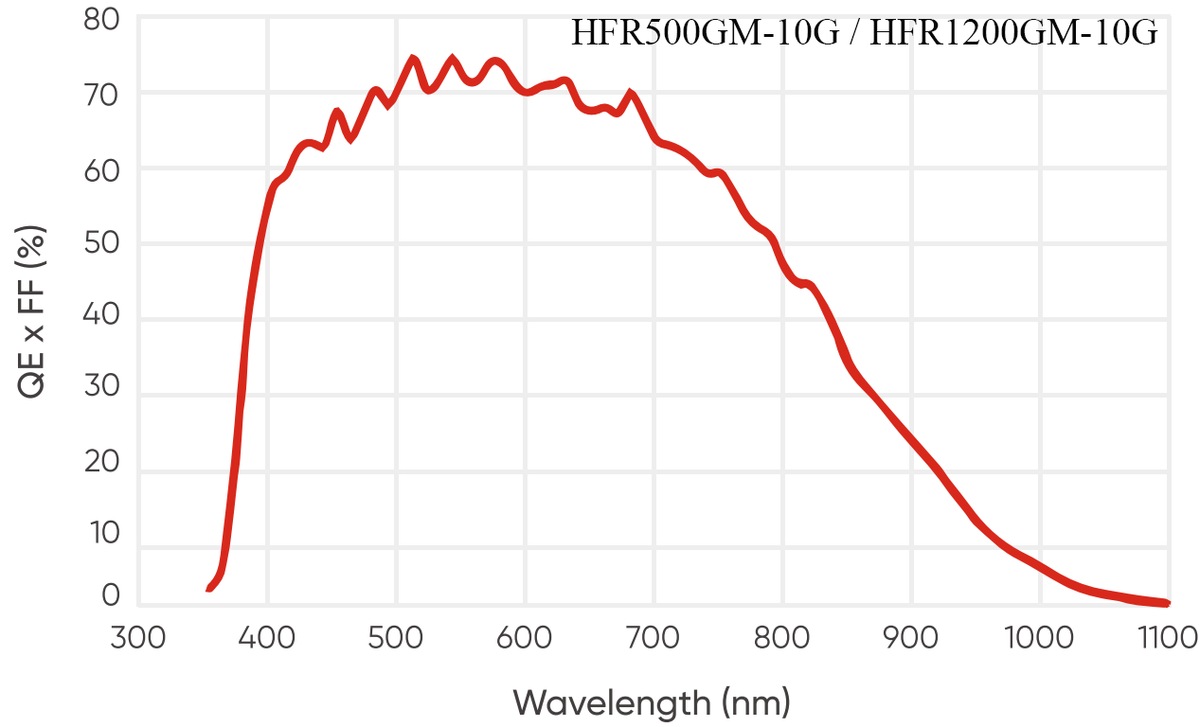

Spectral Response Curve 5 — Graph
Spectral Response Curve 5 — Graph

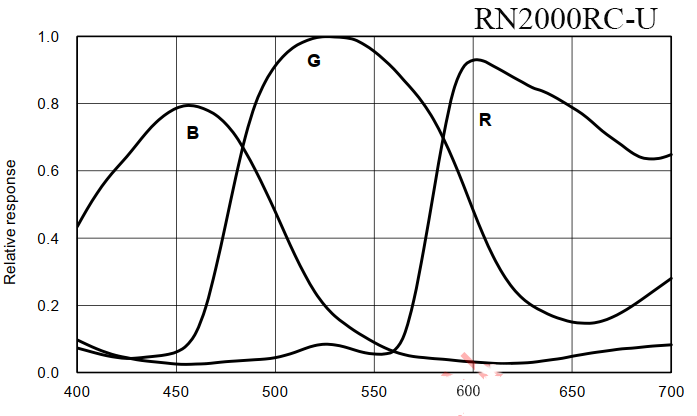

Spectral Response Curve 6 — Graph
Spectral Response Curve 6 — Graph

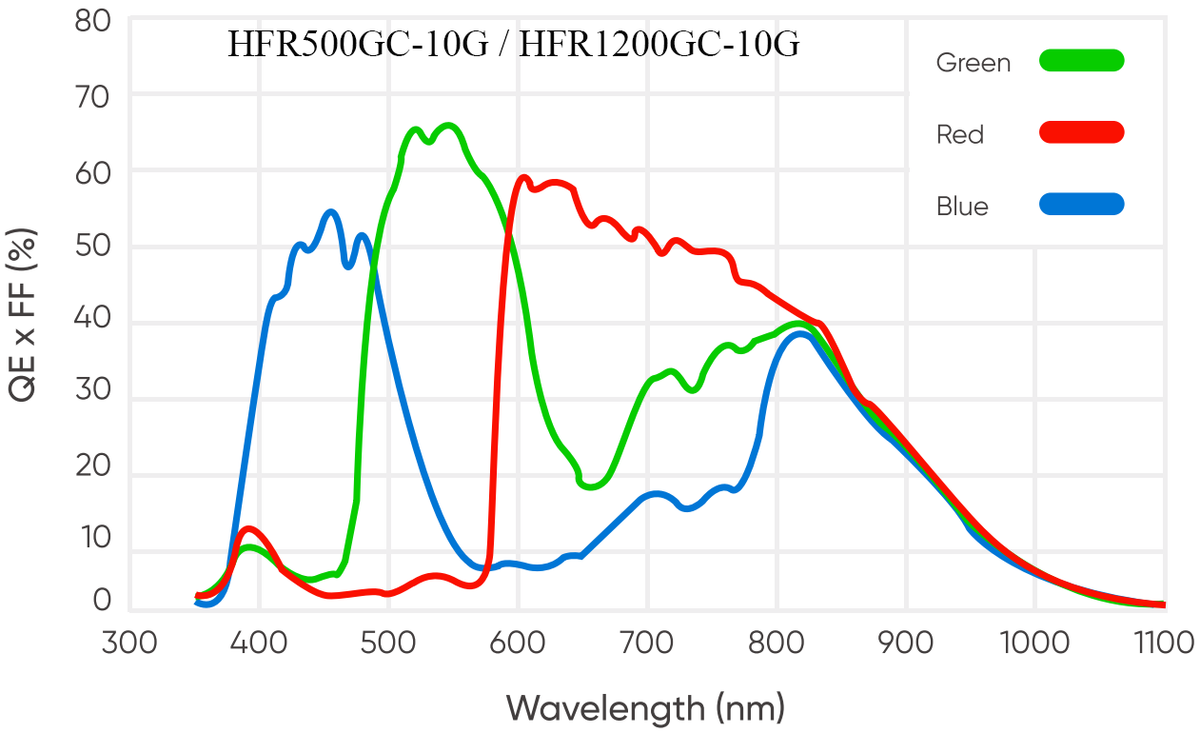

Spectral Response Curve 7 — Graph
Spectral Response Curve 7 — Graph
Spectral Response Curve 8 — Graph
Spectral Response Curve 8 — Graph
