PreciLasers

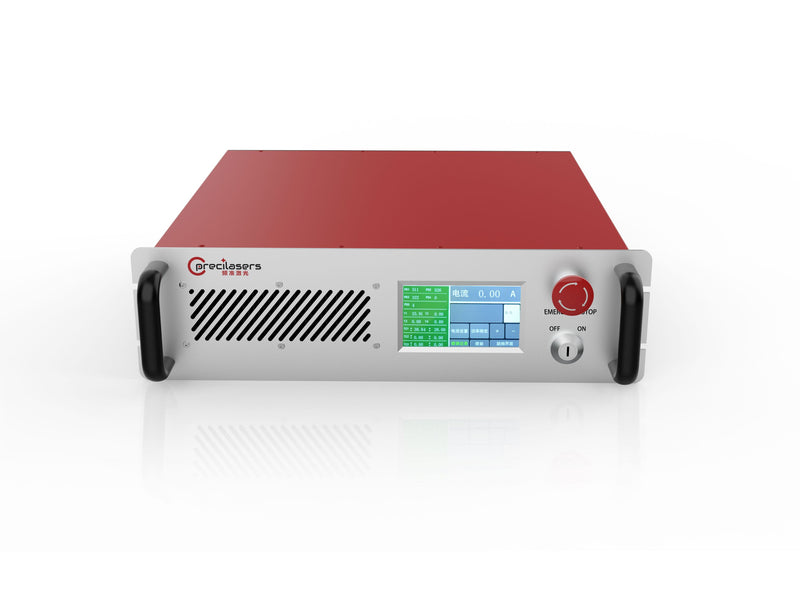

1012-1156nm Laser — Narrow Linewidth CW Laser
PL-NL-1012-1156Contact for pricing
In Stock
Key Specifications
Contact Sales
Wavelength1012–1156nm
Avg Power
2.0W
Design Tools
Watt ↔ dBm Converter
Convert between optical power units
Wavelength ↔ Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
1012-1156nm Laser Based on Yb-doped fiber DFB seed laser and Yb-doped fiber amplifier, Precilasers can provide narrow linewidth lasers in 1012-1156nm range, and maximum power of 200W, all of these lasers has very low phase noise and intensity noise.
Features
- Ultra
- Output Power Excellent Beam
- Quality Seed Power Off
- Protection System Low Noise
Applications
- Continuous
- Wave Mid
- Infrared Optical Parametric Oscillator
- Pump Source Optical Lattice
- Optical Trap Interferometric Metrology
- Holographic Imaging
| Models | FL-SF-X-Y-CW (1) |
|---|---|
| Wavelength range | 1014-1020nm / 1020-1080nm / 1080-1095nm / 1095-1110nm / 1110-1156nm |
| Output power | 2W/10W/30W/50W/100W / 2W/10W/30W/50W/100W/130W/160W/200W / 2W/10W/30W/50W/100W / 2W/10W/30W / 2W/5W/10W |
| Frequently used wavelength | 1018nm, 1064nm, 1112nm |
| Seed laser type | Fiber DFB seed laser (1014-1156nm)/Fixed external cavity diode laser (FECL, 1014-1156nm) |
| Linewidth(100µs Integration Time) | <3kHz/5kHz@DFB seed/<10kHz/30kHz@FECL seed |
| Total tuning range (Temperature) | >0.7nm / >5GHz |
| Fast tuning bandwidth | >5kHz, PZT tuning@DFB Seed/>1MHz, Current tuning@FECL Seed |
| Fast tuning range | >3GHz/10GHz@DFB Seed/>500MHz@FECL Seed |
| AOM tuning bandwidth (optional) | >500kHz |
| AOM tuning range (optional) | >±5MHz |
| Relative intensity noise | <0.03% (RMS, 10Hz-10MHz integration) |
| Power stability | <0.75% @3hours, RMS |
| Power tuning range | 1-100% |
| Output mode | PM fiber with FC/APC connector (Power≤2W) OR Free space collimated output (For all power) |
| Beam diameter (2) | 0.6±0.2mm(Power≤30W), 1.7±0.2mm(Power>30W) |
| Pointing stability | <±2µrad/°C |
| Beam quality | TEM00, M²<1.1 |
| Polarization | Linear, >23dB |
| Output isolaton | >25dB |
| Cooling | Air cooling (Power≤20W)/Water cooling (For all power) |
| Temperature | 15-30 °C (Air cooling) OR 15-35 °C (Water cooling) |
| Power supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
