840nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

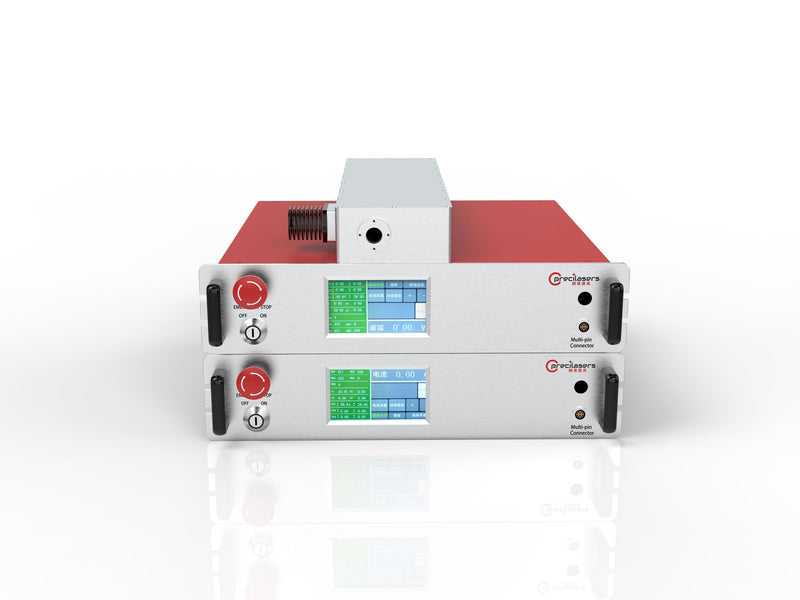

840nm Narrow linewidth laser Based on high-power, low-noise fiber lasers amplification and sum-frequency technology, Precilasers can 840nm provide high-power, narrow linewidth laser output .
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality Never
- Mode
- High Temperature And Vibration
- Resistance
Applications
- Quantum Computing
- Rb Quantum Computing Quantum
- Precision Measurement
- Sr Atomic Clock Quantum
- Precision Measurement
- Cs Fountain Clock Quantum
- Precision Measurement
- Rydberg Field Measurement
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength | 840nm |
| Output Power | 2W/4W/6W/8W/10W/15W/30W |
| RIN | <0.05% (10Hz-100MHz, RMS) |
| Thermal Tuning Range | >0.15nm, Never Mode-hop |
| Output Mode | Free Space Output, Beam Diameter 0.7-1.0mm |
| Linewidth (2) (100us) | <20kHz |
| PER | >20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | M 2 <1.1 |
| Fast Frequency Tuning Range | >500MHz |
| Fast Frequency Tuning Bandwidth | >1MHz |
| PZT Frequency Tuning Range | >3GHz |
| PZT Frequency Tuning Bandwidth | >5kHz |
| Cooling | Air Cooling(Output Power≤2W) Or Water Cooling |
| PM Fiber Output | For output power≤2W lasers, single-mode polarization-maintaining fiber output can be selected. |
| Temperature | 15-30°C |
| Power Consumption | <400W |
| Power Supply | 100V-240V, AC, 50/60Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
