PreciLasers

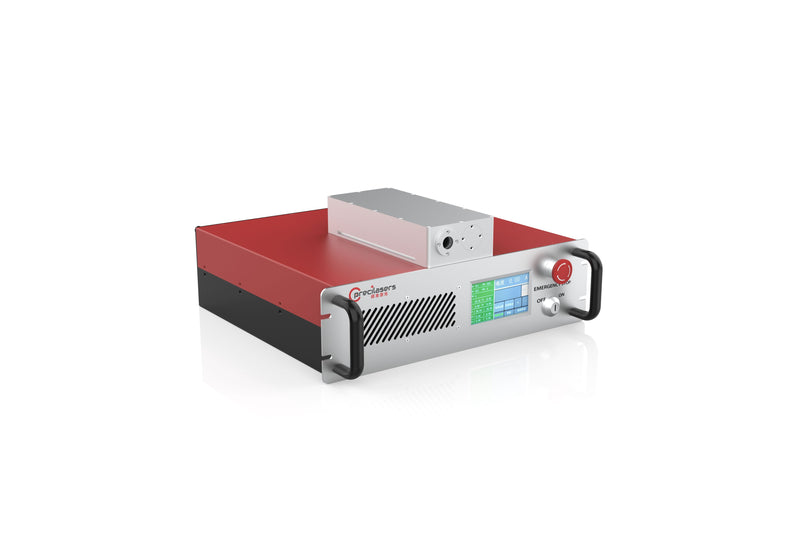

880-1012nm Laser — Narrow Linewidth CW Laser
PL-NL-880-1012Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
0.2W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
880-1012nm Laser Based on high-power, low-noise Tm-doped fiber lasers amplifier and frequency doubling technology, Precilasers can provide high-power, narrow linewidth laser output from 880 to 1012 nm.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Mode
- Hopping Free High Temperature
- And Vibration Resistance
Applications
- Laser Cooling
- Trapping
- Optical Lattice Biomedical Solar
- Cell Processing
| Models | Specification |
|---|---|
| Model Number | FL-SF-XXXX-YY-CW (1) |
| Wavelength Range | 880-920nm / 920-950nm / 951-1012nm |
| Typical Wavelength | 886nm,895nm / 935nm / 975nm |
| Seed Laser Type | Fiber DFB Seed Laser (1760-2024nm) |
| Output Power | >0.1W/1W/2W/3W/15W / >0.2W/2W/5W/10W / >0.2W/2W/5W/10W |
| Thermal Tuning Range | >0.5nm, Never Mode-hop |
| Output Mode | PM Fiber Output, FC/APC (Output Power ≤2W) OR Free Space Output (Compatible with all versions) |
| Beam Diameter (2) | 0.7-1.0mm |
| Power Tuning Range | 5-100% |
| Beam Pointing Stability | <10µrad |
| Linewidth (3) (100us) | <20kHz |
| PER | linear,>20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | TEM00, M 2 <1.1 |
| Fast Frequency Tuning Range | >3GHz |
| Fast Frequency Tuning Bandwidth | >5kHz |
| AOM Tuning Range (Optional) | >±5MHz |
| AOM Tuning Bandwidth (Optional) | >500kHz |
| RIN | <0.08% (RMS,10Hz-100MHz) |
| Cooling | Air Cooling/Water Cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
