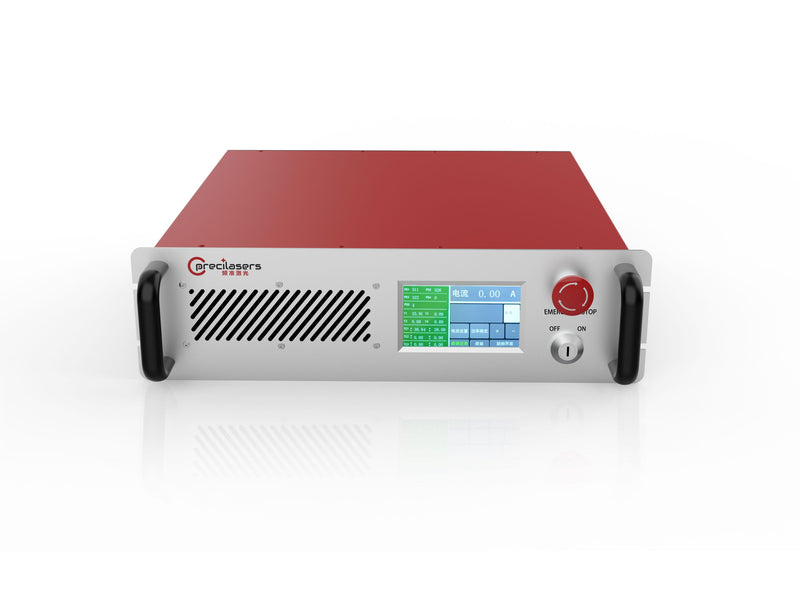

776nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
776nm Narrow linewidth laser Based on a fixed external cavity semiconductor seed laser, a low-noise erbium-doped fiber amplifier, and a high-efficiency frequency doubling module, Precilasers can provide high-power 776nm lasers. They are widely used in quantum precision measurement and optical precision measurement.
Features
- Ultra
- Compact Size Narrow Linewidth
- Tunable Continuous
- Wave Laser
Applications
- Rubidium Atom Quantum Computing
- Rubidium Atom Gravimeter Precision
- Ranging
| Models | FECL-SF-776-X (1) -CW |
|---|---|
| Center Wavelength | 776nm |
| Output Power | 0.2W / 0.5W / 1W / 2W / 4W / 8W / 20W |
| Operating Mode | Continuous |
| Tuning Range (Temperature) | >15GHz, continuous mode-hop-free |
| Output Mode | Single-mode polarization-maintaining fiber output (2) / Spatial collimation output, diameter 0.7-1mm |
| Linewidth (3) (100µs Integration Time) | <10kHz / <20kHz |
| Polarization Extinction Ratio | >20dB |
| Power Stability (3-hour RMS) | <0.75% |
| Beam Quality | M 2 <1.1 |
| Current Tuning Range | >1GHz |
| Current Tuning Bandwidth | >1MHz |
| Cooling | Air Cooling |
| Temperature | 15-25°C (1) |
| Power Supply | 100-240V AC, 50/60Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
