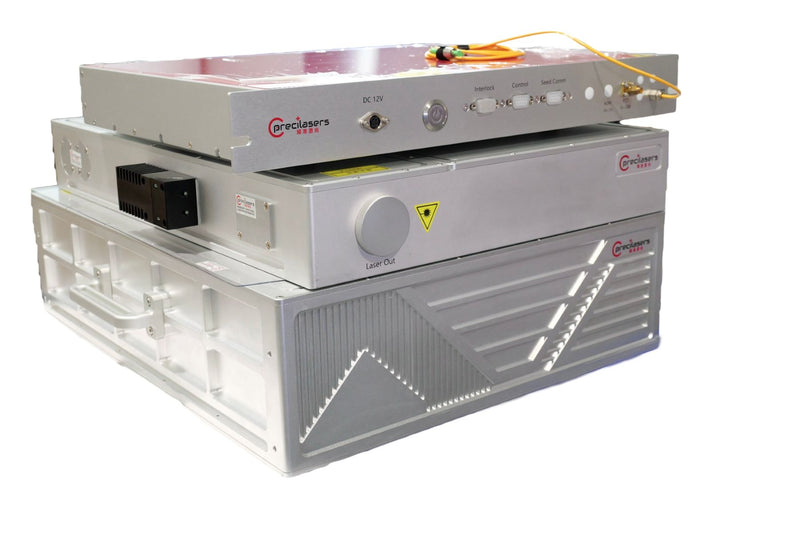

813nm 30W High Power Narrow Linewidth Laser — Narrow Linewidth CW Laser
PL-NL-813-30W-High-Power-Narrow-LinewidthContact for pricing
In Stock
Key Specifications
Contact Sales
Wavelength
813.0nm
Avg Power
30.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
813nm 30W High Power Narrow Linewidth Laser Based on low-noise erbium-doped fiber lasers, thulium-doped lasers, and high-efficiency sum frequency generation modules, Precilasers can provide high-power 813 nm lasers. Featuring high power and low intensity noise, they are suitable for applications in fields such as quantum computing and quantum precision measurement.
Features
- Narrow Linewidth Low
- High Power Excellent Beam
- Quality
Applications
- Lidar Quantum Computing Precision
- Measurement Precision Manufacturing
| Models | Specification |
|---|---|
| Center Wavelength | 813nm |
| Output Power | >30W |
| RIN (10Hz-10MHz) | <0.05% |
| Thermal Tuning Range | >0.15nm |
| Output Mode | Free Space Output, Beam Diameter 0.6-1mm |
| Linewidth (1) (100us) | <20kHz |
| PER | >20dB |
| Power Stability | <0.75%@3hours,RMS |
| Beam Quality | M2<1.1 |
| Current Tuning Range | >500MHz |
| Current Tuning Bandwidth | >1MHz |
| PZT Tuning Range | >3GHz |
| PZT Tuning Bandwidth | >5kHz |
| Cooling | Water Cooling |
| Temperature | 15-35°C |
| Power Consumption | <800W |
| Power Supply | 100V-240V, AC, 50/60Hz |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
