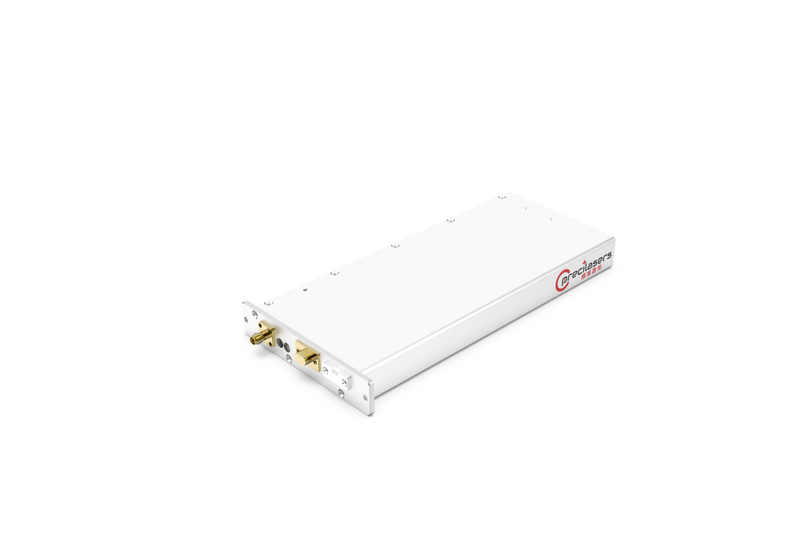

Ultra-low noise laser Precilasers' 1.5 µm low phase noise erbium-doped fiber DFB laser adopts active feedback control technology, which can significantly suppress the phase noise in the key frequency band of 1 Hz–1 kHz. It features a hertz-level ultra-narrow linewidth and ultra-low phase noise, and can stably output an optical power of >10 mW within the wide tunable wavelength range of 1530–1570 nm, providing a high-performance light source for high-precision coherent sensing, quantum communication and other scenarios.
Features
- Ultra
- Ultra
- Wide wavelength tunability Stable
- Excellent beam quality
Applications
- Quantum computing Coherent sensing
- Wind lidar Coherent optical
| Models | Specification |
|---|---|
| Model Number | ULN-15 |
| Optional Central Wavelength Range | 1530-1570nm |
| Output Power | >10mW |
| Output Mode | Single-mode PM fiber output |
| Lorentzian linewidth | <100Hz |
| Linewidth (100 µs integration time) | <1kHz |
| Polarization Extinction Ratio | Linear,>20dB |
| Relative Intensity Noise | <0.08% (RMS,integrated over 10Hz-10MHz) |
| Frequency Noise | <50Hz/sqrt(Hz)@1Hz, <20Hz/sqrt(Hz)@10Hz, <10Hz/sqrt(Hz)@100Hz,<20Hz/sqrt(Hz)@1kHz |
| Relative Intensity Noise Relaxation Oscillation Peak | <-110dBc/Hz |
| Optical Signal-to-Noise Ratio | > 50 dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | TEM00, M 2 <1.1 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
