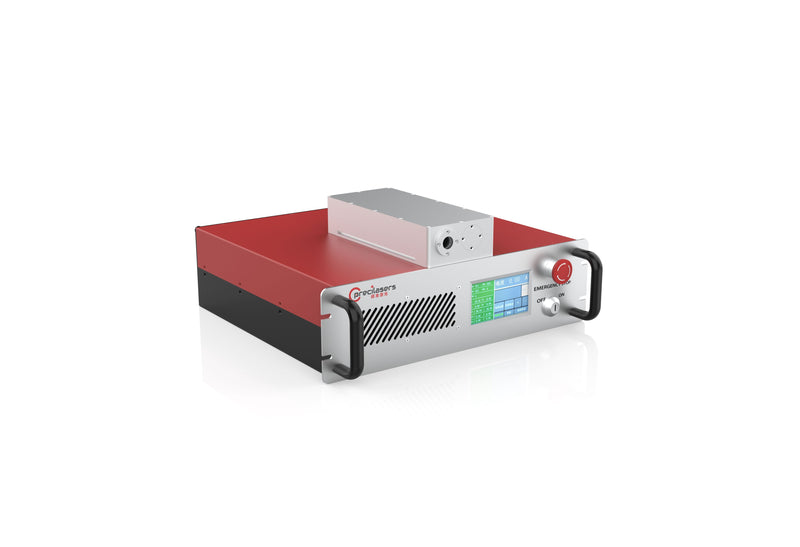

765-798nm Laser — Narrow Linewidth CW Laser
PL-NL-765-798Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
0.2W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
765-798nm Laser Based on high-power, low-noise Er-doped fiber lasers amplification and frequency doubling technology, Precilasers can provide high-power, narrow linewidth laser output with a wavelength ranging from 765 to 798 nm.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High Temperature And Vibration
- Resistance
Applications
- Rb Atom Cooling Magic
- Optical Lattice Atom Interferometry
- Atom Clock
| Models | Specification |
|---|---|
| Model Number | FL-SF-XXXX-YY-CW (1) |
| Wavelength Range | 765-770nm / 770-785nm / 785-798nm |
| Typical Wavelength | 767nm / 770nm / 780nm / 795nm |
| Seed Laser Type | Fiber DFB (1530-1596nm) /Fixed External Cavity Diode Laser (FECL,1530-1596nm) |
| Output Power (2) | >0.2W/2W/6W / >0.2W/2W/8W/15W / >0.2W/2W/4W |
| Thermal Tuning Range | >0.5nm, Never Mode-hop@DFB seed >15GHz, Never Mode-hop@FECL seed |
| Output Mode | PM Fiber Output, FC/APC (Output Power ≤2W) OR Free Space Output (Compatible with all versions) |
| Beam Diameter (3) | 0.7-1.0mm |
| Power Tuning Range | 5-100% |
| Beam Pointing Stability | <10µrad |
| Linewidth (4) (100us) | <2kHz/5kHz@DFB seed <10kHz/20kHz@FECL seed |
| PER | linear,>20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | TEM00, M 2 <1.1 |
| Fast Frequency Tuning Range | >3GHz / >1GHz |
| Fast Frequency Tuning Bandwidth | >5kHz,PZT Tuning@DFB seed >1MHz,Current Tuning@FECL seed |
| AOM Tuning Range (Optional) | >±5MHz DFB seed only |
| AOM Tuning Bandwidth (Optional) | >500kHz DFB seed only |
| RIN | <0.08% (RMS,10Hz-100MHz) |
| Cooling | Air Cooling/Water Cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
