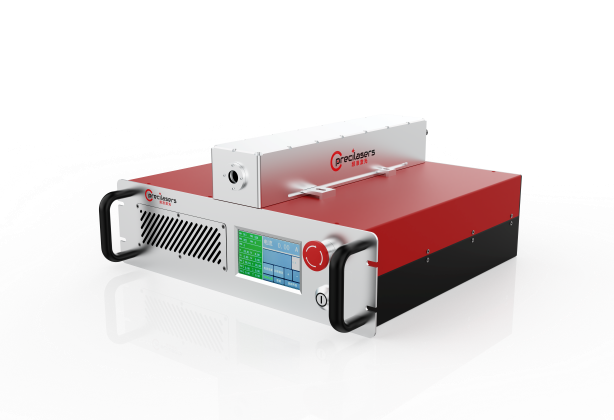

799-811nm — Narrow Linewidth CW Laser
PL-NL-799-811Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
3.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
799-811nm Based on high-power, low-noise erbium-doped fiber amplification and frequency doubling technology, it realizes the output of a high-power, narrow-linewidth laser with any central wavelength within the range of 799–811 nm.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High and Low Temperature
- Resistance with Vibration
- Resistant Operating Environment
Applications
- Precision Measurement Quantum Computing
- Atomic Clock
| Models | Specification |
|---|---|
| Model Number | FL-SF-XXXX-YY-CW (1) |
| Wavelength Range | 799-811nm |
| Operating Mode | CW |
| Output Power | >0.1W/1W/3W |
| Output Mode | Free Space Output |
| Beam Spot Diameter | 0.5~1mm |
| RIN | <0.06% (RMS,10Hz-10MHz) |
| Power Stability (RMS) | <0.75%@3h |
| Tuning Range (Never mode-hop) | >15GHz |
| Current Tuning Range | >1GHz@100mW |
| Current Tuning Bandwidth | >1MHz@100mW |
| PZT Tuning Range | >3GHz@>1W |
| PZT Tuning Bandwidth | >5kHz@>1W |
| AOM Tuning Range | >±5MHz@>1W |
| AOM Tuning Bandwidth | >500kHz@>1W |
| Linewidth (100us) | <15kHz@100mW / <5kHz@>1W |
| Beam Quality | M 2 <1.1 |
| PER | Linear, >20dB |
| Cooling | Air Cooling |
