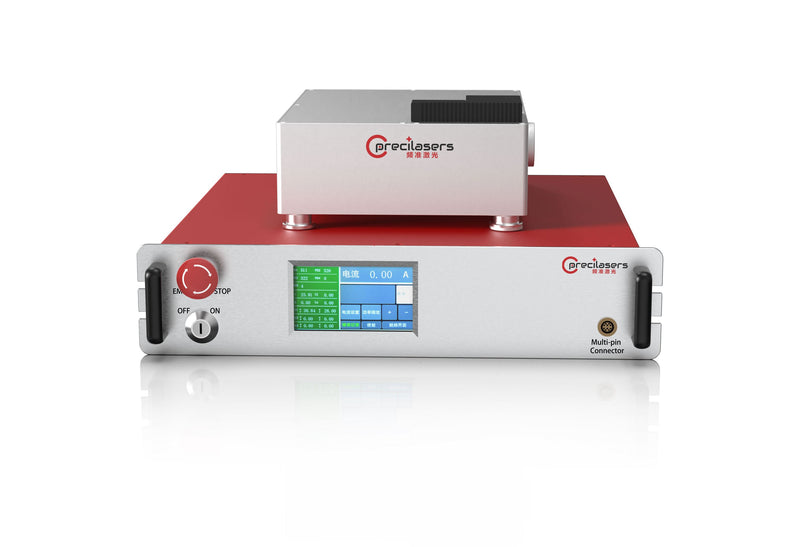

1013nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
1013nm Narrow linewidth laser Based on Ytterbium-doped fiber amplifier technique, Precilasers can provide 1013nm high power and low noise amplifier.
Features
- Low Intensity Noise Low
- Phase Noise Good Beam
- Quality
| Models | FA-SF-1013-Y-CW (1) |
|---|---|
| Range | 1012.5nm-1022.5nm / 1012.00nm-1014.00nm |
| Output Power | >0.1W/2W/10W/20W / >40W/80W/100W/130W/200W |
| Relative Intensity Noise | <0.05% (RMS, 10Hz-10MHz integration) |
| Power Stability | <0.75% @3hours, RMS |
| Power Tuning Range | 1-100% |
| Output Mode (2) | Single Mode PM Fiber with FC/APCconnector (Output Power≤2W) 0.6±0.2mm(Output Power≤30W) 1.7±0.2mm(Output Power>30W) |
| Beam Quality | TEM00, M²<1.1 |
| Polarization | Linear, >23dB |
| Seed Laser Input Power | ≥10mW (3) |
| Seed Laser Input Isolation | >25dB |
| Output Laser Isolation | >25dB |
| Cooling | Air Cooling(Output Power≤20W)/Water Cooling (All Output Power) |
| Temperature | 15-30 °C (Air Cooling) OR 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
