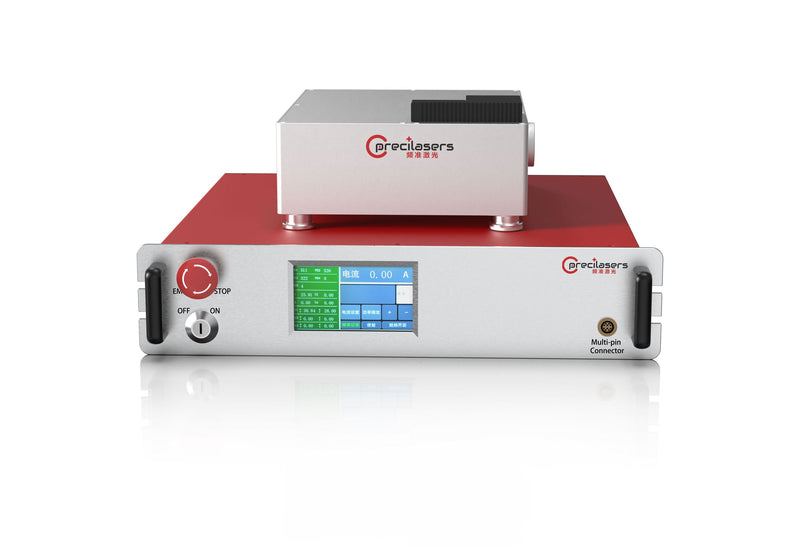

1064nm Narrow Linewidth Laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
1064nm Narrow Linewidth Laser Based on ytterbium-doped fiber laser and amplification technology, it can achieve 1064nm single-frequency laser output with a maximum output power of 200W. Meanwhile, it ensures extremely low intensity noise and phase noise of the output laser, featuring high power, low-noise amplification, ultra-fast seed cutoff protection, and other characteristics.
Features
- Narrow Linewidth Low Noise
- Ultra
- Stable Output Power Excellent
- Beam Quality Seed Power
- Cutoff Protection System
Applications
- Pump Source Optical Lattice
- Optical Tweezers Optical Trap
- Interferometry Holography Cold Atoms
- Precision Measurement Gravitational Wave
- Detection Li
| Models | FL-SF-1064-Y-CW (1) |
|---|---|
| Center Wavelength | 1064nm |
| Output power | 2W/10W/30W/50W/100W/130W/160W/200W |
| Seed laser type | Fiber DFB seed laser / Fixed external cavity diode laser |
| Linewidth(100us Integration Time) | <3kHz/5kHz / <10kHz/30kHz |
| Total tuning range (Temperature) | >0.7nm / >5GHz |
| Fast tuning bandwidth | >5kHz, PZT tuning / >1MHz, Current tuning |
| Fast tuning range | >3GHz/10GHz / >500MHz |
| AOM tuning bandwidth (optional) | >500kHz |
| AOM tuning range (optional) | >±5MHz |
| Relative intensity noise | <0.03% (RMS, 10Hz-10MHz integration) |
| Power stability | <0.75% @3hours, RMS |
| Power tuning range | 1-100% |
| Output mode | PM fiber with FC/APC connector (Power≤2W) OR Free space collimated output (For all power) |
| Beam diameter (2) | 0.6±0.2mm(Power≤30W), 1.7±0.2mm(Power>30W) |
| Pointing stability | <±2µrad/°C |
| Beam quality | TEM00, M²<1.1 |
| Polarization | Linear, >23dB |
| Output isolaton | >25dB |
| Cooling | Air cooling (Power≤20W)/Water cooling (For all power) |
| Temperature | 15-30 °C (Air cooling) OR 15-35 °C (Water cooling) |
| Power supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
