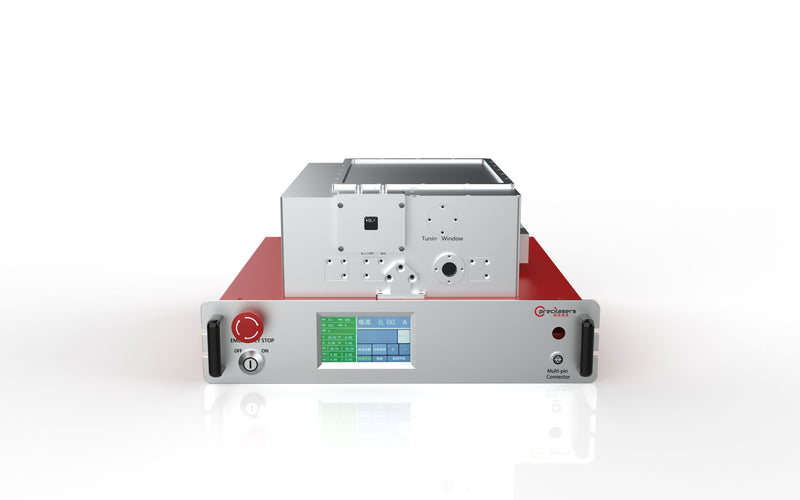

440-506nm Laser — Narrow Linewidth CW Laser
PL-NL-440-506Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
2.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
440-506nm Laser Based on high-power, low-noise fiber lasers amplification, sum-frequency technology and frequency doubling technology , Precilasers can provide high-power, narrow linewidth laser output with a wavelength ranging from 440 to 506nm.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High Temperature And Vibration
- Resistance
Applications
- Lithium Ion
- Calcium Ion
- Strontium Atom Cooling Quantum
- Simulation Bioscience Laser Spectrum
- Electromagnetic Induction Transparency
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength Range | 440-460nm / 460-475nm / 475-506nm |
| Typical Wavelength | 455nm / 461nm / 480nm |
| Seed Laser Type | Fiber DFB Seed Laser (1760-2024nm) |
| Output Power | >1W/6W / >2W/3W/6W / >2W/5W |
| Thermal Tuning Range | >0.25nm, Never Mode-hop |
| Output Mode | Free Space Output |
| Beam Diameter (2) | 0.7-1.0mm |
| Power Tuning Range | 10-100% |
| Beam Pointing Stability | <50µrad |
| Linewidth (3) (100us) | <40kHz |
| PER | linear,>20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | TEM00, M2<1.1 |
| Fast Frequency Tuning Range | >3GHz |
| Fast Frequency Tuning Bandwidth | >5kHz |
| AOM Tuning Range (Optional) | >±5MHz |
| AOM Tuning Bandwidth (Optional) | >500kHz |
| RIN | <0.3% (RMS,10Hz-100MHz) |
| Cooling | Air Cooling/Water Cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
